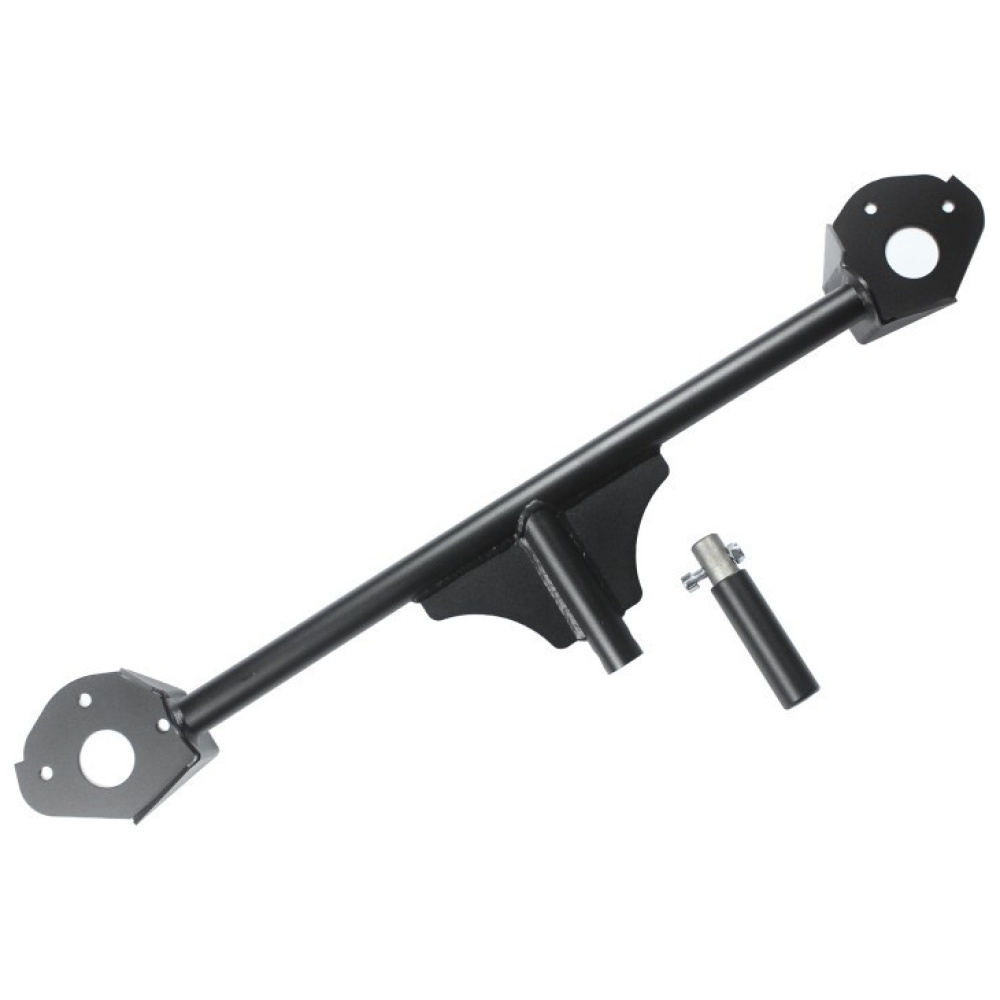

BMW E36 Compact Rear Strut Brace X-Brace 4-Point

This E36 Compact strut brace is an extended 4-point X-brace for the rear of the BMW E36 Compact. It connects the rear strut towers to each other and continues via an extra link piece to the mounting of the rear differential. This way you also reinforce that mounting point and improve the handling and safety of the car.

The E36 Compact strut brace is made of 40 x 2 mm tube, the type that is also used for roll cages. A logical upgrade for a Compact that is used on track or at drift events.

Key benefits of this E36 Compact strut brace

• 4-point X-brace: connects both strut towers and the differential mount
• Reinforces the differential mount via a separate link piece
• Better handling and more safety
• 40 x 2 mm tube, as used in roll cage construction
• MIG/MAG-welded in our own welding jigs by an experienced, certified welder
• Laser-cut brackets, bent on CNC press brakes, with pressed mounting holes
• Mounting bolts included
• Finished in black powder coating

Suitable for

BMW 3 Series E36 Compact

• BMW E36 Compact

This E36 Compact strut brace is made specifically for the rear of the Compact. It is not intended for the other E36 body styles.

Technical specifications

• Item number: 0237
• Type: extended 4-point rear strut brace (X-brace) with a link to the differential mount
• Material: tube 40 x 2 mm
• Welding method: MIG/MAG
• Brackets: laser-cut, bent on CNC press brakes, pressed holes
• Finish: black powder coating
• Contents: brace with mounting bolts
• Weight: 6.3 kg

Installation and delivery

To install the E36 Compact strut brace, you have to drill the mounting holes yourself. Photos are available that show where the brace goes, so that you put the holes in the right place. Mounting bolts are included. First remove the trim in the boot, so that you can get to the strut towers easily.

Use a sharp drill bit, deburr the holes and treat them against rust before you fit the E36 Compact strut brace. Tighten all bolts evenly and check them again after the first drives.

This brace is listed in the bash bars and jack points category. Do you also want to reinforce the floor at the subframe of your Compact? Then take a look at the subframe floor reinforcement for the E36 Compact.

Four mounting points instead of two: the rear of your Compact as one unit.

Why choose a 4-point X-brace?

A regular two-point brace only connects the strut towers. This X-brace also takes in the differential mount, so that the load from the rear axle is spread over more points. Thanks to the roll cage tube, the welding in fixed jigs and the pressed holes, the construction is sturdy and dimensionally accurate. An E36 Compact strut brace made for serious use.

Frequently asked questions

Does this brace fit an E36 saloon or coupé?

No. This E36 Compact strut brace is intended for the E36 Compact only.

Do I have to drill for the installation?

Yes, you have to drill the mounting holes yourself. Photos are available to help with the installation.

Are the bolts included?

Yes, the mounting bolts are included.

What is the brace made of?

40 x 2 mm tube, as used for roll cages, MIG/MAG-welded and black powder-coated.

Can I still use the boot afterwards?

The brace sits behind the rear seat between the strut towers. How much luggage space remains depends on your interior. In a stripped track car that is usually not an issue; in a road car it is wise to measure the space beforehand.

How heavy is the brace?

According to the specifications, the E36 Compact strut brace weighs 6.3 kg.
