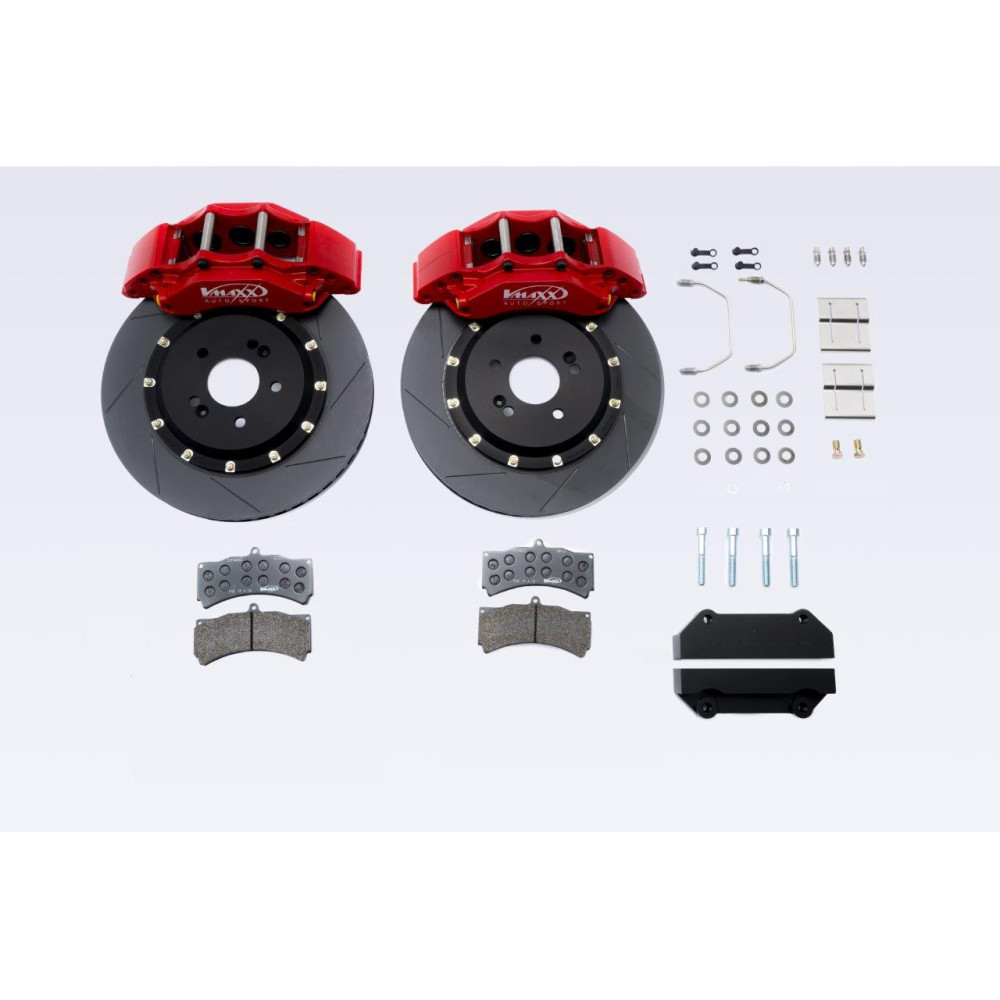

Audi Q3 F3 V-Maxx Big Brake Kit 365 mm 6-piston

For the Audi Q3 F3, this big brake kit Q3 F3 365 mm is the largest brake kit in the V-Maxx range: 365 mm two-piece brake discs with forged 6-piston calipers on the front axle. The kit fits all Q3 F3 versions from 77 to 228 kW with an aluminium steering knuckle, behind wheels from 19 inch.

The large disc increases the lever with which the brake pads work, and that results in more braking torque for the same pedal pressure. Together with the aluminium caliper, bracket and bell, which dissipate heat much faster than steel, the kit keeps braking consistently, even under repeated hard braking from high speed. For a powerful SUV, that is a substantial difference compared with the original brakes.

V-Maxx Autosport is a Dutch manufacturer and gives a 2-year warranty. The TÜV certificate according to §19.3 makes the kit suitable for public roads.

Key benefits

• 365 mm discs: the largest V-Maxx diameter for the Q3 F3
• 6-piston calipers made of forged aluminium
• More braking torque thanks to the long lever
• Two-piece, grooved discs made of high-carbon steel with ultralight floating aluminium bells
• Fast heat dissipation: aluminium conducts heat about 5 times better than steel, and the discs have directional cooling channels
• Application up to 228 kW, with TÜV according to §19.3
• Complete kit with V-Maxx sport brake pads with TÜV approval and adapters for the original brake hoses

Suitable for

Audi Q3 (F3) from 2018, with aluminium steering knuckle

• Audi Q3 (F3) with Ø55 mm front shock absorbers, from 07-2018: all versions from 77 to 228 kW
• Requirements: original brake discs of at least Ø288 mm at the front and Ø271 mm at the rear, an aluminium steering knuckle and a Ø55 mm shock absorber clamp

Minimum wheel size: 19 inch. Check with the fitment template (WFC) whether your wheels offer enough room for the caliper; a wheel spacer is sometimes required.

Technical specifications

• Manufacturer: V-Maxx Autosport (Netherlands)
• Part number: 20 AU365 04
• Version: for aluminium steering knuckle with Ø55 mm shock absorber clamp
• Brake discs: 365 mm, two-piece, grooved, high-carbon steel with floating aluminium bell
• Calipers: 6-piston, forged aluminium
• Brake pads: V-Maxx sport brake pads with TÜV approval
• Minimum wheel size: 19 inch
• Approval: TÜV §19.3
• Axle: front axle
• Included: calipers, brake discs with bells, brake pads, vehicle-specific adapters and fitting hardware

Fitting and delivery

Fit the kit according to the V-Maxx fitting instructions supplied, including the tightening torques. The kit is only suitable for cars with original steering knuckles, in this case the aluminium knuckle with Ø55 mm clamp. Clean the brake kit with mild soap, as wheel cleaner attacks the aluminium. For heavy track use, V-Maxx recommends removing the dust seals from the calipers.

Available as an option: V-Maxx Steelflex steel braided brake hoses for the front axle (620 mm, set of 2) with PTFE inner hose and TÜV approval, Ferodo brake fluid (500 ml) and a V-Maxx wear indicator set. Delivery time: 4 to 7 days.

A powerful Q3 F3 needs more than standard brakes: the 365 mm V-Maxx kit with forged 6-piston calipers delivers the largest braking reserve in the V-Maxx range for this car.

Why choose this big brake kit Q3 F3 365 mm?

If you drive your Q3 F3 on 19 inch wheels, this is the V-Maxx kit with the most braking capacity. You get the same application up to 228 kW as with the 355 mm kit, but with a larger disc and therefore more braking torque. The kit is supplied complete with sport brake pads and adapters, has TÜV approval for public roads and a 2-year warranty.

Frequently asked questions

How does it differ from the 355 mm kit for the Q3 F3?

The big brake kit Q3 F3 365 mm (20 AU365 04) has a larger disc and more braking torque and requires wheels of at least 19 inch. The 355 mm kit (20 AU355 04) already fits from 18 inch. Both have forged 6-piston calipers and the same application.

Does V-Maxx also have a kit for the rear axle?

No. V-Maxx only supplies kits for the front axle; about 90% of the braking power comes from the front axle.

Can I use the big brake kit Q3 F3 365 mm on the road?

Yes. The kit has a TÜV certificate according to §19.3. The kit also remains approved with an officially approved power upgrade; the kW limits in the application list refer to the original output.

What is the delivery time?

The delivery time is 4 to 7 days.
