BMW E36 Dual Caliper Brackets, Bolt-On Version for Hydraulic Handbrake

With these E36 dual caliper brackets you fit a second brake caliper to each rear wheel of your BMW E36, specifically for a hydraulic handbrake. This way the handbrake works through its own caliper, independently of your footbrake.

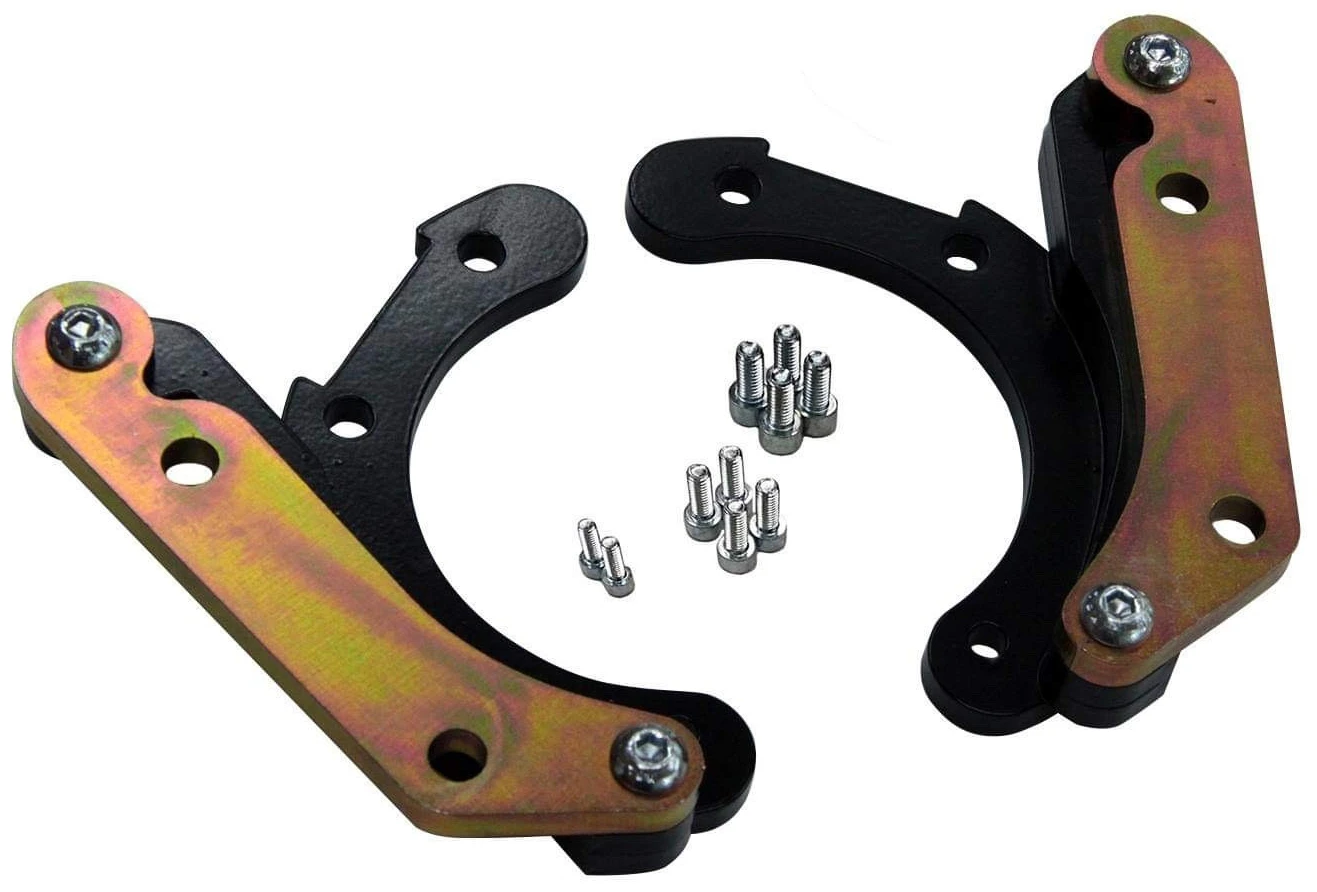

The set consists of two brackets, for left and right, and is bolted onto the control arm. No welding is required: you secure the bolts with threadlocker. The required bolts are included. Please note: these brackets require the rear axle ABS sensor to be removed. Suitable for the E36 with rear disc brakes, except the Compact.

Key benefits

• Bolt-on fitting to the control arm, with no welding.
• Bolt kit included for fitting.
• Separate caliper for the handbrake on both rear wheels.
• Footbrake and handbrake work independently of each other.
• Complete set for left and right.
• Made for drift, racing and rally.

Suitable for

BMW E36 with disc brakes on the rear axle

• BMW 3 Series E36, all versions except the Compact
• Cars on which the rear ABS sensor may be removed

Do you have an E36 Compact? Then take a look at our adapter set for the E30 and E36 Compact.

Technical specifications

• Part number: 0094
• Mounting: bolted to the control arm with threadlocker
• Included: 2 brackets (left and right) and the required bolts
• Rear ABS sensor: must be removed
• Weight: 1.72 kg

Fitting and delivery

First remove the ABS sensor on the rear axle. Then bolt the brackets onto the control arm and secure the bolts with threadlocker. On some control arm versions, the control arm or the bracket needs to be ground down slightly. If you use vented brake discs, the brake pads of the additional caliper may not contact the disc over its full surface. This does not affect how it works. If you are unsure about the fit or the parts you want to use, please contact us. The delivery time is 1 to 2 days.

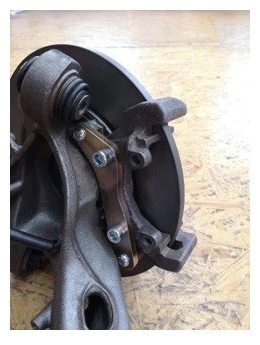

A second caliper per rear wheel for your handbrake, simply bolted onto the control arm.

Why choose these E36 dual caliper brackets?

If you want a hydraulic handbrake with its own calipers without welding, these brackets are the quickest route. They are secured with the supplied bolts, so you can also remove them again. The footbrake keeps working independently of the handbrake, exactly what you need to initiate a drift in a controlled way.

Frequently asked questions

Do I need to weld to fit these brackets?

No. The E36 dual caliper brackets are bolted onto the control arm, with threadlocker on the bolts.

Can I keep my rear ABS sensor?

No, these brackets require the rear axle ABS sensor to be removed. If you want to keep ABS, take a look at our caliper adapter with ABS, which is welded in.

Does this set fit the E36 Compact?

No, this set is for the E36 with rear disc brakes, except the Compact.

Are the bolts included?

Yes, the bolts you need for fitting are supplied.

What is the delivery time?

The delivery time is 1 to 2 days.
