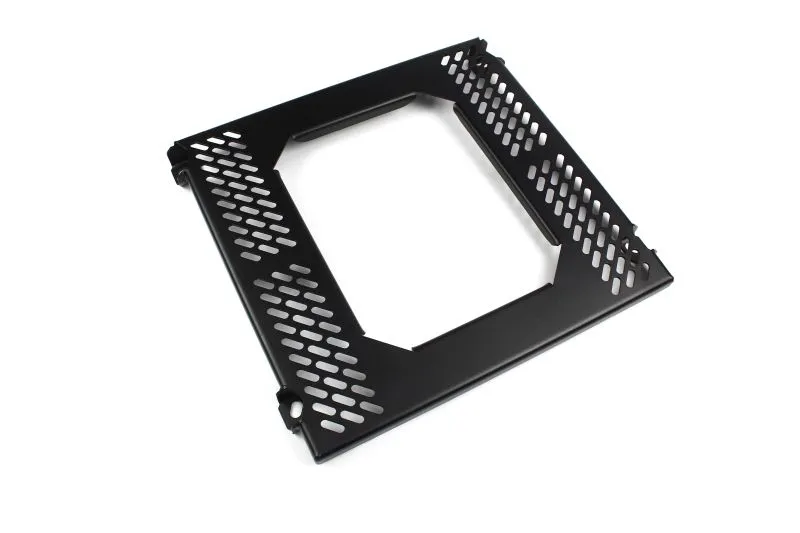

E36 E46 Platform V2 BMW Sports bucket seat mount

This E36 E46 seat platform is a steel base plate on which you mount a sports bucket seat in the BMW 3 Series E36, E36 Compact and E46. This is the new V2 version, made of 3 mm thick S355 steel and powder-coated black. Together with separate side brackets, the platform forms a complete seat installation, suitable for road cars with a bucket seat and for drift and track cars.

In the E36 and E46, it is important that the seat is neatly in line with the steering wheel. Thanks to the many mounting holes, you can slide the seat on this platform forwards or backwards and to the left or right until it is in exactly the right place.

Key benefits of the E36 E46 seat platform V2

• New V2 version of the steel seat platform
• Many mounting holes for adjustment forwards and backwards and left and right
• Seat centred in relation to the steering wheel
• 3 mm S355 steel, a strong structural steel
• Laser-cut and bent on CNC press brakes
• Powder-coated black
• Fits the side brackets in our range (available separately)

Suitable for

BMW 3 Series

• BMW 3 Series E36
• BMW 3 Series E36 Compact
• BMW 3 Series E46

Technical specifications

• Item number: 0185
• Type: steel platform (base) for a bucket seat, V2 version
• Material: S355 steel, 3 mm thick
• Production: laser-cut, bent on CNC press brakes
• Finish: black powder coating
• Adjustment: forwards and backwards and left and right via the mounting holes
• Contents: platform only, side brackets separate
• Weight: 3.4 kg

Installation and delivery

The E36 E46 seat platform V2 is the base under your bucket seat. You fix the side brackets on the platform, and the seat hangs on those brackets. By choosing which holes you use, you determine the position: further forwards or backwards for your leg length, and to the left or right so that you sit straight behind the steering wheel.

Take your time to determine the seating position before you fix everything for good: sit in the seat, check the distance to the pedals and steering wheel and see whether you can fasten the belts properly. Use sturdy bolts with locking nuts and check after the first track day that everything is still tight.

You will find all seat mounts in our bucket seat frames category. Matching side brackets include the lightweight FIA seat mount for sports bucket seats.

A bucket seat that sits exactly behind the steering wheel drives differently: tighter, calmer and with more feel.

Why choose the E36 E46 seat platform V2?

In the E36 and E46 in particular, it is difficult to get a bucket seat properly centred. This V2 platform solves that with a large number of mounting holes, while the 3 mm S355 steel provides a solid base. Combine it with the matching side brackets and you have a neat, adjustable seat installation.

Frequently asked questions

Are the side brackets included?

No, the E36 E46 seat platform V2 is supplied without side brackets. They are available separately.

Does the platform fit an E36 Compact?

Yes, the platform is suitable for the E36, the E36 Compact and the E46.

Can I adjust the seat?

Yes, with the many mounting holes you can position the seat further forwards or backwards and to the left or right.

What material is the platform made of?

The E36 E46 seat platform V2 is made of 3 mm thick S355 steel, laser-cut, CNC-bent and powder-coated black.

What is the difference from a universal seat bracket?

A universal bracket often puts the seat at an angle or off-centre. The E36 E46 seat platform V2 is made specifically for these BMWs and, with its rows of mounting holes, gives you plenty of room to position the seat straight behind the steering wheel. That way you sit in the right posture, even during long sessions on track.

What is the weight?

The E36 E46 seat platform weighs 3.4 kg.
