BMW E90 E92 E88 E87 FIA Seat Mount Platform

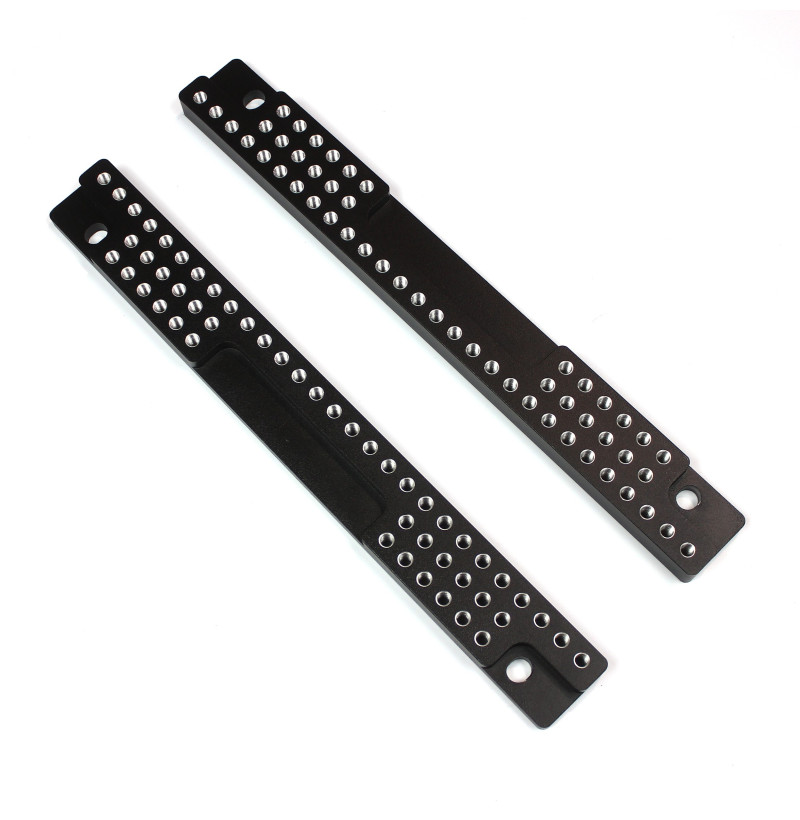

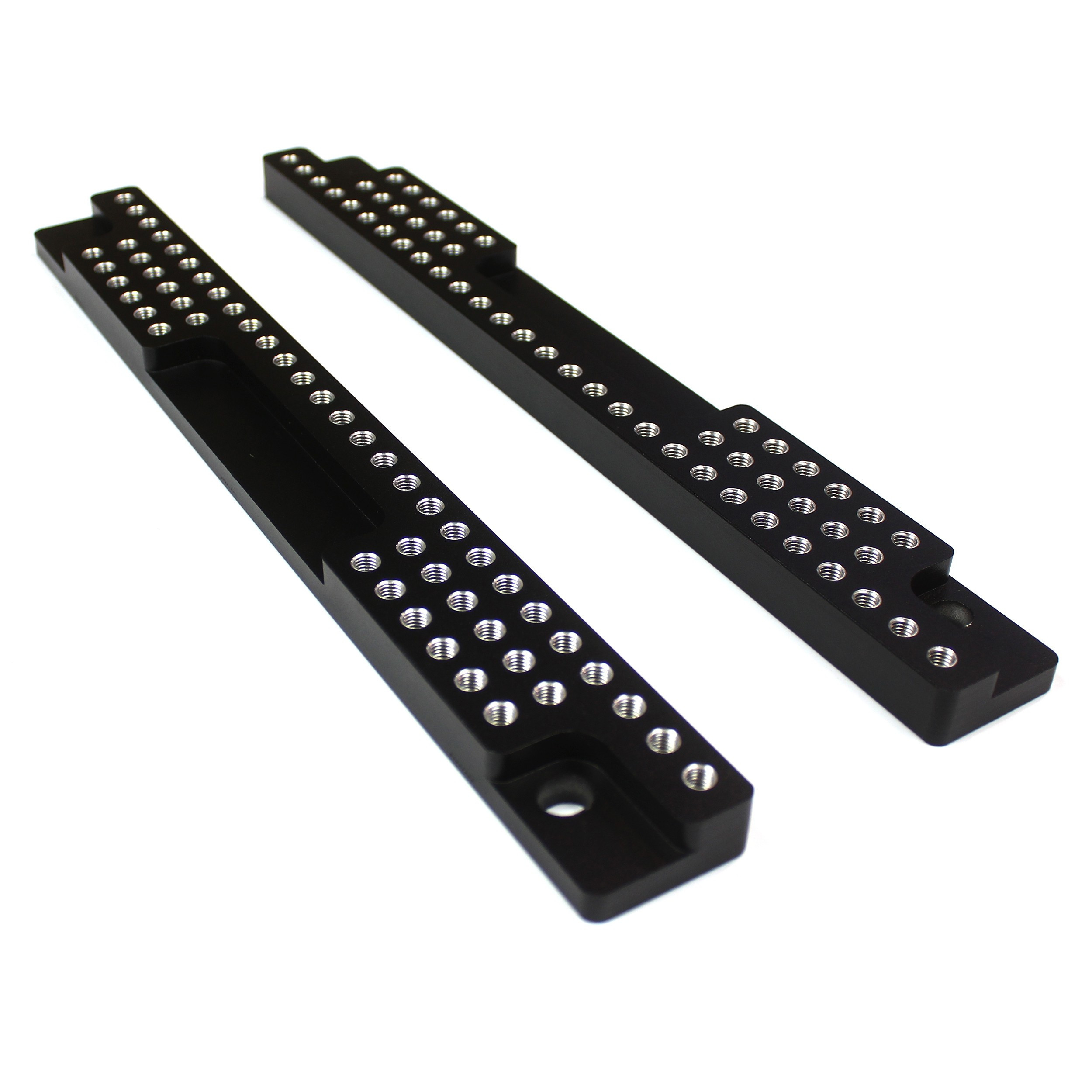

This BMW FIA seat mount is a platform of black anodised aluminium on which you mount a bucket seat in the BMW 1 Series and 3 Series of the E8x and E9x generation. The platform forms the base under the side mounts of the seat. Thanks to the many screw holes, you choose the position of the seat yourself.

You use this BMW FIA seat mount in cars for drifting, quarter-mile sprints, rally, time attack and track work. The platform is suitable for both the driver’s seat and the passenger seat.

Key benefits of this BMW FIA seat mount

• Light aluminium with a black anodised finish
• Numerous screw holes: the seat can move forwards, backwards, left or right
• Usable on the driver’s and passenger’s side
• Works with side mounts for a bucket seat (sold separately)
• For the 1 Series E82 and E88 and the 3 Series E90, E92 and E93
• Intended for motorsport and track cars

Suitable for

BMW 1 Series and 3 Series, E8x and E9x

• BMW 1 Series E82 coupé and E88 convertible
• BMW 1 Series E87 (mentioned in the manufacturer’s product name)
• BMW 3 Series E90 saloon
• BMW 3 Series E92 coupé and E93 convertible
• BMW 3 Series E91 Touring (mentioned in the manufacturer’s product name)

Technical specifications

• Item number: 0105
• Application: platform for mounting a bucket seat
• Material: aluminium
• Finish: black anodised
• Position: driver and passenger
• Adjustment: via the screw holes, lengthways and sideways
• Weight: 1.8 kg

Installation and delivery

The BMW FIA seat mount goes on the floor of the car. You attach the side mounts of the bucket seat to it, and the seat itself goes on those side mounts. First find a seating position in which you hold the steering wheel with slightly bent arms and can press the pedals all the way down. Then choose the holes that match that position.

Use bolts of a good strength class and tighten them to the correct torque. After the first track day, check again that everything is tight. If you combine the seat with a racing harness, also pay attention to the correct angle of the shoulder straps.

You will find suitable side mounts, for example, with the steel bucket seat mount. You will find more frames and platforms in the bucket seat frames category.

Lots of holes, little weight: that is how you put a bucket seat exactly where it belongs.

Why choose this BMW FIA seat mount?

With a bucket seat, everything revolves around the right position and a solid base. This BMW FIA seat mount gives you both. The aluminium platform keeps the weight low, the anodised finish looks neat and with the many holes you adjust the seat to your height. Even if another driver drives the car, you can easily move the seat.

Frequently asked questions

Is this BMW FIA seat mount FIA-homologated?

FIA comes from the manufacturer’s product name. No certificate or homologation number is stated. If you need one for your regulations, please contact us.

Does the platform fit an E87 or E91?

The manufacturer mentions E87 and E91 in the product name, but the compatibility list includes E82, E88, E90, E92 and E93. If you are unsure, ask us before you order.

Are the side mounts included?

No, they are sold separately.

Can I use the platform on the passenger side?

Yes, it is suitable for the driver and the passenger.

How heavy is the platform?

It weighs 1.8 kg. Thanks to the aluminium, the BMW FIA seat mount stays light, which always counts in a motorsport car.

Can I move the seat later?

Yes. You loosen the bolts, choose other holes and fix the side mounts again.
