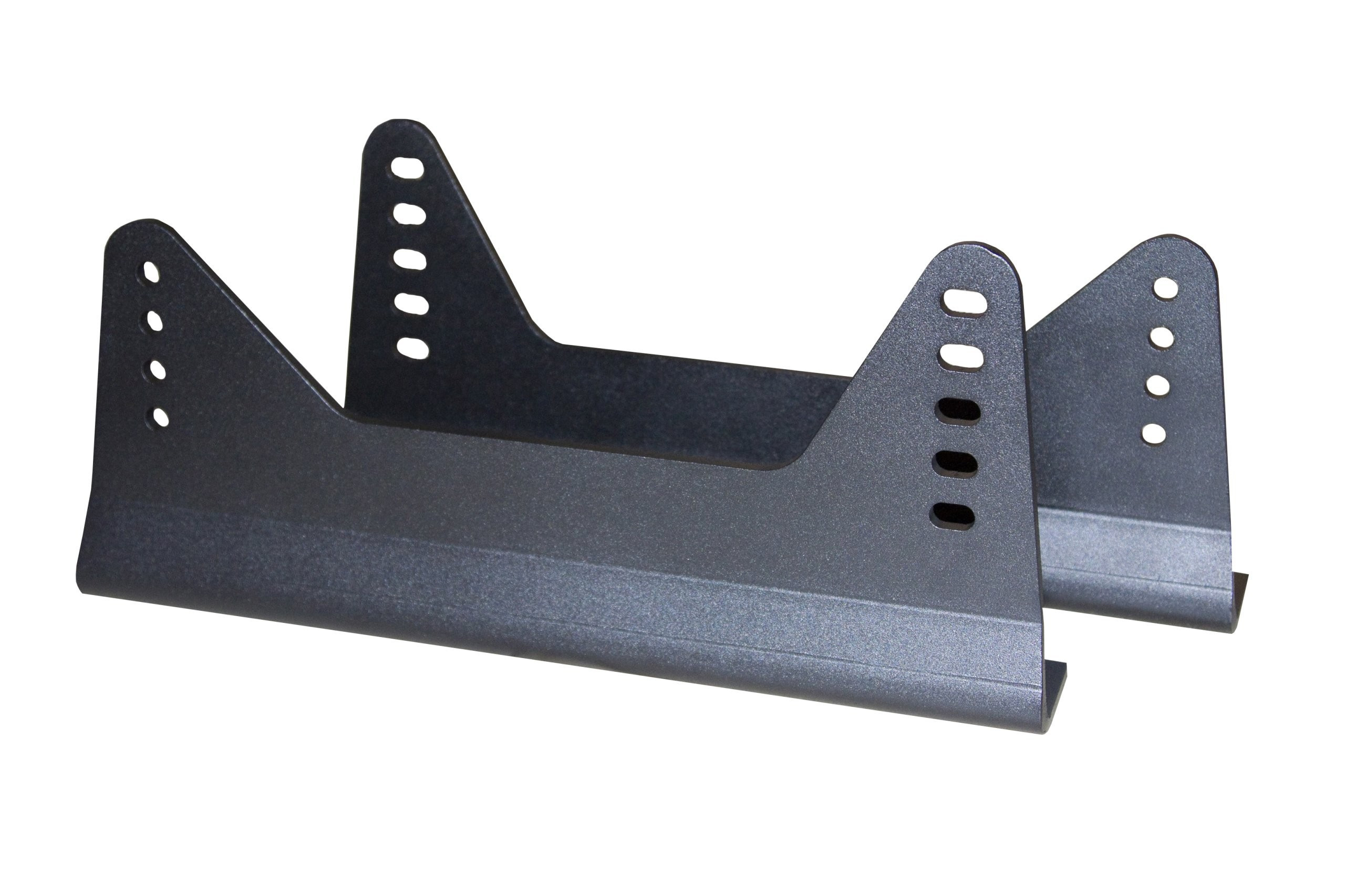

Lightweight Aluminium FIA Bucket Seat Mount

This aluminium bucket seat mount consists of two light side brackets with which you fit a bucket seat in your car. The brackets are made of 6 mm thick aluminium and weigh about 800 grams each. They are produced according to FIA Appendix J and intended for motorsport and track cars.

If you are building a car in which every kilo counts, such as a drift car, rally car or time attack car, you do not want heavy steel brackets under your seat. With this aluminium bucket seat mount you keep the weight down, while the seat stays firmly in place.

Key benefits of this aluminium bucket seat mount

• Light: about 800 grams per bracket, 1.64 kg per set
• 6 mm thick aluminium for sufficient strength
• Made according to FIA Appendix J and meets the FIA requirements
• Bent on CNC press brakes for an accurate shape
• Pre-drilled mounting holes for adjusting height and angle
• Black powder-coated, blends in neatly with the interior
• Tested in drift and rally

Suitable for

Universal for side-mount bucket seats

• A bucket seat that is mounted at the sides
• Drift, rally, time attack, quarter mile and track cars
• Mounting on the floor, on seat rails or on a seat platform

Technical specifications

• Item number: 0016
• Contents: 2 side brackets, enough for one seat
• Material: aluminium, 6 mm thick
• Weight: about 800 g per bracket, 1.64 kg per set
• Processing: bent on CNC press brakes
• Standard: made according to FIA Appendix J
• Colour: black, powder-coated

Installation and delivery

You bolt the brackets to both sides of the bucket seat and then fix them to the floor, the seat rails or a seat platform. With the holes in the brackets you choose the height and the angle of the seat. Use bolts of a good strength grade with washers, so that the load is spread well over the aluminium, and check after tightening that the seat cannot move anywhere.

If you drive a BMW E30, E36 or E46, you can combine the brackets with an aluminium seat platform. That lets you also move the seat forwards, backwards and sideways, so that you sit exactly behind the steering wheel.

See all frames and platforms in our bucket seat mounts category. If you prefer steel, there is the 3 mm steel bucket seat mount.

Less weight under your seat, without compromising on a firm seating position.

Why choose this aluminium bucket seat mount?

Because with this aluminium bucket seat mount you save weight in a place where you would not expect it. The brackets are simple in design, sturdy thanks to the 6 mm thick aluminium and made according to the FIA rules. They have been tested in drift and rally and fit almost any car in which you want to install a side-mount bucket seat.

Frequently asked questions

How much does the aluminium bucket seat mount weigh?

About 800 grams per bracket. The complete set of two weighs 1.64 kg.

How many brackets do I get?

Two, enough for one seat.

Is this mount FIA-compliant?

The brackets are made according to FIA Appendix J and meet the FIA requirements. Always check the regulations of your own class as well.

How thick is the aluminium?

The aluminium is 6 mm thick.

What is the difference with the steel version?

The steel set is made of 3 mm steel and is heavier. This aluminium bucket seat mount is lighter and therefore popular in cars where every kilo counts.

Does this fit my seat platform?

The brackets have a row of pre-drilled holes and are bolted to a floor, rails or platform. If you are not sure whether the holes line up with your platform, just send us a message with the dimensions.
