Hydraulic Handbrake Mounting Bracket Passenger

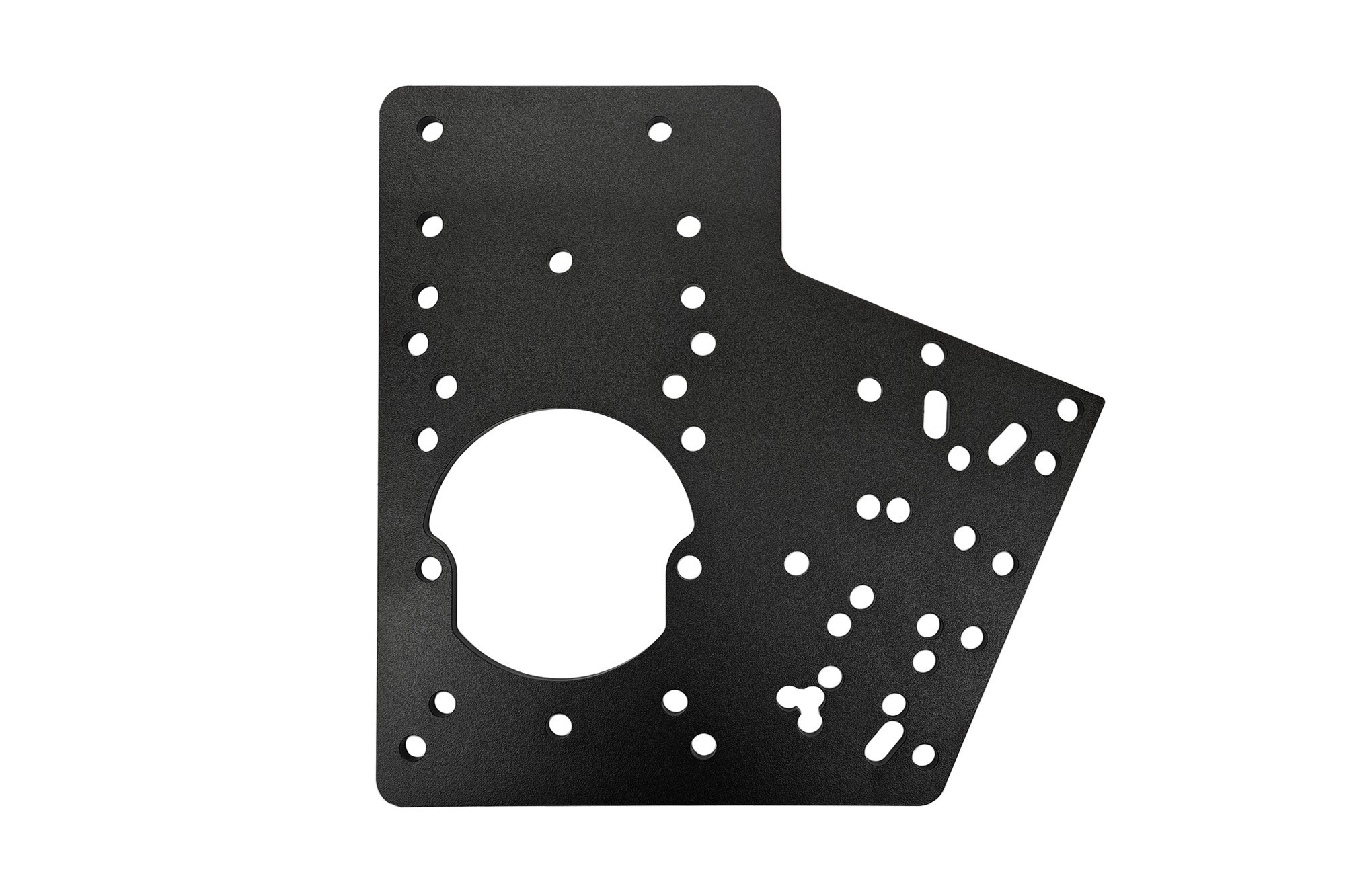

This hydraulic handbrake mounting bracket is a black base plate made of 5 mm steel that lets you fit a hydraulic handbrake firmly on the centre tunnel. The plate sits around the gear lever, places the handbrake next to the gear lever on the passenger side and fits all BMW tunnels, from the E30 to the E90, E92 and E93. No welding is needed: the plate already has the mounting holes.

If you are building a drift or rally car, you want a handbrake that does not flex when you pull it hard. Screwing a loose lever directly onto the thin sheet metal of the tunnel does not work well. This base plate gives the handbrake, and a shifter too if required, a flat and rigid foundation.

Key benefits of this hydraulic handbrake mounting bracket

• No welding: the plate is bolted on, so installation is simple
• 5 mm thick steel, so a rigid base that does not flex
• Pre-drilled mounting holes for handbrake, shifter and tunnel
• Suitable for all handbrake and shifter types from the same product line
• Fits all BMW centre tunnels
• Thanks to the simple design, often also usable in other car makes
• Neatly finished in black

Suitable for

BMW 3 Series, all generations with a comparable centre tunnel

• BMW 3 Series E30
• BMW 3 Series E36 and E36 Compact
• BMW 3 Series E46
• BMW 3 Series E90, E92 and E93
• Other makes: often possible thanks to the simple shape, but do check the tunnel beforehand

Technical specifications

• Item number: 0092
• Application: base plate for mounting a hydraulic handbrake on the centre tunnel
• Position: next to the gear lever, passenger side
• Material: steel
• Thickness: 5 mm
• Colour: black
• Fitting: bolted on via the existing mounting holes, no welding
• Weight: 1.58 kg

Installation and delivery

Remove the centre console and the carpet around the tunnel so that you are working on the bare sheet metal. Place the plate in position next to the gear lever, mark the holes and bolt it down with sturdy bolts, washers and locking nuts. Then fit the hydraulic handbrake on the plate and, if you use one, the shifter.

A hydraulic handbrake mounting bracket that is properly secured stops the lever from wobbling when you give it a hard pull, and stops the tunnel sheet metal from cracking over time. So do not use bolts that are too small, and fit large washers on the underside.

When drilling, watch out for lines and cables under the tunnel. After fitting, connect the brake lines and bleed the system carefully. After the first test drive, check that all bolts are still tight.

Also take a look at our complete handbrakes and individual parts in the hydraulic handbrake category. If you would rather have the handbrake on the driver’s side, take a look at the mounting plate for the driver’s side.

A handbrake is only as strong as the plate it stands on.

Why choose this hydraulic handbrake mounting bracket?

A solid hydraulic handbrake mounting bracket makes the difference between a handbrake that responds immediately and a lever that makes the tunnel sheet metal flex with every pull. With 5 mm steel, ready-made holes and a shape that fits every BMW tunnel, you save yourself the measuring and welding of a home-made plate.

Frequently asked questions

Do I need to weld to fit this plate?

No. This hydraulic handbrake mounting bracket has mounting holes and is bolted onto the centre tunnel.

Which handbrakes fit this base plate?

The hydraulic handbrake mounting bracket is made for all handbrake and shifter types from the same product line. If you are unsure about a handbrake from another brand, send us the dimensions of its base.

Does this plate also fit an E90 or E92?

Yes. It fits all BMW tunnels, so also the E90, E92 and E93, as well as the E30, E36 and E46.

Can this plate also be used in a road car?

The plate is only the solid base for the lever. Whether a hydraulic handbrake is permitted on public roads depends on how it is connected to the brake system and on the roadworthiness inspection rules.

How thick and how heavy is the plate?

This hydraulic handbrake mounting bracket is made of 5 mm steel and weighs 1.58 kg.

Can I also fit a shifter on it?

Yes, the plate is suitable for the handbrakes and shifters from the same product line.
