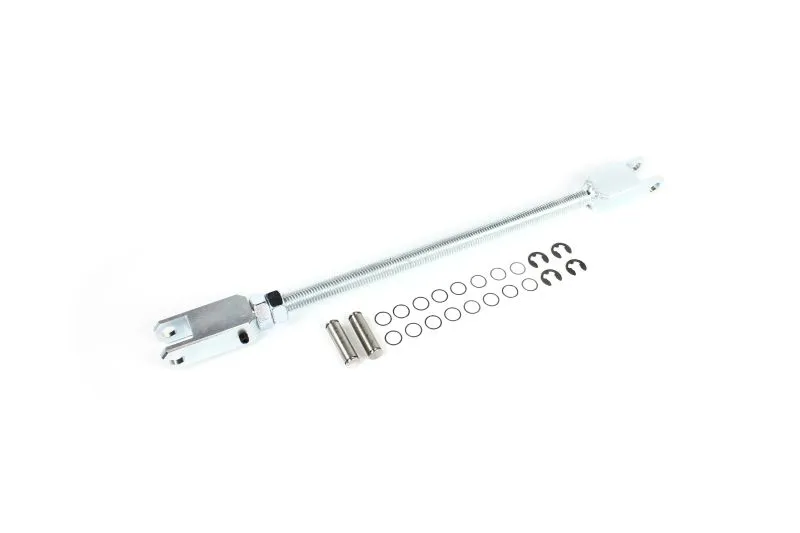

Adjustable Gearbox Shift Mechanism BMW Swap E30 E36 E46 E92 E90 E82

This adjustable shift mechanism is a universal shift rod for BMW manual gearboxes: the connection between the gearbox and the gear lever. Because the rod is long enough for almost any model and any swap, you shorten it to the length your car needs. That way, after an engine or gearbox swap, you once again get a shift that feels tight and precise.

Especially in swap projects, the original rod often no longer fits, for example when a different gearbox sits in the tunnel. In that case, an adjustable shift mechanism that you make to size yourself is a lot handier than cutting and welding an original part. It is also a neat replacement on a car whose old rod has developed play.

Key benefits of this adjustable shift mechanism

• Universal for BMW manual gearboxes and swap projects
• Can be cut to length: you shorten the rod to suit your car
• More precise shifting than with a worn or modified original rod
• Fully CNC-made, so precise clevises and thread
• Zinc-plated steel that resists rust better
• A good addition to a short shifter, which you buy separately

Suitable for

BMW models with a manual gearbox and swap projects

• BMW 3 Series E30
• BMW 3 Series E36 and E36 Compact
• BMW 3 Series E46
• BMW 3 Series E90, E92 and E93
• BMW 5 Series E39
• Other BMW swaps where the rod is shortened to size, such as in an E82

Technical specifications

• Item number: 0209
• Type: adjustable shift rod between gearbox and gear lever
• Material: zinc-plated steel
• Production: made entirely on CNC machines
• Length: long version, can be shortened to the required length
• Weight: 0.80 kg

Installation and delivery

The adjustable shift mechanism takes the place of the original shift rod between the gearbox and the gear lever. First measure how long it needs to be in your car, with the gear lever in neutral. Then shorten the threaded end, set the clevises at the correct distance and lock everything securely. Deburr the cut end so that the thread stays clean. If you work under the car, always put it safely on axle stands.

After fitting, check that you can engage all gears smoothly, also with the engine running. You will find a matching gear lever in our short shifters, clutch and flywheel category. More parts around the gearbox are listed under gearbox.

One rod that you make to size, instead of cutting and welding an original part.

Why choose an adjustable shift mechanism?

In a swap, it is difficult to find an original shift rod that fits exactly. With this adjustable shift mechanism you solve that in one go. It is fully CNC-made, zinc-plated and made so long that it can be used in almost any BMW project. Together with a short shifter, you get a short, direct shift.

Frequently asked questions

What exactly is this?

It is a shift rod: the connection between the gearbox and the gear lever of a BMW with a manual gearbox.

Do I have to shorten the rod?

Usually, yes. The rod has deliberately been made long so that it fits almost any model and any swap. You shorten it to the length your car needs.

Is a gear lever included?

No. This adjustable shift mechanism is just the rod. You buy a short shifter separately.

What material is the rod made of?

Zinc-plated steel, made entirely on CNC machines. The zinc plating protects the steel against rust.

Can the rod also be used without a swap?

Yes. On a car with the original gearbox it can also replace a worn rod, as long as you bring it to the correct length.
