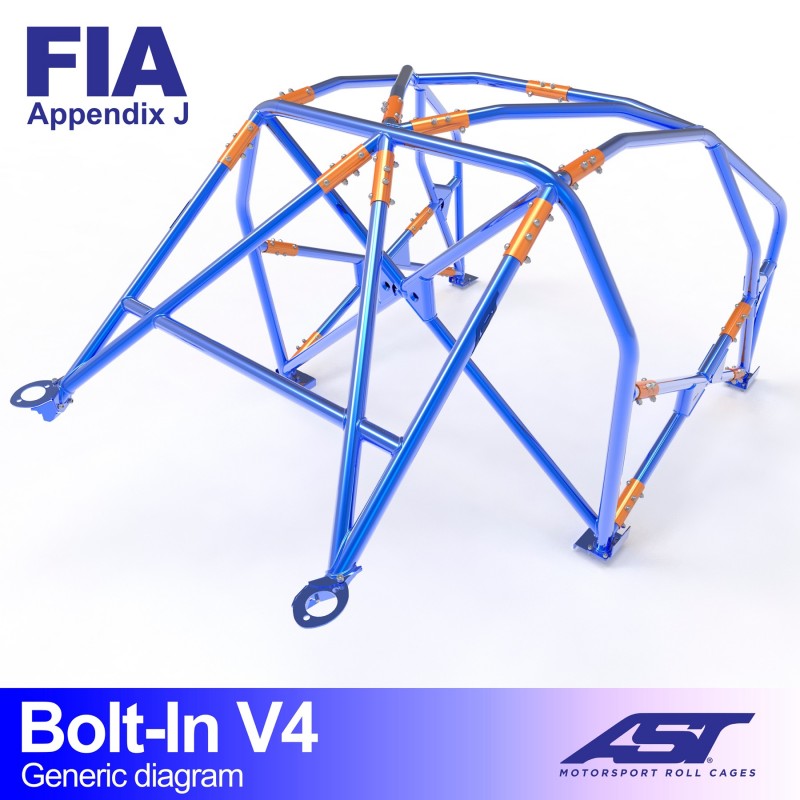

AST Bolt-in Roll Cage BMW 2002 V4

The AST Bolt-in Roll Cage BMW 2002 V4 is a full roll cage for the BMW 2002 with 2-door coupé bodywork. This Bolt-in BMW 2002 V4 is the most comprehensively equipped bolt-in version for this chassis and is secured with six bolts on six foot plates that are welded to the bodyshell.

The cage is designed and built by AST Roll Cages in Spain, for teams and drivers who compete with a classic 2002 and do not want to make any compromises on the safety structure.

Key benefits

• Highest specification level within the bolt-in range for the 2002.
• Six bolting points on six foot plates welded to the bodyshell, for the most rigid possible connection to the chassis.
• E355 steel with a 45 mm main hoop and the rest of the structure in 40 mm diameter.
• Reinforcement plates included, so that the loads are spread evenly across the sheet metal.
• Laser scan and 3D design for each car, not universal bent tubing.
• Can be taken apart via connecting sleeves, which is practical for fitting and overhauls.
• FIA homologation numbers: 5258, 5331, 1550, 5445 and 1663 (as stated by AST Roll Cages, for the BMW 2002, 2002 ti, 2002 tii and 2002 Turbo).

Suitable for

BMW 2002 (E10), 2-door Coupé

• BMW 2002 E10 2-door Coupé
• Type: full roll cage, version V4
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN05305
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, bolt-in on welded foot plates
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 6 bolting points on 6 foot plates welded to the bodyshell
• Weight: 210 kg (manufacturer’s figure)
• Finish: welded and unpainted, split into sections via connecting sleeves
• Homologation: FIA homologation numbers 5258, 5331, 1550, 5445 and 1663 (as stated by AST Roll Cages, for the BMW 2002, 2002 ti, 2002 tii and 2002 Turbo)
• Included: welded structure, connecting sleeves, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. At this specification level the fitting is at its most involved, so expect a stripped interior and a welder who attaches the foot plates neatly to the bodyshell. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that it fits your car exactly.

The most complete bolt-in structure AST designs for the classic 2002.

Why choose this Bolt-in BMW 2002 V4 roll cage?

Anyone building a 2002 for serious competition starts with the safety structure and builds the rest around it. This version offers the highest level of protection within the bolt-in range, while benefiting from the same scanning method as the lighter versions. So you get a heavy cage that still fits neatly into the cramped interior of the 2002.

Frequently asked questions

Why choose the heaviest version?

The Bolt-in BMW 2002 V4 is intended for competitions where the regulations or your own requirements call for the most complete structure. If you mainly do track days, a lower-spec version is usually perfectly adequate.

How much does the cage weigh?

AST quotes a manufacturer’s figure of 210 kg for this version. That is the stated figure for this product line and not necessarily the weight you will see on the scales after fitting.

Is this cage homologated?

AST Roll Cages lists the FIA homologation numbers 5258, 5331, 1550, 5445 and 1663 for the BMW 2002, 2002 ti, 2002 tii and 2002 Turbo. Always check the applicable regulations of your organiser.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
