AST Bolt-in Roll Cage BMW E21 Coupé V2

The AST Bolt-in Roll Cage BMW E21 Coupé V2 is a full roll cage for the BMW 3 Series E21 with 2-door coupé bodywork. This Bolt-in E21 Coupé V2 is the basic cage extended with front reinforcement bars that continue to the bulkhead, so that the front structure of the small coupé becomes part of the load-bearing structure.

The cage is designed and built by AST Roll Cages in Spain, for drivers who want more rigidity than the basic version offers and who regularly take their E21 on track or rallying.

Key benefits

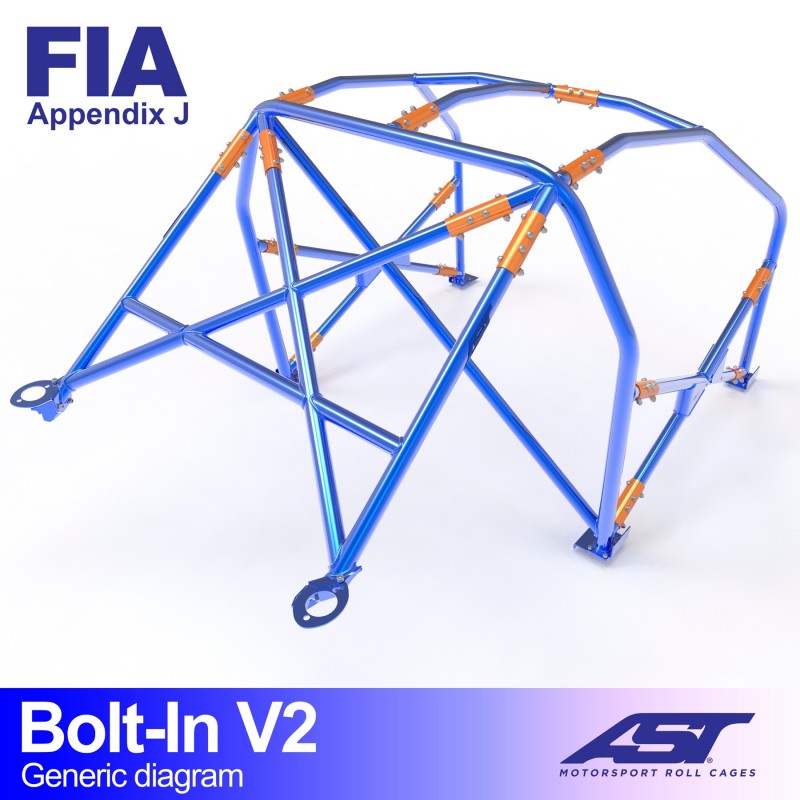

• Front reinforcement bars to the bulkhead, the difference from the basic version.
• Stiffer front structure, making the steering feel of the light E21 calmer and more predictable.
• Six bolting points on six 3 mm steel foot plates welded to the bodyshell.
• E355 steel: main hoop 45 mm, rest of the structure 40 mm.
• FIA homologation according to AST: A-5623, A-5620, A-5100, A-5093 and A-5014, valid for the BMW 316, 320, 320i, 320/6 and 323i.
• Chassis-specific fit thanks to a laser scan of the E21 bodyshell and a 3D design.
• Complete package with connecting sleeves, reinforcement plates, mounting hardware, instructions and a sticker set.

Suitable for

BMW 3 Series E21, 2-door Coupé

• BMW 3 Series E21 (1975 to 1983), 2-door Coupé
• Type: full bolt-in roll cage, version V2
• FIA homologation as stated by AST applies to the BMW 316, 320, 320i, 320/6 and 323i
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN06864
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: at the wheel arch
• Rear structure layout: X design
• Type: full roll cage, bolt-in, split into sections via connecting sleeves
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 6 bolting points on 6 foot plates welded to the bodyshell
• Extra compared with V1: front reinforcement bars to the bulkhead
• FIA homologation numbers: A-5623, A-5620, A-5100, A-5093 and A-5014 (as stated by AST Roll Cages, for the BMW 316, 320, 320i, 320/6 and 323i)
• Weight: 210 kg (manufacturer’s figure)
• Finish: welded and unpainted, in sections via connecting sleeves
• Included: welded structure, connecting sleeves, reinforcement plates, bolts, washers, nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. Plan the front bars in advance around your dashboard and wiring, as they run all the way to the bulkhead. The six foot plates are welded to the bodyshell and the structure is then bolted in place. AST digitises the bodyshell with laser scanners and designs the cage in 3D so that it fits your car exactly.

With the bars to the bulkhead, the E21 Coupé goes from being a car with a roll cage to a car with a load-bearing frame.

Why choose this Bolt-in E21 Coupé V2 roll cage?

The gain with this version is at the front of the car. Extending the bars to the bulkhead noticeably increases the torsional rigidity of the front structure, and on a light classic like the E21 you feel that straight away in the steering. For anyone on track more than a few times a year, this is where the extra cost over the basic version pays for itself.

Frequently asked questions

What is the difference from version V1?

This Bolt-in E21 Coupé V2 has the same main hoop and braces as the basic version, plus front reinforcement bars running to the bulkhead. That makes the front structure stiffer.

Is the cage guaranteed to fit my car?

AST digitised the E21 bodyshell with laser scanners and designed the cage in 3D around that scan, including the 3 mm foot plates, which are cut to size. The cage is supplied unpainted, so you can still make adjustments during test-fitting.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
