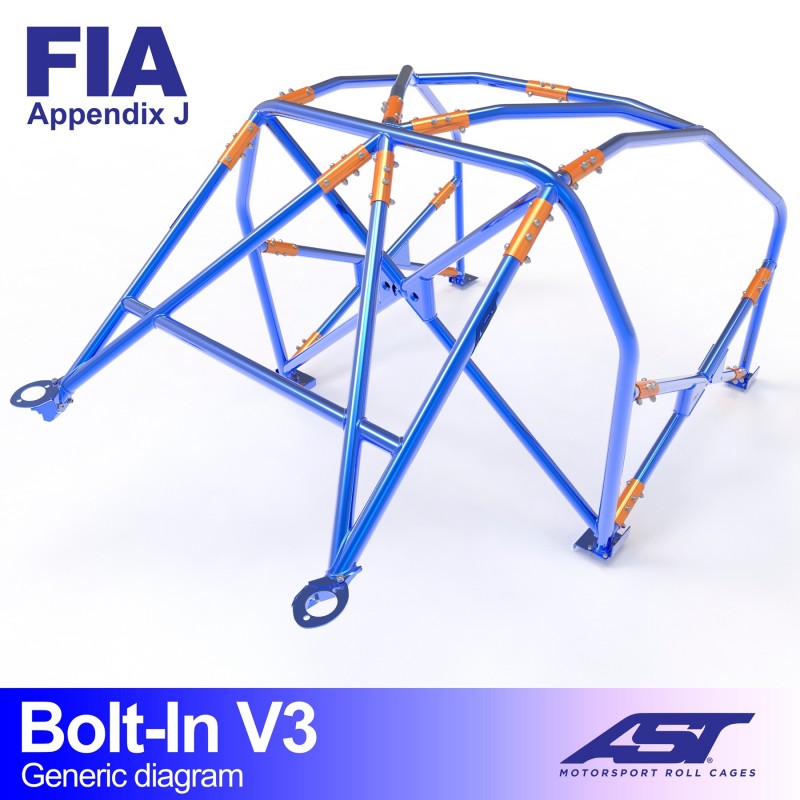

AST Bolt-in Roll Cage BMW E30 Sedan AWD V3

The AST Bolt-in Roll Cage BMW E30 Sedan AWD V3 is a full roll cage for the all-wheel-drive BMW 3 Series E30, the 325iX, with 4-door saloon bodywork. In addition to the front reinforcement bars, this Bolt-in E30 Sedan AWD V3 also has door bars in both doors and is designed for the all-wheel-drive E30 (325iX).

The cage is designed and built by AST Roll Cages in Spain, for 325iX drivers who compete and for whom side protection is just as important as rollover protection.

Key benefits

• Door bars on the left and right: they stop the door from intruding into the cabin on contact with a wall, the edge of the track or another car.
• Front reinforcement bars: the structure extends to the bulkhead and ties in the heavily loaded front end of the 325iX.
• Specifically for all-wheel drive: designed around the different floor and transmission tunnel of the all-wheel-drive E30.
• FIA homologation: AST states homologation number 5348, valid for the BMW 325iX according to FIA Appendix J.
• Six bolting points: bolted onto six foot plates in 3 mm steel that are welded to the bodyshell.
• E355 tubes: 45 mm main hoop, 40 mm for the rest of the structure.
• Complete and unpainted: including connecting sleeves, reinforcement plates, bolts, washers, nuts, documentation, fitting instructions and a sticker set.

Suitable for

BMW 3 Series (E30), 4-door saloon, all-wheel drive (325iX)

• BMW 3 Series (E30) 4-door saloon with all-wheel drive, the 325iX
• Expressly not for the rear-wheel-drive E30; a separate RWD version is available for that model
• Type: bolt-in roll cage, version V3
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN05113
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, bolt-in on welded foot plates
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 6 bolting points on 6 foot plates welded to the bodyshell
• Weight: 210 kg (manufacturer’s figure)
• Homologation: FIA homologation number 5348, valid for the BMW 325iX under FIA Appendix J
• Finish: welded and unpainted, split into sections via connecting sleeves
• Included: welded structure, connecting sleeves, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. The door bars make getting in and out tighter, so decide on the position of your bucket seat and the door card beforehand. The six foot plates are welded to the bodyshell, and only once they are secured is the cage bolted onto them.

Rallying and gravel mean contact from the side, and that is exactly where the door bars of the V3 do their job.

Why choose this Bolt-in E30 Saloon AWD V3 roll cage?

A 325iX is often used on surfaces where it is easier to slide sideways off the road. Door bars absorb that impact before the bodywork is pushed inwards. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so the bars sit as close to the door as possible while you can still get in and out of the car.

Frequently asked questions

Can I fit this cage in a rear-wheel-drive E30?

No. The Bolt-in E30 Sedan AWD V3 is made for the all-wheel-drive E30 (325iX) and follows the floor and transmission tunnel of that version. For a rear-wheel-drive E30 saloon, order the RWD version.

How reliable is the fit?

AST scans the bodyshell with laser scanners and then designs the cage in 3D for exactly this 325iX bodyshell. As a result, the tubes run tightly along the pillars and there is no need for trial fitting and cutting on site.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
