AST Bolt-in Roll Cage BMW E36 Touring V3

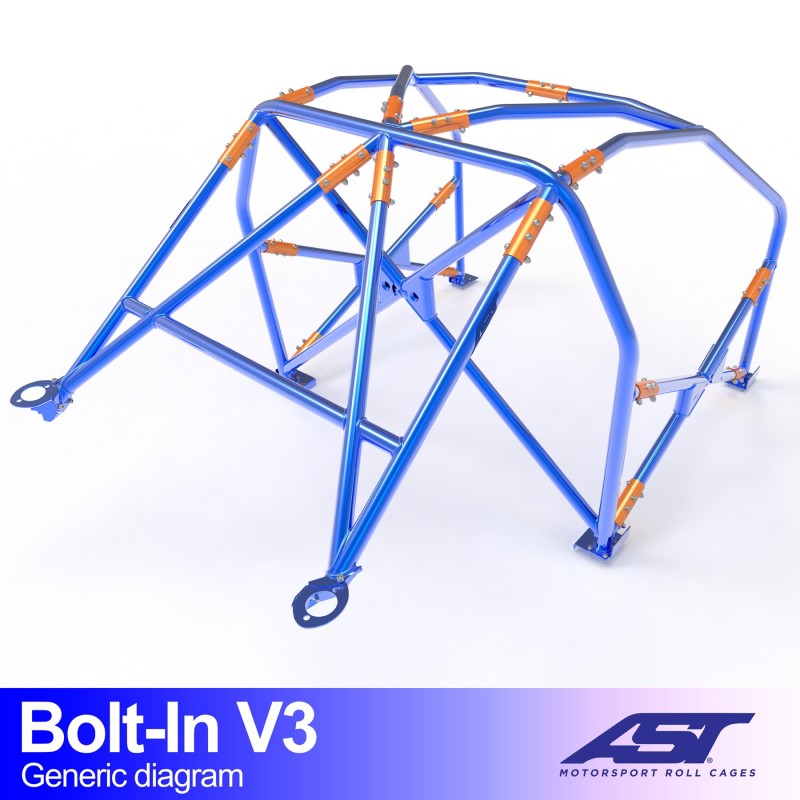

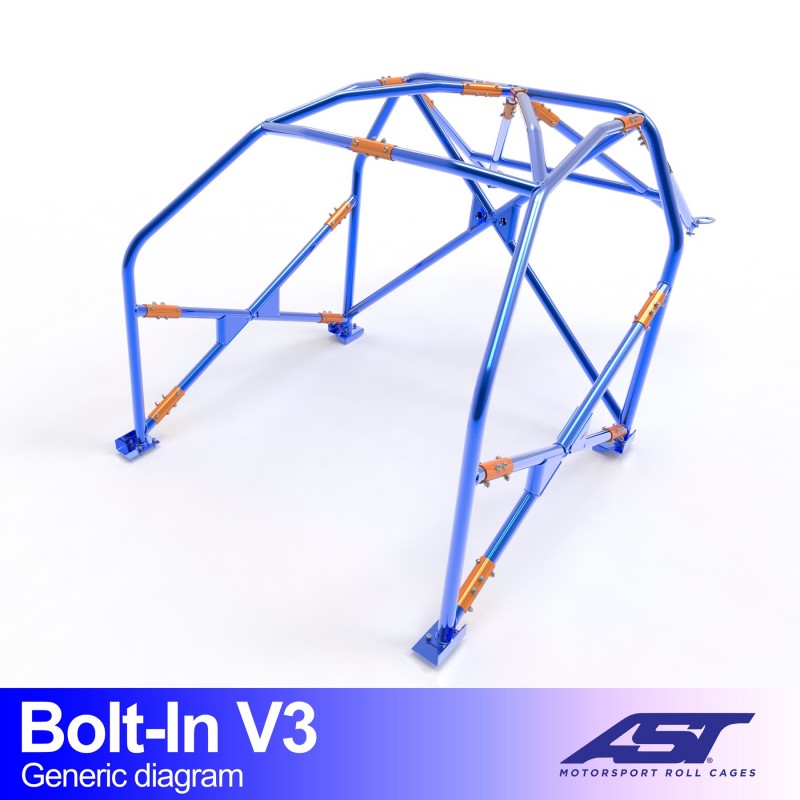

The AST Bolt-in Roll Cage for the BMW E36 Touring V3 is a full roll cage for the BMW 3 Series (E36) with 5-door Touring bodywork. This Bolt-in Touring V3 adds door bars for extra side protection and remains fully removable via FIA connecting sleeves.

The cage is designed and built by AST Roll Cages in Spain, for drivers who do serious track or drift work but do not want a permanent cage in the car.

Key benefits

• Full roll cage covering the front and rear compartments
• Door bars for protection in a side impact
• 6 mounting points with FIA connecting sleeves, fully removable
• Tailor-made specifically for the E36 Touring (5-door)
• Supplied unpainted, including mounting hardware

Suitable for

BMW 3 Series (E36), 5-door Touring

• BMW E36 Touring (5-door)
• Type: bolt-in roll cage, version V3
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN05207
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, bolt-in (removable)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 6 bolting points on 6 foot plates welded to the bodyshell
• Weight: 210 kg (manufacturer’s figure)
• Finish: welded and unpainted, split into sections via connecting sleeves
• Included: welded structure, connecting sleeves, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so it fits your car exactly. Because of the door bars, the door cards may need to be modified. Have the cage fitted by a specialist experienced with roll cages.

Door bars added, and the cage can still simply come out again.

Why choose this Bolt-in Touring V3 roll cage?

When things go wrong in drifting, it is often from the side, which is exactly where side protection comes in. V3 adds that protection without you having to switch to a welded-in structure.

Frequently asked questions

What does V3 add compared with V2?

The Bolt-in Touring V3 has door bars for extra side protection and rigidity.

Will my door cards still fit?

That depends on your interior setup. Door bars often require the door card to be modified; discuss this with your mechanic.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
