Description

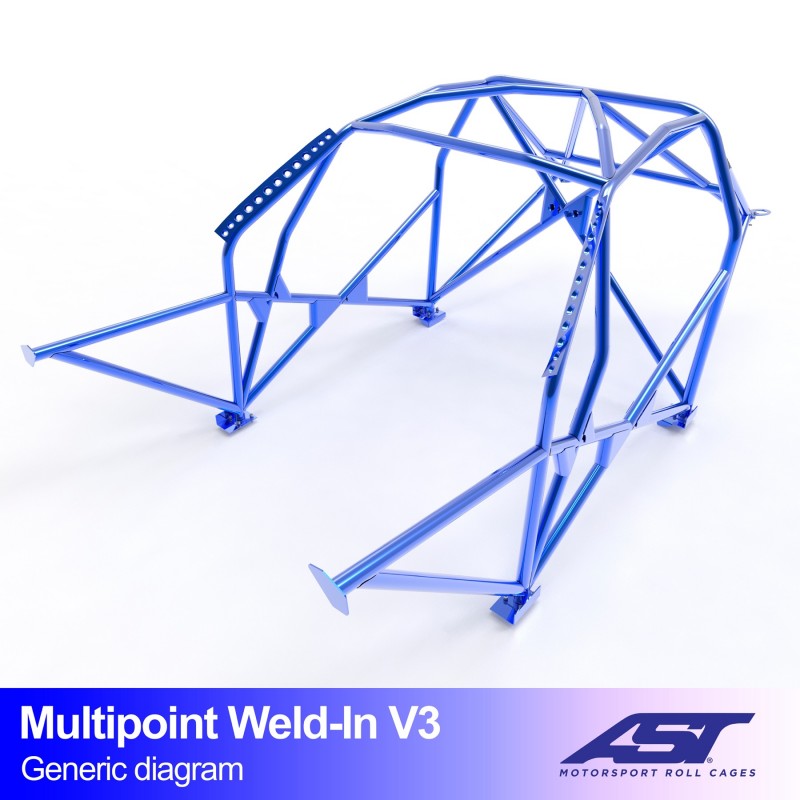

AST Multipoint Weld-in Roll Cage BMW E36 Touring V3

The AST Multipoint Weld-in Roll Cage BMW E36 Touring V3 is a full roll cage for the BMW 3 Series (E36) with 5-door Touring bodywork. This Multipoint Touring V3 adds door bars for side protection and is permanently welded to the bodyshell.

The cage is designed and built by AST Roll Cages in Spain, for drivers who take both rigidity and side-impact protection seriously.

Key benefits

• Full roll cage covering the front and rear compartments
• Door bars for protection in a side impact
• Permanently welded to the bodyshell at multiple points
• Tailor-made specifically for the E36 Touring (5-door)
• Supplied as an unpainted weld-in kit with mounting hardware

Suitable for

BMW 3 Series (E36), 5-door Touring

• BMW E36 Touring (5-door)
• Type: multipoint weld-in roll cage, version V3
• Competition, track use and drifting

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN06827
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, multipoint weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 10 welded mounting points on the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so it fits your car exactly. Because of the door bars, the door cards often need to be modified. Have the cage fitted by a specialist experienced in roll cage welding.

Side protection where things most often go wrong in drifting.

Why choose this Multipoint Touring V3 roll cage?

In drifting, the impact rarely comes head-on. Door bars put a real barrier between you and whatever comes at you from the side, without sacrificing rigidity.

Frequently asked questions

What does V3 add compared with V2?

The Multipoint Touring V3 has door bars for side protection and extra rigidity.

Will my door cards still fit?

In most cases the door card needs to be modified. Discuss this with your mechanic before the cage is fitted.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
