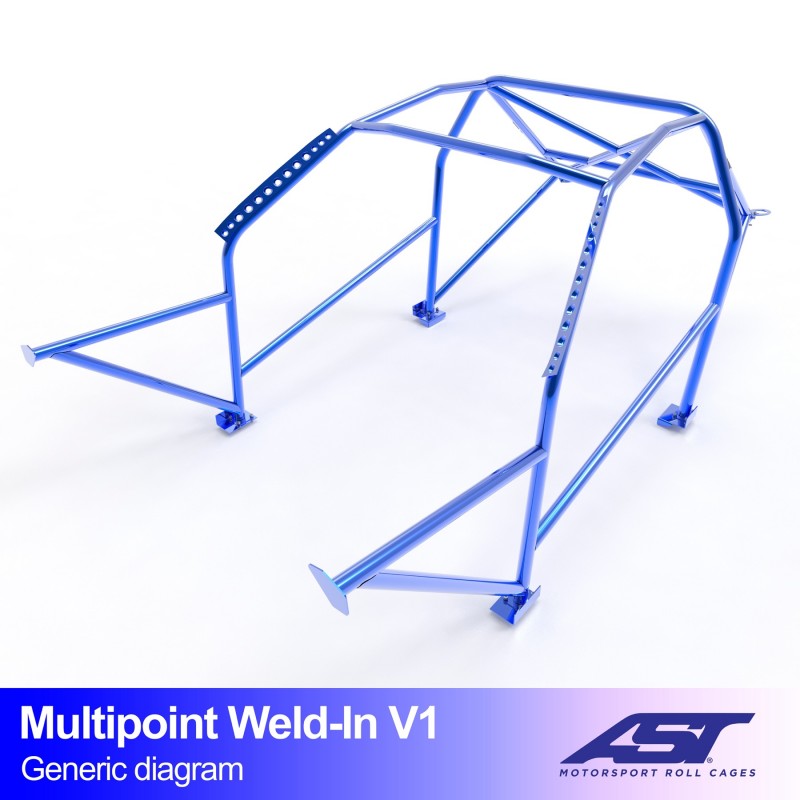

AST Multipoint Weld-in Roll Cage BMW E46 Compact V1

The AST Multipoint Weld-in Roll Cage BMW E46 Compact V1 is a full roll cage for the BMW E46 with 3-door Compact bodywork. This Multipoint E46 Compact V1 is the entry-level version of the multipoint range and is permanently welded to the bodyshell at 10 points.

The cage is designed and built by AST Roll Cages in Spain, for drivers who are turning their Compact into a serious drift or track car and deliberately choose a welded foundation instead of a removable cage.

Key benefits

• Ten welded mounting points: the forces are spread over more points in the bodyshell than with a standard eight-point weld-in cage.
• E355 steel: main hoop with a diameter of 45 mm, the rest of the structure 40 mm.
• Thick foot plates: 3 mm steel, custom-designed for each car.
• Exact fit: the bodyshell has been digitised with laser scanners and the cage designed in 3D.
• Noticeably more rigid bodyshell: the Compact responds more directly to steering and throttle inputs.
• Complete weld-in kit: gussets, reinforcement plates and mounting hardware are included.
• Supplied unpainted: you choose the finish yourself once the cage has been welded in.

Suitable for

BMW E46, 3-door Compact

• BMW E46 3-door Compact
• Type: multipoint weld-in roll cage, version V1
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN03034
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area

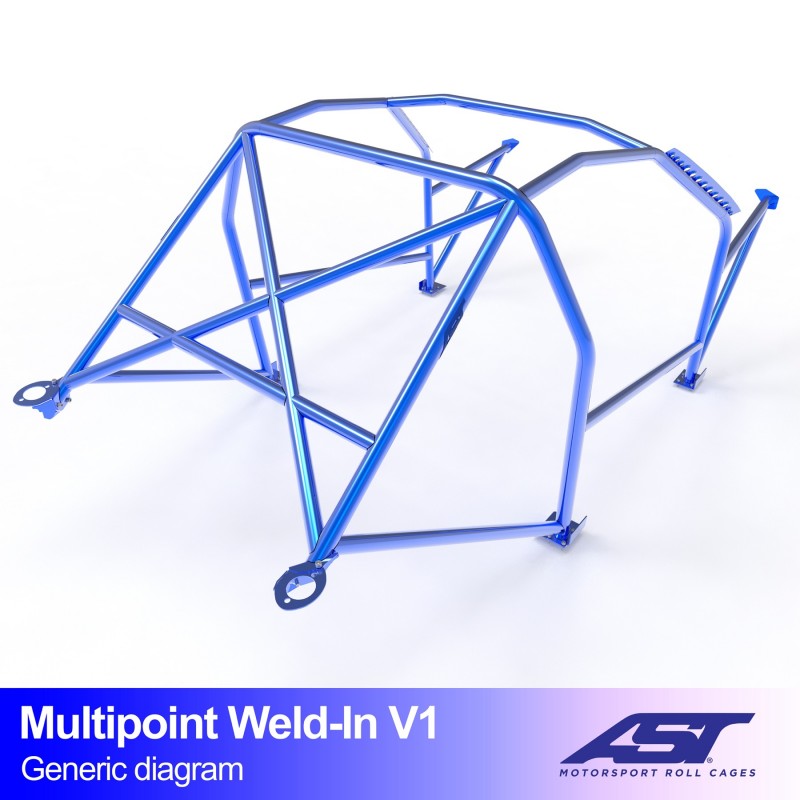

• Rear structure layout: X design
• Type: full roll cage, multipoint weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 10 welded mounting points on the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. Welding in should be done by an experienced welder, as trim, insulation and cover panels must first be removed at the ten welded mounting points. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so it fits your car exactly.

The V1 is the most direct route to a welded-in ten-point cage in the E46 Compact, without bars you don’t need.

Why choose this Multipoint E46 Compact V1 roll cage?

A welded-in cage forms a single unit with the car and therefore delivers more rigidity than a bolt-in version. The V1 sticks to the core structure, so you combine a keen entry-level price with the benefits of ten welded mounting points. For drivers who are mainly after safety and torsional rigidity, this is the most logical choice in the range.

Frequently asked questions

How does this cage differ from a standard weld-in cage?

The Multipoint E46 Compact V1 is welded to the bodyshell at ten points instead of eight. These extra points spread the forces further across the floor and pillars.

Will the cage fit my 3-door Compact exactly?

Yes. AST scans the bodyshell with laser scanners and designs the cage in 3D specifically for the E46 Compact, so there is no trial and error during fitting.

What exactly will I receive?

You receive the complete weld-in kit with gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and a sticker set. The cage is unpainted.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.

Delivery outside the European Union: different shipping costs may apply. Don’t worry: we will email you as soon as possible after your order and agree the shipping with you. You are not committed to anything without your consent.
