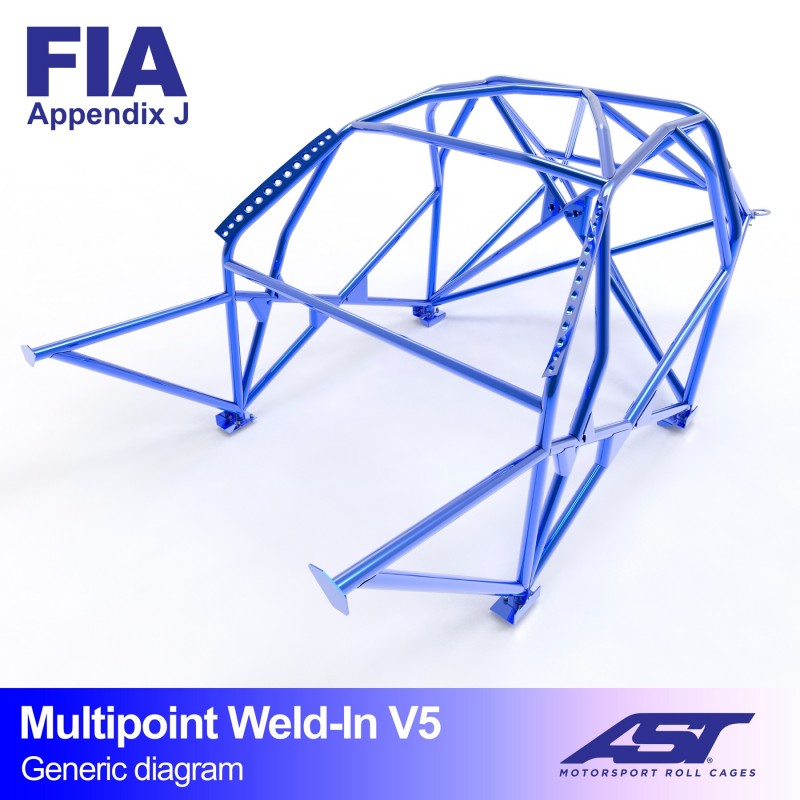

AST Multipoint Weld-in Roll Cage BMW E46 Sedan V5

The AST Multipoint Weld-in Roll Cage BMW E46 Saloon V5 is a full roll cage for the BMW E46 with 4-door saloon bodywork. This Multipoint E46 Saloon V5 is the most comprehensive specification in the multipoint range and comes with the complete set of bars, from the bulkhead at the front to the rear anchorage.

The cage is designed and built by AST Roll Cages in Spain, for drivers who get the most out of the bodyshell of their E46 saloon and do not want to weld in extra bars later.

Key benefits

• Complete set of bars, the highest specification AST supplies for this multipoint family.
• Maximum torsional rigidity, because the front section, roof, sills and rear are all tied into a single structure.
• Harness bar and diagonal bars from V4 are retained and supplemented by the remaining reinforcements.
• Door bars on both sides for side protection of both driver and passenger.
• Ten welded mounting points on the bodyshell, spreading the load over a wide area.
• E355 steel with a 45 mm main hoop and 40 mm for the remaining tubes.
• 3 mm steel foot plates, designed and manufactured specifically for the E46 saloon.

Suitable for

BMW E46, 4-door saloon

• BMW E46 4-door saloon
• Type: multipoint weld-in roll cage, version V5
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN03837
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, multipoint weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 10 welded mounting points on the bodyshell
• FIA homologation number: N-5658 / A-5658 (as stated by AST Roll Cages, for the BMW 320i)
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that it fits your car exactly. Because of the number of tubes, this is the most involved version to fit; expect a fully stripped interior and an experienced welder.

V5 leaves nothing out: every bar AST designs for the E46 saloon is included in this kit.

Why choose this Multipoint E46 Saloon V5 roll cage?

Welding extra bars into a finished car later on usually takes more time than doing it right in one go. This Multipoint E46 Saloon V5 gives you the complete structure straight away, with ten welded mounting points and custom-designed foot plates. For a car that is driven hard and often, that is the safest and, in the long run, the cheapest route.

Frequently asked questions

What makes V5 different from V4?

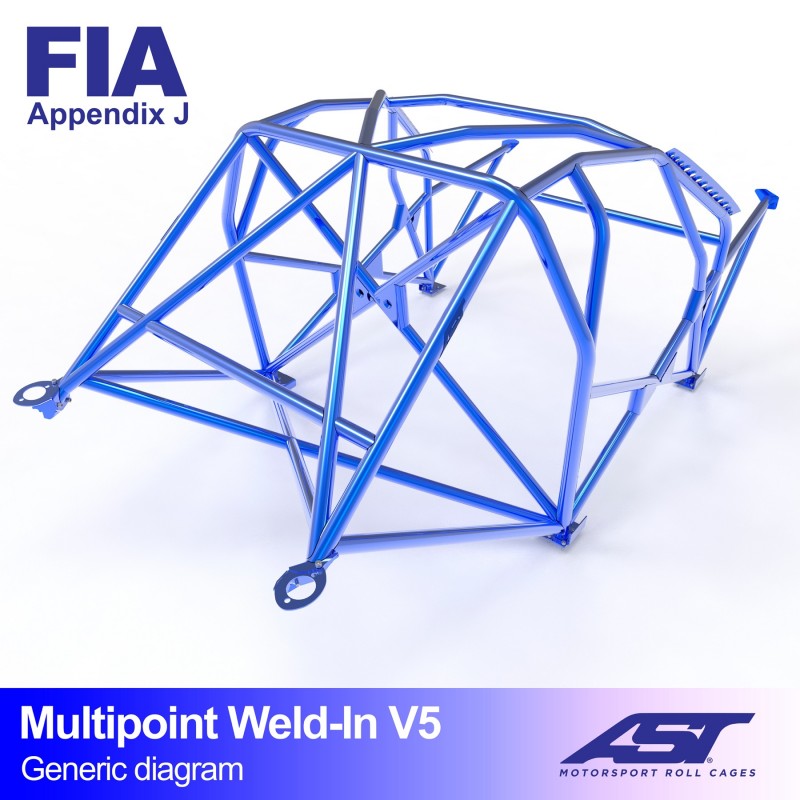

The Multipoint E46 Saloon V5 has the complete set of bars rather than just part of it. Where V4 stops at the diagonal and harness bars, V5 continues with the remaining reinforcements in the roof and rear section.

What is included?

An unpainted weld-in kit with gussets, reinforcement plates, bolts, washers and nuts, individual documentation, fitting instructions and a sticker set.

Is this cage suitable for competition?

For the Multipoint E46 Saloon V5, AST Roll Cages lists the FIA homologation numbers N-5658 and A-5658, stated for the BMW 320i. In addition, check with your federation or sporting body which safety requirements apply to your car, engine and championship.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
