AST Multipoint Weld-in Roll Cage BMW F21 V4

The AST Multipoint Weld-in Roll Cage BMW F21 V4 is a full roll cage for the BMW 1 Series F21 with three-door hatchback bodywork. This Multipoint F21 V4 differs from the standard weld-in cage in having ten welded mounting points instead of eight, which spreads the load over more points on the bodyshell.

The cage is designed and built by AST Roll Cages in Spain for teams and builders who want to spread the forces from a welded-in cage as widely as possible.

Key benefits

• Ten welded mounting points: two more than the standard weld-in cage, so the forces are distributed more widely.
• V4 specification: door bars, an extra diagonal bar and a harness bar for your harnesses.
• Permanent: the cage becomes a structural part of the F21.
• E355 steel: main hoop 45 mm, rest of the structure 40 mm.
• Gussets and reinforcement plates included for attachment to the sheet metal.
• 71 kg (manufacturer’s figure): a relatively light package for this level of mounting.
• Laser-scanned fit: the three-door bodyshell is digitised and the cage is designed in 3D.

Suitable for

BMW 1 Series F21, three-door hatchback

• BMW 1 Series F21 three-door hatchback, built 2012 to 2019
• Type: full multipoint weld-in roll cage, version V4
• Not interchangeable with the five-door F20: AST designs a dedicated cage for each body style
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN06417
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, multipoint weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 10 welded mounting points on the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. With ten welded mounting points, there is more preparation work on the bodyshell than with an eight-point weld-in cage; the interior has to come out completely and the welding should be left to an experienced fitter.

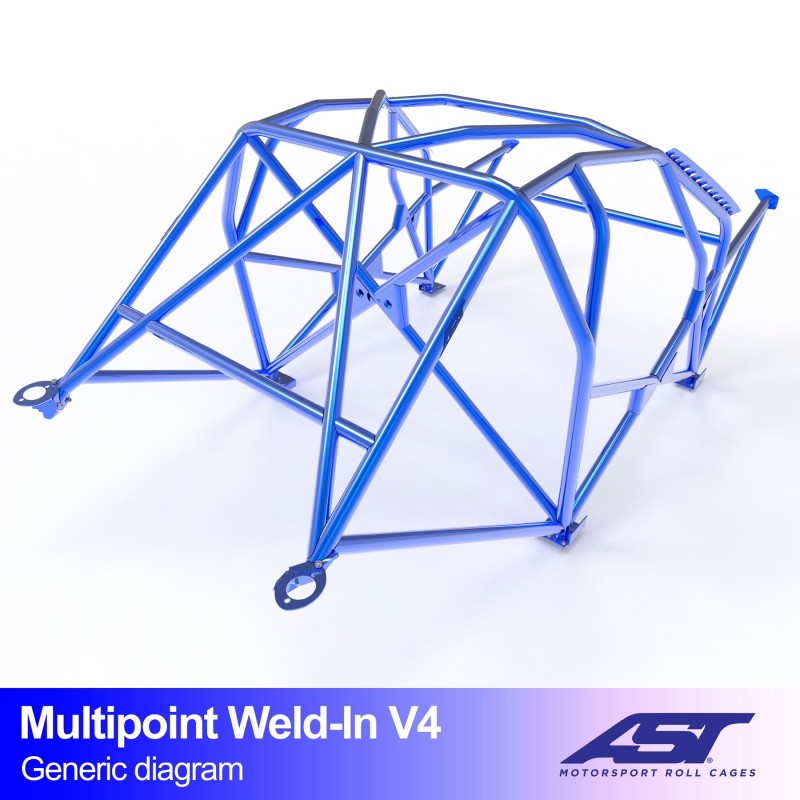

Ten welded mounting points spread the forces more widely across the F21 than the usual eight.

Why choose this Multipoint F21 V4?

The more points connecting the cage to the bodyshell, the less load each point puts on the sheet metal. In the long run, that makes a difference for a car that covers a lot of kilometres on track. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that all ten points end up in exactly the right place in your three-door F21.

Frequently asked questions

What is the advantage of ten welded mounting points?

On the Multipoint F21 V4, the load is spread over ten points instead of eight, so each point puts less force on the bodyshell.

Does this cage fit a five-door BMW F20?

No. This cage is designed for the three-door F21. AST has a separate cage for the five-door F20, and the two are not interchangeable.

What exactly will I receive?

The unpainted weld-in kit with gussets, reinforcement plates, mounting hardware, documentation, the fitting instructions and the sticker set.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
