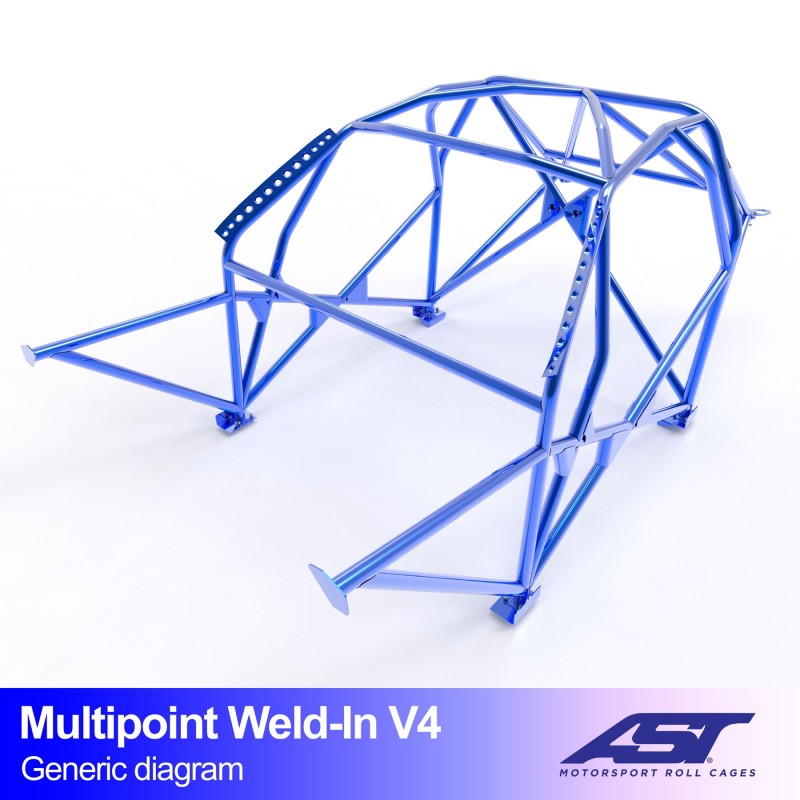

AST Multipoint Weld-in Roll Cage BMW G82 Coupé V4

The AST Multipoint Weld-in Roll Cage BMW G82 Coupé V4 is a full roll cage for the BMW 4 Series G82 with 2-door coupé bodywork. This Multipoint G82 Coupé V4 is welded to the bodyshell at ten points and therefore spreads the loads over more locations than a standard weld-in cage with eight welded mounting points.

The cage is designed and built by AST Roll Cages in Spain, for drivers who want to push the rigidity of their G82 as far as possible and are prepared to accept a permanent structure to achieve it.

Key benefits

• Ten welded mounting points: two more anchor points than the standard weld-in version.
• Better load distribution: more points mean the load is spread over a larger part of the bodyshell.
• V4 specification: main hoop with braces, front reinforcement bars to the bulkhead, door bars and an extra diagonal brace and harness bar.
• Gussets: around the welded mounting points, the loads are absorbed by the supplied gussets and plates.
• E355 steel: 45 mm for the main hoop, 40 mm for the rest of the structure.
• Moderate weight: 71 kg according to the manufacturer’s figure.
• Laser-scan fit: the G82 bodyshell has been digitised and the cage designed in 3D on the basis of that scan.

Suitable for

BMW 4 Series G82, 2-door coupé

• BMW 4 Series G82 Coupé, the current M4 coupé from 2021
• Type: full roll cage, version V4, multipoint weld-in, permanent
• Drifting, track use and rallying
• Please note: AST does not offer a convertible version of this cage for the G82
• Please note: the F82 is the predecessor and has its own cage, which is not interchangeable with this G82 version

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN05921
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, multipoint weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 10 welded mounting points on the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. With ten welded mounting points, there is more preparatory work on the sheet metal than with an eight-point cage, so expect a completely stripped-out interior. The G82 is a modern car with a lot of electronics and airbags, so plan the fitting carefully and have the trim, wiring and covers that need to come out identified in advance. Always check the regulations of your own sporting organisation.

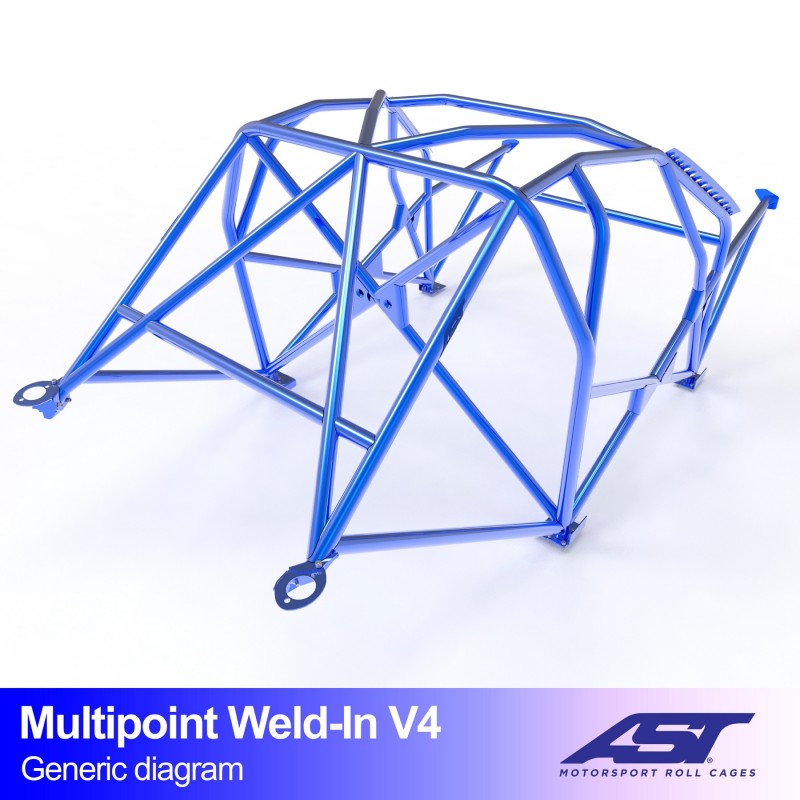

Ten welded mounting points instead of eight, for broader anchorage in the bodyshell of your G82.

Why choose this Multipoint G82 Coupé V4 roll cage?

If you want to get the maximum out of your chassis, the extra welded mounting points of the multipoint version make the difference. The load is fed in at ten points rather than eight, with gussets around them. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that every anchor point is carefully positioned.

Frequently asked questions

What makes this cage multipoint?

The Multipoint G82 Coupé V4 is welded to the bodyshell at ten points instead of the eight points of a standard weld-in cage. As a result, the load is spread over more areas of the sheet metal.

Can the cage be removed later?

No. The structure is permanently welded to the bodyshell. If you want something that can be removed, look at a bolt-in cage or a removable half roll cage.

Does this cage also fit an F82 or an open-top version?

No. This cage is exclusively for the 2-door coupé of the G82. The F82 is the predecessor and has its own cage from AST, which is not interchangeable; AST does not offer a convertible version for the G82.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
