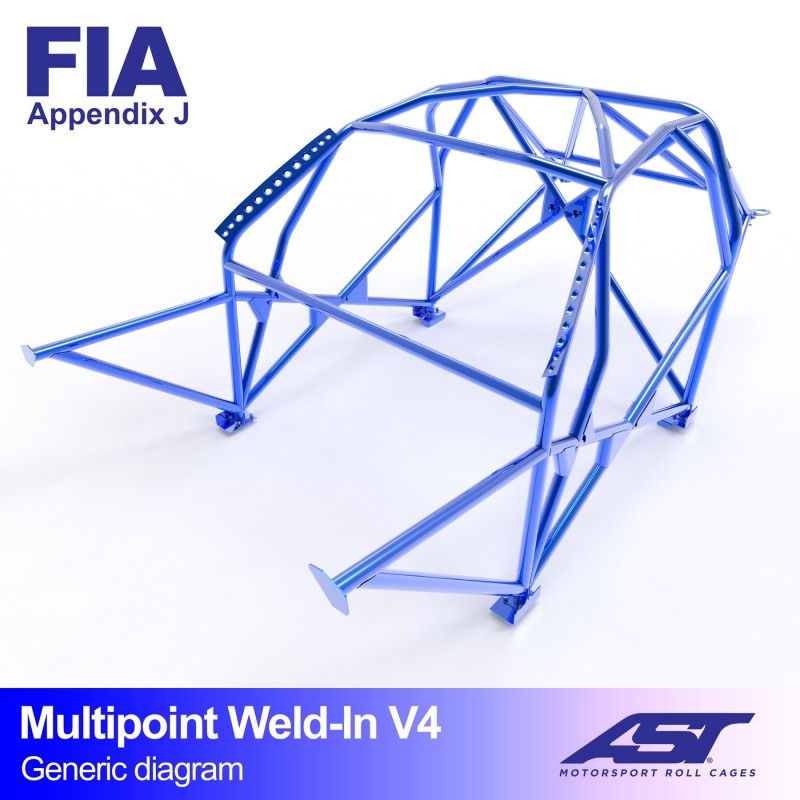

AST Multipoint Weld-in Roll Cage Nissan GT-R R35 Coupé V4

The Multipoint R35 V4 is a full roll cage for the Nissan GT-R with the R35 chassis in 2-door coupé bodywork. The difference from the standard weld-in cage lies in the number of welded mounting points: ten instead of eight. As a result, the forces enter the bodyshell at more places and the load per point stays lower.

V4 comes with door bars, an extra diagonal brace in the main hoop and a harness bar for the shoulder straps, on top of the rear structure and the bars to the bulkhead. The rear is anchored at the wheel arch.

For this item too, AST lists homologation number GT1-101, and the manufacturer states that the structure is built to FIA Appendix J, in the version for the Nissan GT-R.

Key benefits

• Ten welded mounting points, two more than on the regular weld-in cage.
• Homologation number GT1-101, as stated by AST Roll Cages, to FIA Appendix J for the Nissan GT-R.
• Lower load per point, because the forces are spread over more locations.
• Door bars and extra diagonal brace for side protection and a firmly braced main hoop.
• Harness bar as an anchorage point for the shoulder straps.
• Gussets included, so that the panels can carry the welded mounting points.
• E355 steel, 45 mm main hoop and 40 mm for the other tubes.
• Anchorage at the wheel arch with a V design rear structure.

Suitable for

Nissan GT-R, R35 chassis, 2-door coupé

• Nissan GT-R R35 Coupé, all-wheel drive
• Type: welded-in full roll cage, 10-point multipoint, version V4
• Circuit racing, time attack and endurance

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN03161
• Type: full roll cage, 10-point multipoint, permanently welded in
• Homologation: homologation number GT1-101, built to FIA Appendix J (as stated by AST Roll Cages, for the Nissan GT-R)
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: at the wheel arch
• Rear structure layout: V design
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot and reinforcement plates: 3 mm steel, custom-designed for each car
• Mounting: 10 welded mounting points on the bodyshell
• Weight: 210 kg (manufacturer’s figure)
• Finish: unpainted, supplied as a weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order, with a delivery time of 15 to 35 working days. Ten welded mounting points require more preparation than eight: in some places trim or sound insulation has to come out, and sometimes a panel has to be opened to reach the point. A multipoint cage may require modifications to the interior, so bear that in mind if you still drive with a complete dashboard.

Ten welded mounting points instead of eight: the same cage, but better anchored in the R35.

Why choose this Multipoint R35 V4?

The R35 is a heavy car with plenty of grip, so the peak forces on the welded mounting points are higher than on a light coupé. Two extra points spread that load and reduce the risk of the panelwork around a mounting point starting to flex. For a car that runs entire race weekends, that is a sensible investment.

Frequently asked questions

What is the difference from a standard weld-in cage?

The number of welded mounting points: the Multipoint R35 V4 has ten, compared with eight on the standard weld-in cage. The tube layout is otherwise identical.

Is this roll cage homologated?

On the factory documentation for this item, AST lists homologation number GT1-101 and states that the structure is built to FIA Appendix J, in the version for the Nissan GT-R. Always check with your own federation which requirements apply to your car and class.

Do I need to modify the interior?

That may be necessary. AST states that a multipoint cage may require modifications to the interior, because some welded mounting points are located behind panels.

How heavy is this kit?

AST states 71 kg for this item. That is the manufacturer’s figure.

What is the difference from V5?

The V5 has the complete set of bars, including roof diagonals. The V4 sticks to door bars, an extra diagonal brace and a harness bar.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.

Delivery outside the European Union: different shipping costs may apply. Don’t worry: we will email you as soon as possible after your order and agree the shipping with you. You are not committed to anything without your consent.
