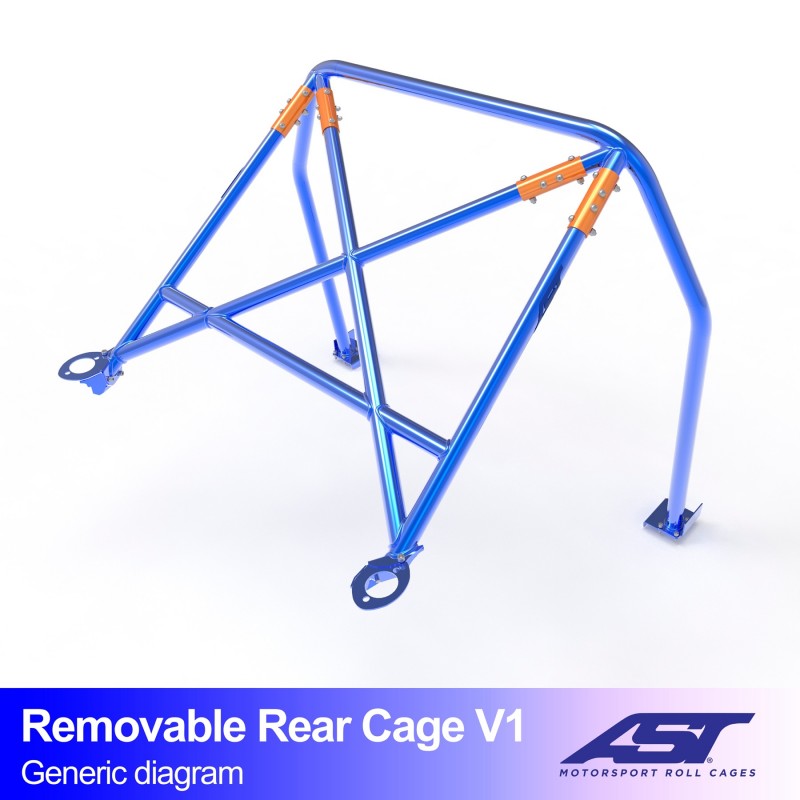

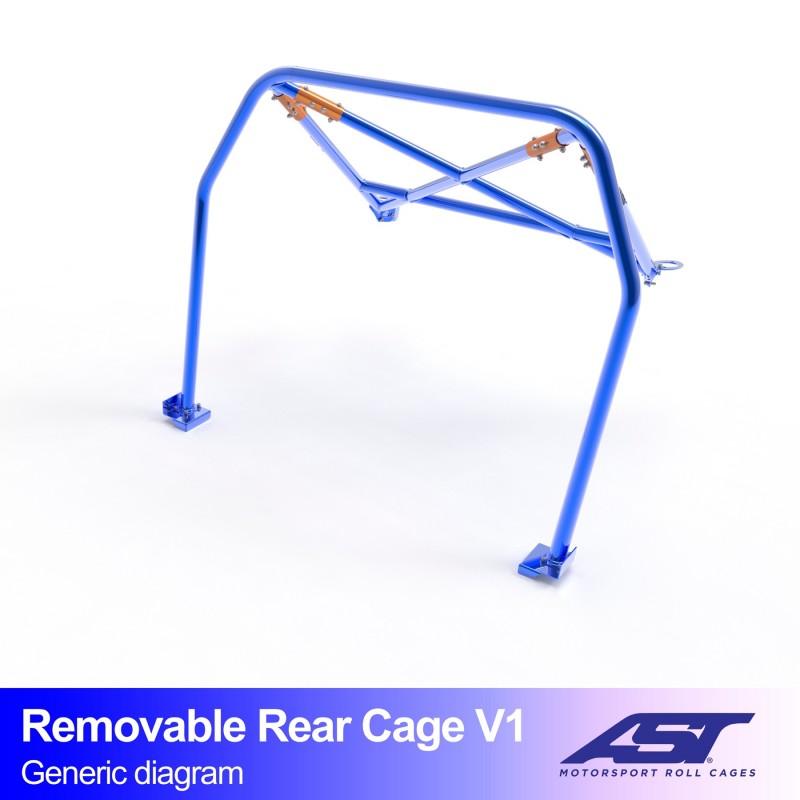

AST Removable Half Roll Cage BMW E30 Coupé V1

The AST Removable Half Roll Cage BMW E30 Coupé V1 is a half roll cage for the BMW E30 3 Series with 2-door coupé bodywork. This Removable Half Cage E30 Coupé V1 protects the rear compartment and can be taken out of the car in sections via connecting sleeves, so your E30 remains usable on the road. It is made for the rear-wheel-drive E30; a separate range exists for the all-wheel-drive 325iX.

The cage is designed and built by AST Roll Cages in Spain, for drivers who use one car for both the track and the road and don’t want to be stuck with a fixed cage every week.

Key benefits

• Removable via sleeves: the connecting sleeves let you take the cage out of the car in sections and put it back.
• Road and track in one car: the rear seat and boot are free again as soon as the cage is out.
• 45 mm main hoop: E355 steel behind the seats, with the rest of the structure in 40 mm E355.
• Four welded foot plates: 3 mm steel, custom-designed for the floor pan of the E30 Coupé.
• Fixed anchor points: the foot plates stay in the car, so refitting is simply a matter of tightening bolts.
• Fit from 3D data: AST scans the bodyshell with laser scanners and designs the cage around it.
• Supplied complete: connecting sleeves, reinforcement plates, mounting hardware and instructions are included.
• Available for cars with and without a sunroof and with and without headlining – you choose this when ordering

Suitable for

BMW E30 3 Series, 2-door coupé

• BMW E30 3 Series 2-door Coupé
• Rear-wheel-drive (RWD) versions only, not the 325iX with all-wheel drive
• Type: removable half roll cage, version V1
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN00401
• Rear anchorage: in the rear suspension area
• Rear structure layout: X design
• Type: half roll cage, removable via connecting sleeves
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 4 bolting points on 4 foot plates welded to the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: supplied welded and unpainted, split into sections via connecting sleeves
• Included: welded structure, connecting sleeves, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. AST digitises the bodyshell with laser scanners and designs the cage in 3D so that it fits your car exactly. The four foot plates are welded to the bodyshell once; the cage is then bolted onto them, and you can remove and refit it without any welding.

A cage in the car on Saturday, a usable rear seat again on Monday.

Why choose this Removable Half Cage E30 Coupé V1?

Most E30 drivers don’t have a separate track car. This cage solves that: the foot plates stay in the car permanently, but thanks to the connecting sleeves the tubes come out in half an hour. You keep the safety and rigidity for the track without having to climb over a main hoop every day.

Frequently asked questions

How exactly does removal work?

The Removable Half Cage E30 Coupé V1 is made up of sections joined together by connecting sleeves. You undo the bolts, lift the sections out of the car and refit them later just as easily. The welded foot plates stay in the car as fixed anchorage points.

How much does this cage weigh?

AST specifies 71 kg for this version. That is the manufacturer’s figure for the complete package as supplied.

What if my car has a sunroof or headlining?

When ordering, please state whether your car has a sunroof and whether the headlining will stay in place, and AST will tailor the roll cage accordingly.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.

Delivery outside the European Union: different shipping costs may apply. Don’t worry: we will email you as soon as possible after your order and agree the shipping with you. You are not committed to anything without your consent.
