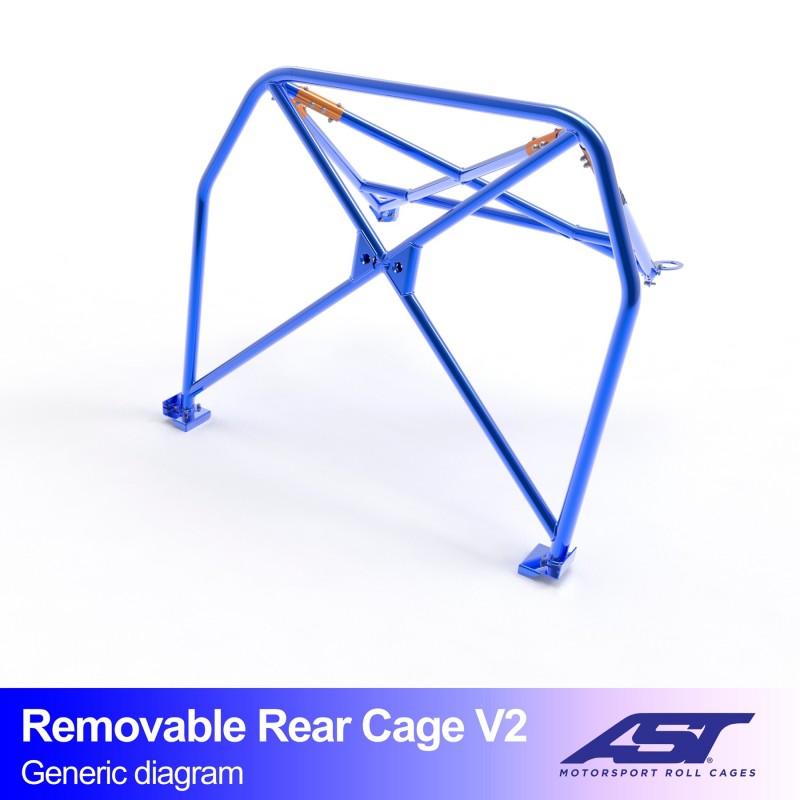

AST Removable Half Roll Cage BMW E92 Coupé V2

The AST Removable Half Roll Cage BMW E92 Coupé V2 is a half roll cage for the BMW 3 Series E92 with two-door coupé bodywork. This Removable Half Cage E92 Coupé V2 builds on the V1 and adds extra bracing, making the rear compartment stiffer without losing its removable character.

The cage is designed and built by AST Roll Cages in Spain, for drivers who want more rigidity and more attachment points than the basic version offers.

Key benefits

• More structure than V1: extra bracing around the main hoop makes the rear of the E92 Coupé noticeably less flexible.
• Still removable: the sections are separated via connecting sleeves, so the cage comes out again when the car needs to go back on the road.
• Four welded foot plates: the four bolting points sit on foot plates made from 3 mm steel, designed for each individual car.
• E355 steel: 45 mm main hoop, 40 mm for the rest of the structure, the same steel grade as in AST’s full cages.
• Laser-scanned fit: AST digitally scans the bodyshell of the E92 Coupé, so nothing needs to be adjusted or ground to fit.
• Front interior stays intact: you keep the dashboard, seats and door cards; the work is confined to the rear.
• Supplied complete: reinforcement plates, connecting sleeves, mounting hardware, fitting instructions and sticker set are included.
• Available for cars with and without a sunroof and with and without headlining – you choose this when ordering

Suitable for

BMW 3 Series E92, two-door Coupé

• BMW 3 Series E92 Coupé, years of manufacture 2006 to 2013
• Type: half roll cage, version V2
• Drifting, track use and rallying

The E92 is the coupé of the E90 generation. The saloon E90, the Touring E91 and the convertible E93 each have their own cage, and these do not fit this two-door.

Technical specifications

• Manufacturer: AST Roll Cages
• Rear structure layout: X design
• Manufacturer part number: CMBN00665
• Rear anchorage: in the boot area
• Type: half roll cage, removable via connecting sleeves
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 4 bolting points on foot plates welded to the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: welded and unpainted, supplied in sections joined by connecting sleeves
• Included: welded structure, connecting sleeves, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. Expect more preparation than with the V1: there are more bars to fit, so plan the installation for a time when the rear interior can come out anyway. Welding the four foot plates is a job for a fitter with roll cage experience.

The V2 is for anyone who wants a genuinely stiffer rear end on their E92 Coupé but still wants to be able to take the cage out now and then.

Why choose this removable half cage E92 Coupé V2?

AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that every tube sits in exactly the right place against the panelwork. The difference from the base version lies in the extra bars: they spread the loads over more points and give the rear of the car more torsional rigidity, which you feel through the steering wheel in fast corners and while drifting. The cage is intended for track and competition use; always check the regulations of your own organiser before entering an event with it.

Frequently asked questions

What is the difference from the V1?

The Removable Half Cage E92 Coupé V2 adds extra bars on top of the main hoop and braces of the V1. Both are half roll cages on four bolting points and both are removable, but the V2 is the stiffer, more comprehensively equipped level.

Does this cage fit my car exactly?

Yes, provided it is a BMW 3 Series E92 Coupé. AST builds the cage from a laser scan of exactly this bodyshell, so the tubes follow the pillars and wheel arches of the two-door. An E90 saloon or E93 convertible needs a different cage.

What if my car has a sunroof or headlining?

When ordering, please state whether your car has a sunroof and whether the headlining will stay in place, and AST will tailor the roll cage accordingly.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
