Description

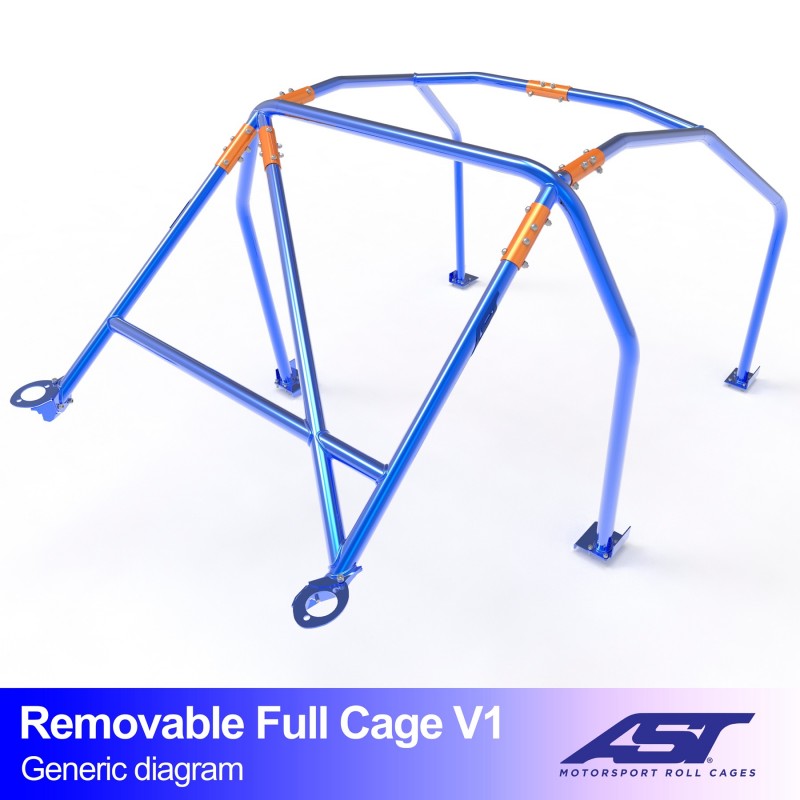

AST Removable Roll Cage BMW E30 Sedan V1

The AST Removable Roll Cage BMW E30 Saloon V1 is a full roll cage for the BMW E30 3 Series with 4-door saloon bodywork. This Removable Roll Cage E30 Saloon V1 is the basic version of the range, with a main hoop and braces that enclose both the front and rear compartments of the rear-wheel-drive E30. The structure sits on six bolting points on six welded foot plates and remains removable via connecting sleeves.

The cage is designed and built by AST Roll Cages in Spain, for E30 drivers who want full protection around the cabin without permanently converting their car into a pure race car.

Key benefits

• Front and rear compartments protected instead of just the rear.
• Six welded foot plates spread the forces across the entire floorpan of the saloon.
• Removable via connecting sleeves, so the cage comes out of the car in sections.
• Heavy main hoop in E355 steel with a diameter of 45 mm.
• Noticeably more rigid chassis, which directly benefits steering feel and balance.
• Custom-designed after AST digitised the E30 bodyshell with laser scanners.
• Supplied complete with reinforcement plates, bolts, washers, nuts, documentation, fitting instructions and a sticker set.
• Available for cars with and without a sunroof – you choose this when ordering

Suitable for

BMW E30 3 Series, 4-door saloon, rear-wheel drive

• BMW E30 3 Series 4-door Saloon
• Rear-wheel-drive E30 only; a separate AWD version is available for the all-wheel-drive 325iX
• Type: full roll cage, version V1
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN00257
• Headlining: for roofs with headlining
• Rear anchorage: at the wheel arch
• Rear structure layout: X design
• Type: full roll cage, removable via connecting sleeves
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 6 bolting points on 6 welded foot plates
• Drive: rear-wheel drive (RWD)
• Weight: 210 kg (manufacturer’s figure)
• Finish: welded and unpainted, split into sections via connecting sleeves
• Included: welded structure, connecting sleeves, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. The six foot plates are welded to the bodyshell by a specialist; the cage is then bolted onto those plates and can be taken out again via the connecting sleeves. For a full cage, most of the interior has to come out of the car, so allow for a few days’ work. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that it fits your E30 exactly.

A full roll cage that protects your E30 saloon all round, yet still comes out of the car in sections.

Why choose this Removable Roll Cage E30 Saloon V1?

As soon as you get serious about drifting or track driving, protection around the front seats is just as important as in the back. This V1 gives you that full enclosure in its simplest form, with a basic structure that won’t get in your way later if you want to build the car up further. Being removable also means the car stays usable between events.

Frequently asked questions

What makes this cage removable?

This Removable Roll Cage E30 Saloon V1 is made up of sections that are joined together with connecting sleeves. The six foot plates stay in the car; you simply unbolt the cage itself and take it out in sections.

Does this cage fit an all-wheel-drive E30 325iX?

No, this version is made for the rear-wheel-drive E30 saloon. There is a separate AWD version for the all-wheel-drive 325iX.

Is this cage suitable for competition?

The cage is built for track, drift and rally use. Always check the technical regulations yourself with the organiser of the events you enter, as the requirements differ by class and by country.

What if my car has a sunroof?

When ordering, please state whether your car has a sunroof, and AST will tailor the roll cage accordingly.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
