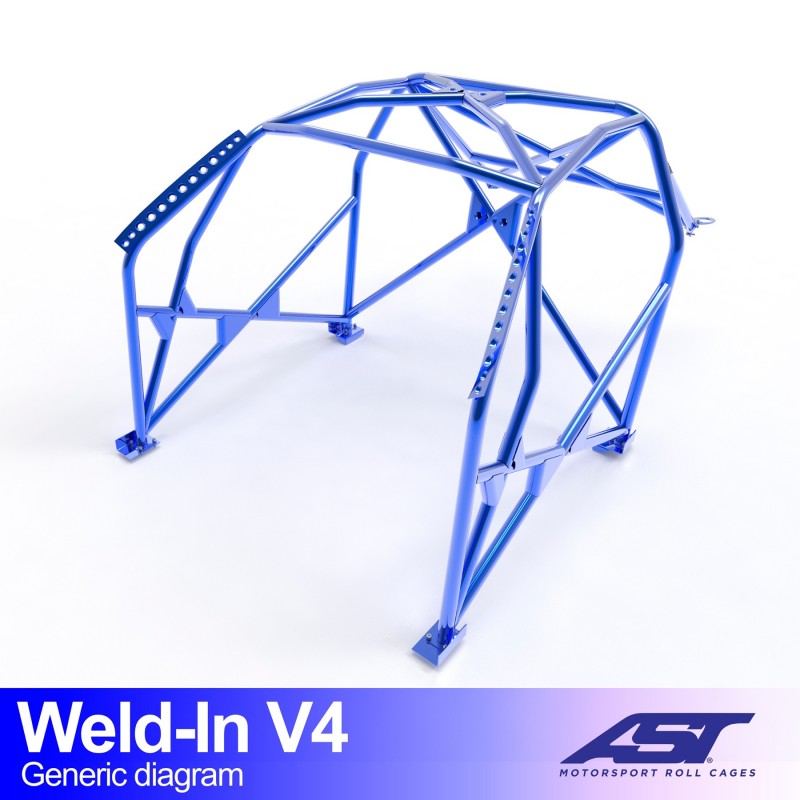

AST Weld-in Roll Cage BMW E30 Coupé V4

The AST weld-in roll cage for the BMW E30 Coupé V4 is a full roll cage for the BMW E30 with 2-door coupé bodywork. This Weld-in E30 Coupé V4 is permanently welded to the bodyshell at eight points and includes door bars, front reinforcement bars, an extra diagonal brace and a harness bar. The cage is made for the RWD version, i.e. the rear-wheel-drive E30 Coupé, and not for the all-wheel-drive 325iX.

The cage is designed and built by AST Roll Cages in Spain, for drifters and track racers turning the classic two-door E30 into a serious competition car.

Key benefits

• Eight welded mounting points make the cage a load-bearing part of the bodyshell rather than a separate frame.
• Door bars protect the driver in side impacts, something that happens often in drifting.
• Harness bar as a solid mounting point for four- or six-point harnesses.
• Extra diagonal brace keeps the main hoop square under lateral loads.
• Low weight of 71 kg for the complete weld-in kit.
• Custom-made from a digital survey of the two-door E30 bodyshell.
• Supplied unpainted with reinforcement plates, mounting hardware, documentation and a sticker set.

Suitable for

BMW E30, 2-door Coupé

• BMW E30 2-door Coupé
• Drive: RWD, i.e. the rear-wheel-drive E30 and not the all-wheel-drive 325iX
• Type: weld-in roll cage, version V4
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN03881
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: X design
• Type: full roll cage, weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 8 welded mounting points on the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so it fits your car exactly. A weld-in cage is permanent: the interior, trim and sound insulation have to come out, and the welding should be done by a specialist.

Eight welded mounting points in a two-door E30 deliver a gain in rigidity you’ll feel from the very first corner.

Why choose this Weld-in E30 Coupé V4 roll cage?

The two-door E30 has long doors and therefore a larger unsupported opening than the saloon. That is exactly where a welded-in cage pays off: the eight welded mounting points and the door bars close that opening again. Combined with the harness bar, you get a car that is both more rigid and safer than with a bolt-in solution.

Frequently asked questions

Is this cage for the rear-wheel-drive or the all-wheel-drive E30?

The Weld-in E30 Coupé V4 is the RWD version and is therefore intended for the rear-wheel-drive E30 Coupé. If you drive an all-wheel-drive 325iX, choose the AWD version, which has a modified design around the front axle.

Can I take the cage out again later?

No. This is a weld-in cage that is welded to the bodyshell at eight points and so becomes a permanent part of the car. If you want a removable solution, look at a bolt-in version.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
