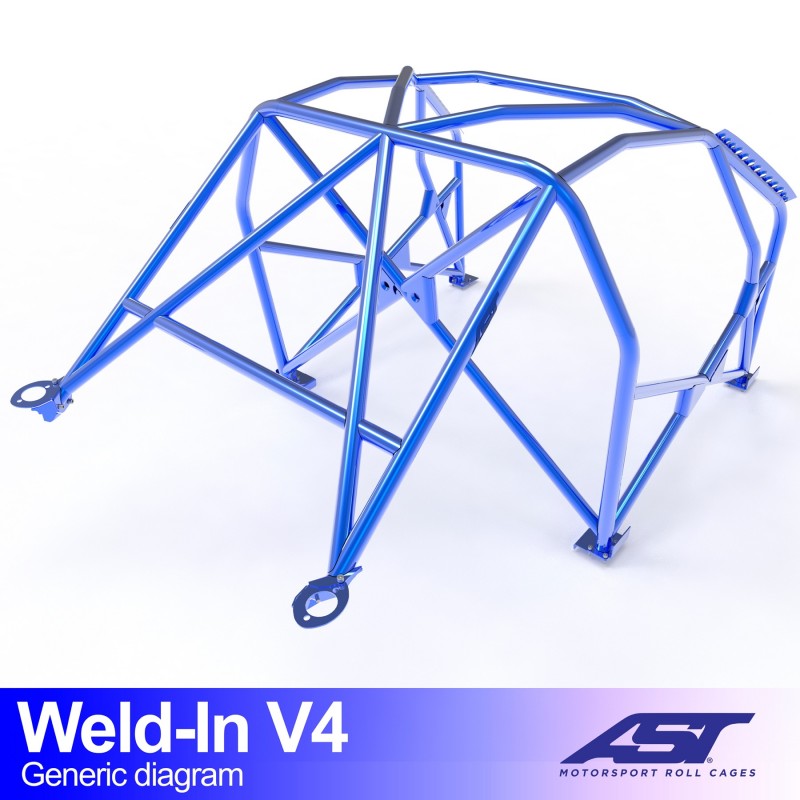

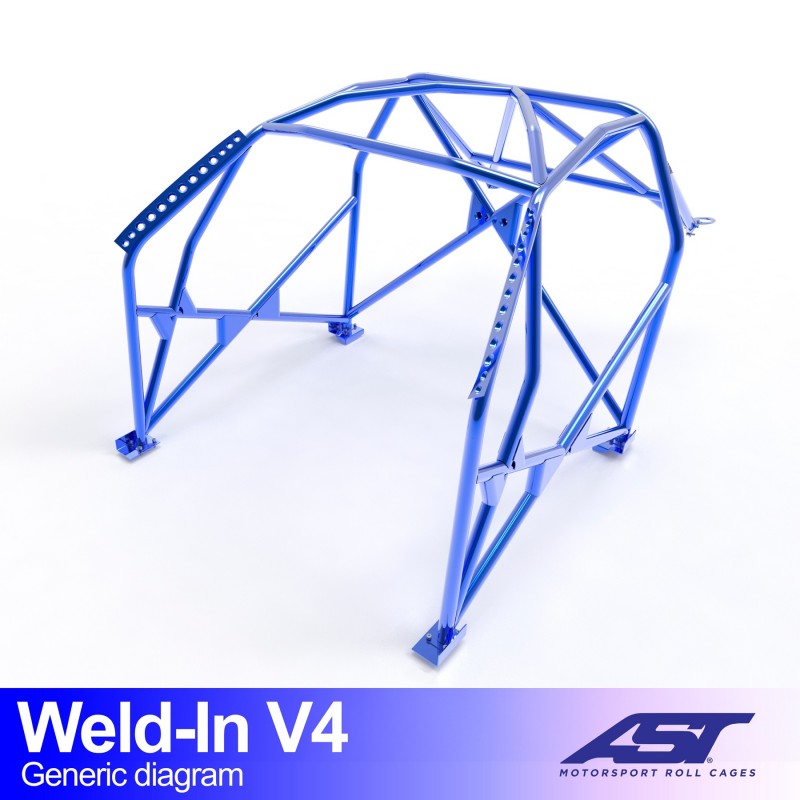

AST Weld-in Roll Cage BMW E81 V4

The AST Weld-in Roll Cage BMW E81 V4 is a full roll cage for the BMW 1 Series E81 with three-door hatchback bodywork. This Weld-in E81 V4 is welded to the bodyshell at eight points, making it a permanent solution, with door bars, an extra diagonal brace and a harness bar.

The cage is designed and built by AST Roll Cages in Spain, for drivers who want to get maximum rigidity out of their E81 and have no need to return the car to its original condition.

Key benefits

• Eight welded mounting points: the structure is welded directly to the bodyshell, giving the most rigid connection possible.
• Harness bar: a fixed mounting point for the shoulder straps of your harness.
• Extra diagonal brace: keeps the main hoop rigid under changing loads.
• Door bars: side protection in both doors.
• E355 steel: main hoop with a diameter of 45 mm, the remaining tubes 40 mm.
• Gussets: the kit includes the gussets and plates that support the welded mounting points in the bodyshell.
• Unpainted weld-in kit: you weld and paint in the same work session.

Suitable for

BMW 1 Series E81, three-door hatchback

• BMW 1 Series E81 three-door hatchback, model years 2007 to 2011
• Type: full roll cage, version V4, weld-in (permanent)
• Drifting, track use and rallying
• Only for the three-door E81. AST designs a separate cage for each body style, so the versions for the E82 Coupé and the five-door E87 do not fit this car.

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN02838
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 8 welded mounting points on the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. The kit comes as loose tubes that are fitted in the car and welded in at eight points, so this is a job for an experienced welder. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that it fits your car exactly.

Eight welded mounting points turn the cage and the bodyshell of the E81 into a single unit, giving the most rigid foundation for drifting and track work.

Why choose this Weld-in E81 V4?

A bolted system always leaves a little play in the joint; welding it in does not. If you use your E81 as a dedicated track or drift car, this V4 with harness bar and extra diagonal brace gives you the most rigidity per euro. The cage is intended for track and competition use; always check the regulations of your own organiser before you enter.

Frequently asked questions

Can I remove this cage later?

No. The Weld-in E81 V4 is welded to the bodyshell at eight points and is intended as a permanent solution. If you want a cage that can be taken out, take a look at the removable versions.

What is included in the kit?

You receive the weld-in kit, the gussets and reinforcement plates, the bolts, washers and nuts, the documentation, fitting instructions and a sticker set. Everything is supplied unpainted.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
