AST Weld-in Roll Cage BMW E81 V5

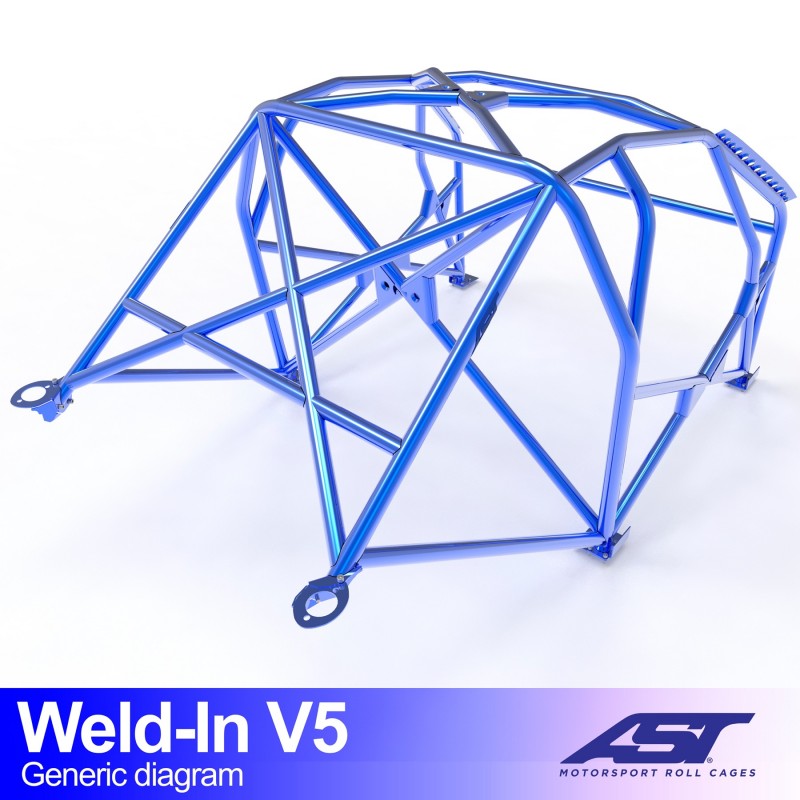

The AST Weld-in Roll Cage BMW E81 V5 is a full roll cage for the BMW 1 Series E81 with three-door hatchback bodywork. This Weld-in E81 V5 is the highest specification in the range, with the complete set of bars, and is welded to the bodyshell at eight points.

The cage is designed and built by AST Roll Cages in Spain, for drivers who are building their E81 up as a full competition car and do not want to cut corners on a single bar.

Key benefits

• Complete set of bars: the highest specification in the range, with everything the lower versions add step by step.
• Eight welded mounting points: the structure is welded firmly to the bodyshell, creating a connection that will not deform.
• Maximum torsional rigidity: because the cage braces the entire body, you notice the difference in steering feel and consistency.
• Harness mounting: the set of bars includes a harness bar for the shoulder straps.
• E355 steel: main hoop with a diameter of 45 mm, the remaining tubes 40 mm.
• Gussets and plates: supplied with the kit, so that the welded mounting points are properly supported.
• Supplied unpainted: you do all the paintwork in one go after welding.

Suitable for

BMW 1 Series E81, three-door hatchback

• BMW 1 Series E81 three-door hatchback, model years 2007 to 2011
• Type: full roll cage, version V5, weld-in (permanent)
• Drifting, track use and rallying
• Exclusively for the three-door E81. AST makes a separate cage for the E82 coupé and the five-door E87; those versions are not interchangeable with this one.

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN00720
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: at the wheel arch
• Rear structure layout: X design
• Type: full roll cage, weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 8 welded mounting points on the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. Because the V5 contains the most tubes, fitting and welding it also takes the most time, so allow for this when planning your workshop time. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that it fits your car exactly.

The highest specification level for the three-door E81: every bar included, welded to the bodyshell at eight points.

Why choose this Weld-in E81 V5?

Anyone building up their E81 as a dedicated competition car only wants to fit the cage once. With the complete set of bars, you go straight to the highest level in the range and never need to weld anything in later. The cage is intended for track and competition use; always check the regulations of your own organiser before you enter.

Frequently asked questions

What is the difference between the V4 and the V5?

The V4 has the door bars plus an extra diagonal brace and a harness bar. The weld-in E81 V5 goes one step further with the complete set of bars, the heaviest specification level that AST designs for this model.

How do I know the cage will fit?

AST scans the bodyshell of the three-door E81 with laser scanners and designs the cage in 3D from that scan. As a result, it lines up with the existing points on the bodyshell, but it also fits only this body style.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
