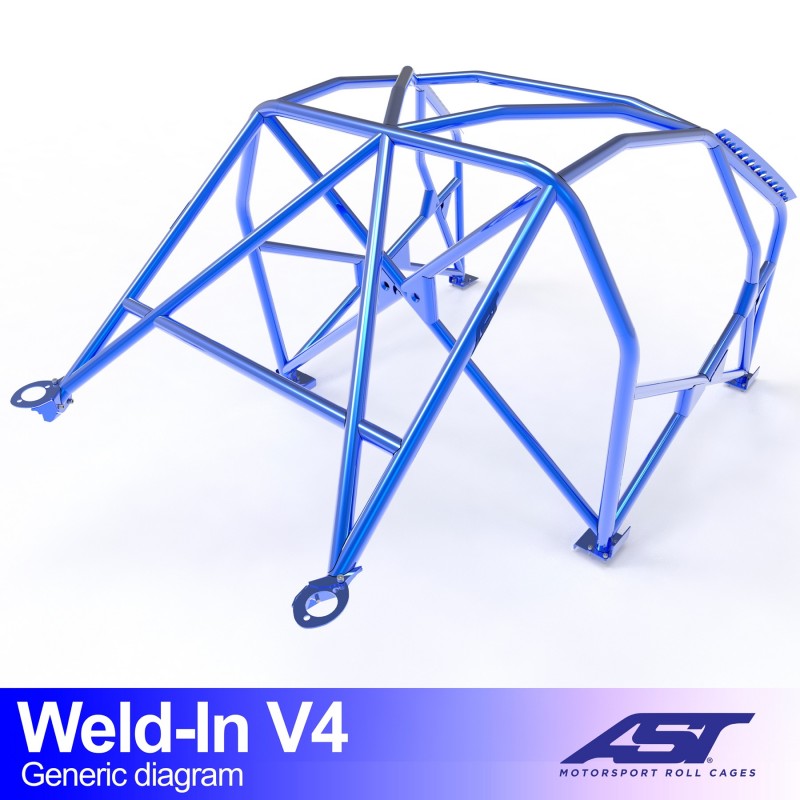

AST Weld-in Roll Cage BMW F82 Coupé V4

The AST Weld-in Roll Cage BMW F82 Coupé V4 is a full roll cage for the BMW F82 with 2-door coupé bodywork. This F82 Coupé V4 weld-in cage is permanently welded to the bodyshell at eight points and is intended for anyone running the car as a dedicated competition car.

The cage is designed and built by AST Roll Cages in Spain, for drifters and track drivers who put maximum rigidity ahead of ease of removal.

Key benefits

• Eight welded mounting points on the bodyshell, the most rigid mounting in the AST range for this model.
• Equipment level V4 with door bars plus an extra diagonal brace and harness bar.
• Lighter than the bolt-in, as there is no need for connecting sleeves or a heavy foot plate construction.
• E355 steel, 45 mm main hoop and 40 mm for the other tubes.
• Gussets and reinforcement plates included for the connection to the body panels.
• Laser-scanned fit, keeping fitting and cutting work to a minimum.
• Unpainted weld-in kit, so you paint or coat it yourself after welding.

Suitable for

BMW F82, 2-door coupé

• BMW F82 2-door coupé, the M4 coupé built from 2014 to 2020
• Type: full roll cage, version V4, weld-in (permanent)
• Drifting, track use and rallying

AST does not offer a convertible version for the F82. The G82 is the successor to this model and has its own cage, which is not interchangeable with this one.

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN05906
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot and reinforcement plates: 3 mm steel, custom-designed for each car
• Mounting: 8 welded mounting points
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. This is a permanent solution: the eight welded mounting points are fixed to the bodyshell and the cage will not come out again. Have the welding done by an experienced professional, and bear in mind that most of the interior has to be removed from the car first.

Eight welded mounting points turn the cage and the bodyshell into a single unit, and you can feel it in the steering response.

Why choose this weld-in F82 Coupé V4 roll cage?

AST digitises the bodyshell with laser scanners and designs the cage in 3D, so the tubes end up in exactly the right places and your welder does not have to improvise. For a car kept permanently in race trim, the weld-in version is both lighter and more rigid than the bolt-in version.

Frequently asked questions

Can I remove this cage later?

No. The F82 Coupé V4 weld-in cage is permanently welded to the bodyshell at eight points. If you want a cage that can be removed again, take a look at the bolt-in version.

Does this cage fit a convertible or a G82?

No. This cage is designed exclusively for the 2-door coupé version of the F82. AST does not offer a convertible version for this model, and its successor, the G82, has its own cage, which is not interchangeable.

How well does the kit fit?

The F82 bodyshell has been digitised with laser scanners and the cage designed on that basis in 3D, so the tube lengths and angles are correct before the kit leaves the workshop.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
