AST Removable Half Roll Cage Toyota GR86 ZN8 2-door Coupé V1

The AST Removable Half Roll Cage Toyota GR86 ZN8 2-door Coupé V1 is a half roll cage for the rear compartment of the Toyota GR86 ZN8 with two-door coupé body. This Half Roll Cage GR86 ZN8 V1 stands on four bolt points and is supplied in sections with sleeve connections, so it can come out again later.

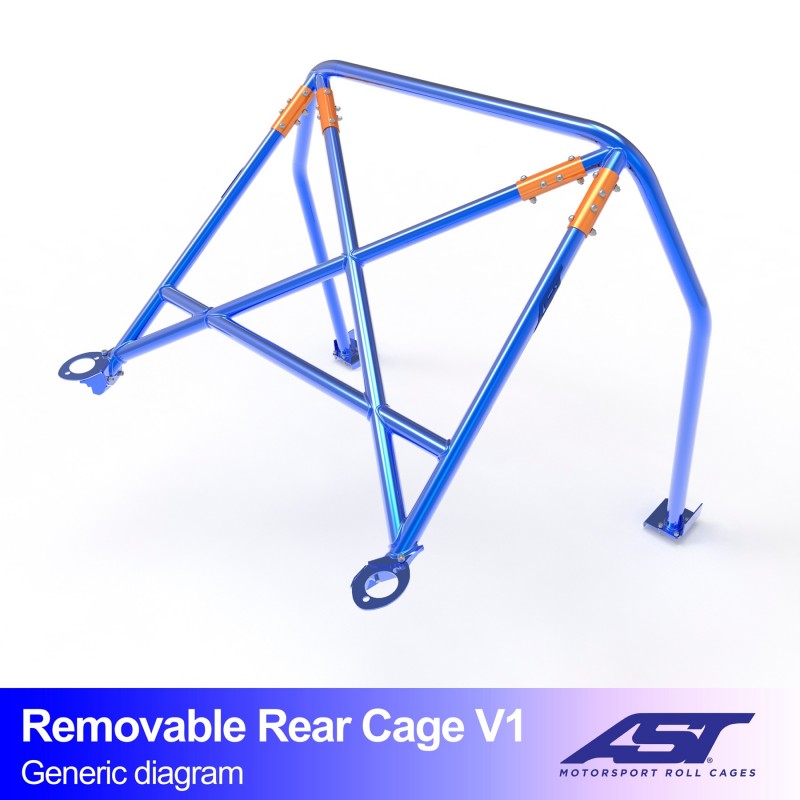

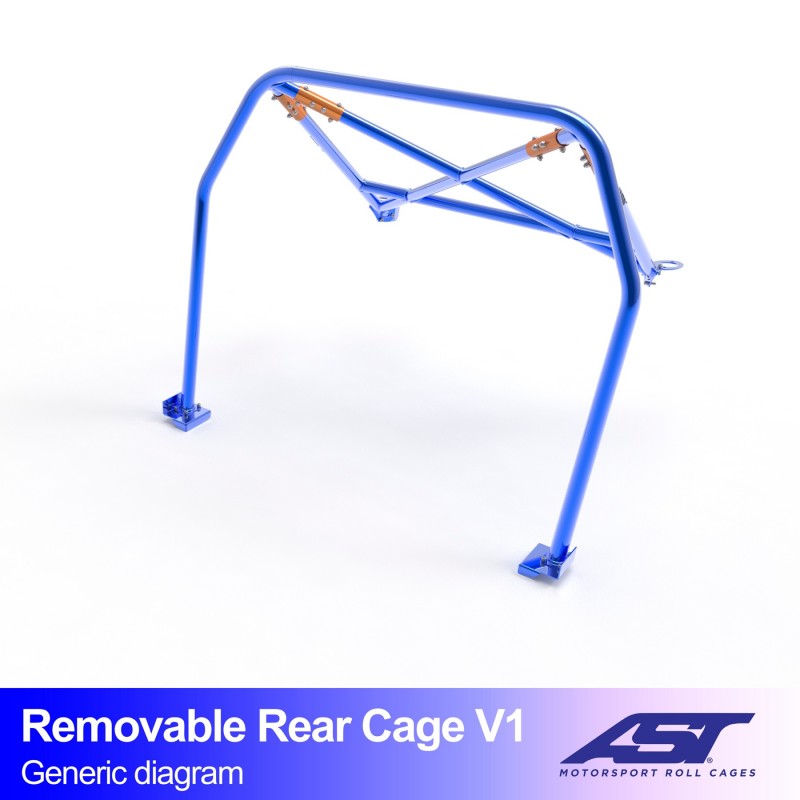

On a car that is used on track, every tube counts: a cage that ties the rear body together makes an immediate difference. This V1 is the basic version: a main hoop behind the seats with stays running back, tying the rear body together without having to strip the whole interior.

Key benefits

• Removable: the structure is split into sections via sleeve connections and can come out again.
• Entry version: the simplest cage AST designs for the Toyota GR86 ZN8.
• Four bolt points: bolted onto four base plates that are welded to the body.
• Anchored at the rear: in the rear suspension area.
• X-shaped rear structure: the rear is built as an X for extra stiffness.
• E355 steel: 45 mm diameter main hoop, 40 mm for the rest of the structure.
• Custom base plates: 3 mm thick steel, designed per car rather than universal.
• Exact fit: the body is digitised with laser scanners before the cage is drawn in 3D.
• Complete kit: supplied unpainted with fixings, documentation, installation manual and sticker set.

Fits

Toyota GR86 ZN8, 2-door Coupé

• Toyota GR86 ZN8 two-door coupé
• Version: half roll cage, V1, removable via sleeve connections
• Drift, circuit use and track days

This cage is designed for the two-door coupé of the Toyota GR86 ZN8 and does not fit other body styles or generations.

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN08165
• Sunroof: suitable for a roof without sunroof
• Headlining: suitable for a roof without headlining
• Rear anchoring: in the rear suspension area
• Rear structure shape: X design
• Type: half roll cage, removable via sleeve connections
• Main hoop: E355 steel, 45 mm diameter
• Other structure: E355 steel, 40 mm diameter
• Base plates: 3 mm steel, designed per car
• Mounting: 4 bolt points on welded base plates
• Weight: 71 kg
• Finish: welded and unpainted, in sections via sleeve connections
• Included: welded structure, sleeve connections, reinforcement plates, bolts, washers and nuts, documentation, installation manual and sticker set

Installation and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. The four base plates are welded to the body, then the cage is bolted onto them. On a Toyota GR86 ZN8, check beforehand that the mounting areas are free of rust: welding onto corroded panels gives a cage that will not do its job in a crash. The rear seat and the rear trim come out. This cage is intended for circuit and competition use; check the regulations of your own motorsport organisation beforehand.

Four bolt points, and via the sleeve connections you take it out again after the season.

Why choose this Half Roll Cage GR86 ZN8 V1?

Not everyone wants a cage welded into the car that never comes out again. This half cage gives you protection behind your head and a stiffer rear body, while the front seats and dashboard stay untouched. The fact that it comes apart also makes it interesting if you ever want to return the car to its original state. Because AST designs the base plates per car, the structure fits snugly rather than with shims.

Frequently asked questions

Does this cage also fit other versions of the Toyota GR86 ZN8?

No. This cage is designed for the two-door coupé. Other body styles and generations have a different structure.

Is welding required?

Yes, for the four base plates. They are welded to the body; the cage itself is then bolted onto those plates and can come out again via the sleeve connections.

Can the rear seat stay in?

No. AST does not design its half roll cages to keep the rear seat. Expect the rear seat to come out.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days, because AST builds every cage to order.
