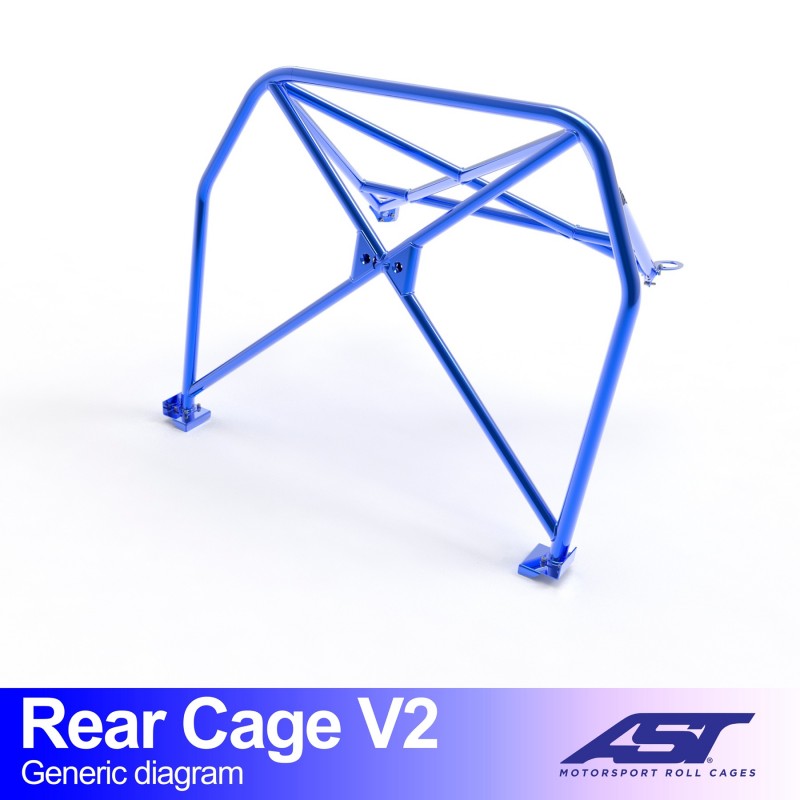

AST Half Roll Cage Toyota Yaris XP10 3-door Hatchback V2

The AST Half Roll Cage Toyota Yaris XP10 3-door Hatchback V2 is a half roll cage for the rear compartment of the Toyota Yaris XP10 with three-door hatchback body. This Half Roll Cage Yaris XP10 V2 stands on four bolt points on base plates that are welded to the body, and is supplied as one welded structure.

This model has a body of considerable age, and that is exactly when every tube counts: a cage that ties the rear body together makes an immediate difference. This V2 builds on the V1 with extra tubing in the rear structure, so more stiffness and more protection behind your head, still without touching the front compartment.

Key benefits

• Four-point half roll cage: protection and stiffness at the rear, without touching the front compartment.
• More tubing than the V1: extra stiffness and protection at the rear.
• Four bolt points: bolted onto four base plates that are welded to the body.
• Anchored at the rear: in the rear suspension area.
• X-shaped rear structure: the rear is built as an X for extra stiffness.
• E355 steel: 45 mm diameter main hoop, 40 mm for the rest of the structure.
• Custom base plates: 3 mm thick steel, designed per car rather than universal.
• Exact fit: the body is digitised with laser scanners before the cage is drawn in 3D.
• Complete kit: supplied unpainted with fixings, documentation, installation manual and sticker set.

Fits

Toyota Yaris XP10, 3-door Hatchback

• Toyota Yaris XP10 three-door hatchback
• Version: half roll cage, V2
• Drift, circuit use and track days

This cage is designed for the three-door hatchback of the Toyota Yaris XP10 and does not fit other body styles or generations.

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN06188
• Sunroof: suitable for a roof without sunroof
• Headlining: suitable for a roof without headlining
• Rear anchoring: in the rear suspension area
• Rear structure shape: X design
• Type: half roll cage, 4 bolt points
• Main hoop: E355 steel, 45 mm diameter
• Other structure: E355 steel, 40 mm diameter
• Base plates: 3 mm steel, designed per car
• Mounting: 4 bolt points on welded base plates
• Weight: 71 kg
• Finish: supplied welded and unpainted
• Included: welded structure, reinforcement plates, bolts, washers and nuts, documentation, installation manual and sticker set

Installation and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. The four base plates are welded to the body, then the cage is bolted onto them. On a Toyota Yaris XP10 of this age, check beforehand that the mounting areas are free of rust: welding onto corroded panels gives a cage that will not do its job in a crash. The rear seat and the rear trim come out. This cage is intended for circuit and competition use; check the regulations of your own motorsport organisation beforehand.

The first real step for a Toyota Yaris XP10 that is going to be driven seriously, without making the car unusable.

Why choose this Half Roll Cage Yaris XP10 V2?

This model has a body of considerable age, and that is exactly when every tube counts: a cage that ties the rear body together makes an immediate difference. This cage ties the rear body together and puts a hoop behind your head straight away. Because it only sits at the rear, the car stays practical: you get in normally and the dashboard stays where it is.

Frequently asked questions

Does this cage also fit other versions of the Toyota Yaris XP10?

No. This cage is designed for the three-door hatchback. Other body styles and generations have a different structure.

Is this half roll cage welded in?

The four base plates are welded to the body. The cage itself is bolted onto them.

Can the rear seat stay in?

No. AST does not design its half roll cages to keep the rear seat. Expect the rear seat to come out.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days, because AST builds every cage to order.

Delivery outside the European Union: different shipping costs may apply. Don’t worry: we will email you as soon as possible after your order and agree the shipping with you. You are not committed to anything without your consent.
