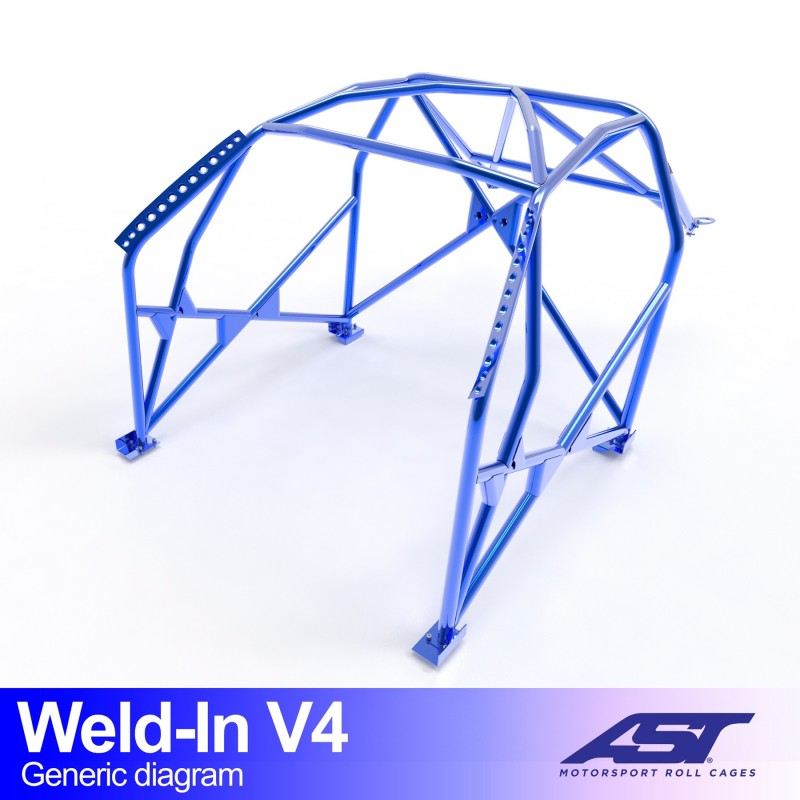

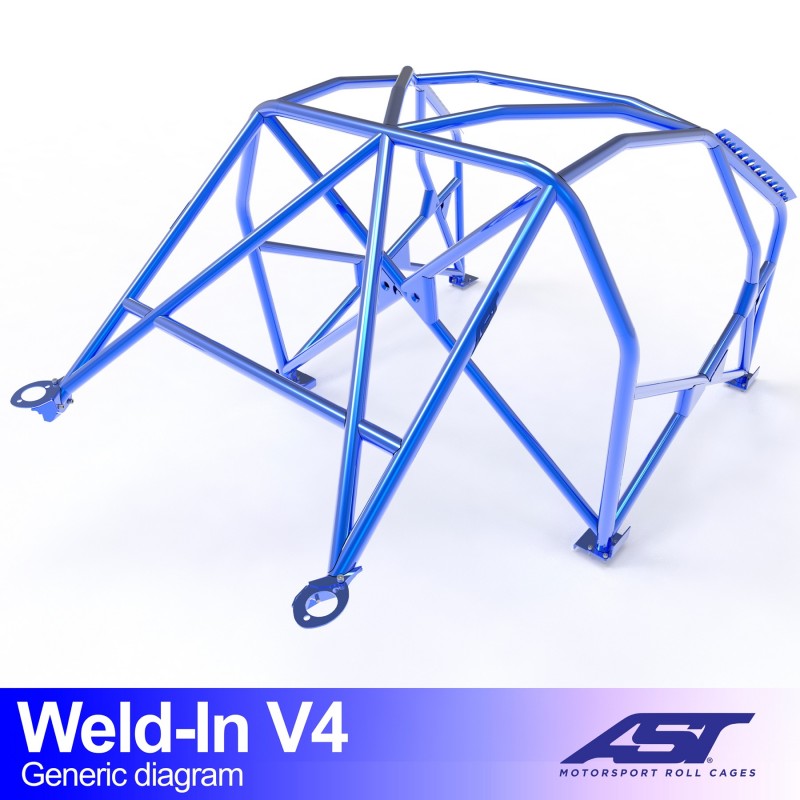

AST Weld-in Roll Cage Nissan Micra K11 5-door Hatchback V4

The AST Weld-in Roll Cage Nissan Micra K11 5-door Hatchback V4 is a full roll cage for the Nissan Micra K11 with five-door hatchback body, welded to the body at eight points. This Weld-in Roll Cage Micra K11 5-door V4 is supplied as a welding kit and welded into one unit in the car.

A weld-in cage spreads the forces over the whole body instead of over a few bolt points. That makes it stronger than a bolt-in cage, and for many competition classes it is the required version. The V4 builds on the V3 with extra braces, for anyone using the K11 fully in competition.

Key benefits

• Eight weld points: the cage is welded to the body in eight places.
• Stronger than bolt-in: the forces are spread over the whole body.
• Anchored at the rear: in the rear subframe area.
• Extra braces: builds on the V3 with more tubing.
• Gussets included: to reinforce the joints.
• E355 steel: 45 mm diameter main hoop, 40 mm for the rest of the structure.
• Custom base plates: 3 mm thick steel, designed per car rather than universal.
• Exact fit: the body is digitised with laser scanners before the cage is drawn in 3D.
• Complete kit: supplied unpainted with fixings, documentation, installation manual, sticker set and welding test sample.

Fits

Nissan Micra K11, 5-door Hatchback

• Nissan Micra K11 five-door hatchback (1992 to 2002)
• Version: full roll cage, weld-in, V4
• Drift, circuit use, track days and competition

The K11 exists as a three-door and as a five-door. This cage is designed for the five-door; AST makes separate cages for the three-door.

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN06488
• Sunroof: suitable for a roof without sunroof
• Headlining: suitable for a roof without headlining
• Rear anchoring: in the rear subframe area
• Rear structure shape: V design
• Type: full roll cage, weld-in
• Main hoop: E355 steel, 45 mm diameter
• Other structure: E355 steel, 40 mm diameter
• Base plates: 3 mm steel, designed per car
• Mounting: 8 weld points on the body
• Weight: 210 kg
• Finish: welding kit, unpainted
• Included: welding kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, installation manual, sticker set and welding test sample

Installation and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. It comes as a welding kit and is welded into one unit in the car. Leave the welding to someone with experience in roll cages: the included welding test sample is meant to check beforehand that the welding settings are right. On a K11 of this age, check beforehand that the mounting areas are free of rust: welding onto corroded panels gives a cage that will not do its job in a crash. This cage is intended for circuit and competition use; check the regulations of your own motorsport organisation beforehand.

Eight weld points and the tubing of the V4: a K11 that is ready for competition.

Why choose this Weld-in Roll Cage Micra K11 5-door V4?

For anyone building the K11 into a dedicated circuit or competition car, a weld-in cage is the strongest choice. The V4 gives you more tubing than the lower versions and therefore a stiffer body, which you feel in how the car responds on the circuit.

Frequently asked questions

What is the difference with a bolt-in cage?

A bolt-in cage is bolted in on six points and can come out again. This Weld-in Roll Cage Micra K11 5-door V4 is welded in on eight points and is therefore stronger, but stays in the car permanently.

Can I weld the cage in myself?

Only if you have experience welding roll cages. A poor weld takes the strength out of the structure. If in doubt, leave it to a specialist.

Does this cage also fit the three-door Micra?

No. This cage is designed for the five-door. For the three-door K11, AST supplies separate versions, which you will find separately in our shop.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days, because AST builds every cage to order.
