Description

Ford Transit Connect / Tourneo Connect V-Maxx Big Brake Kit 330 mm 4-piston

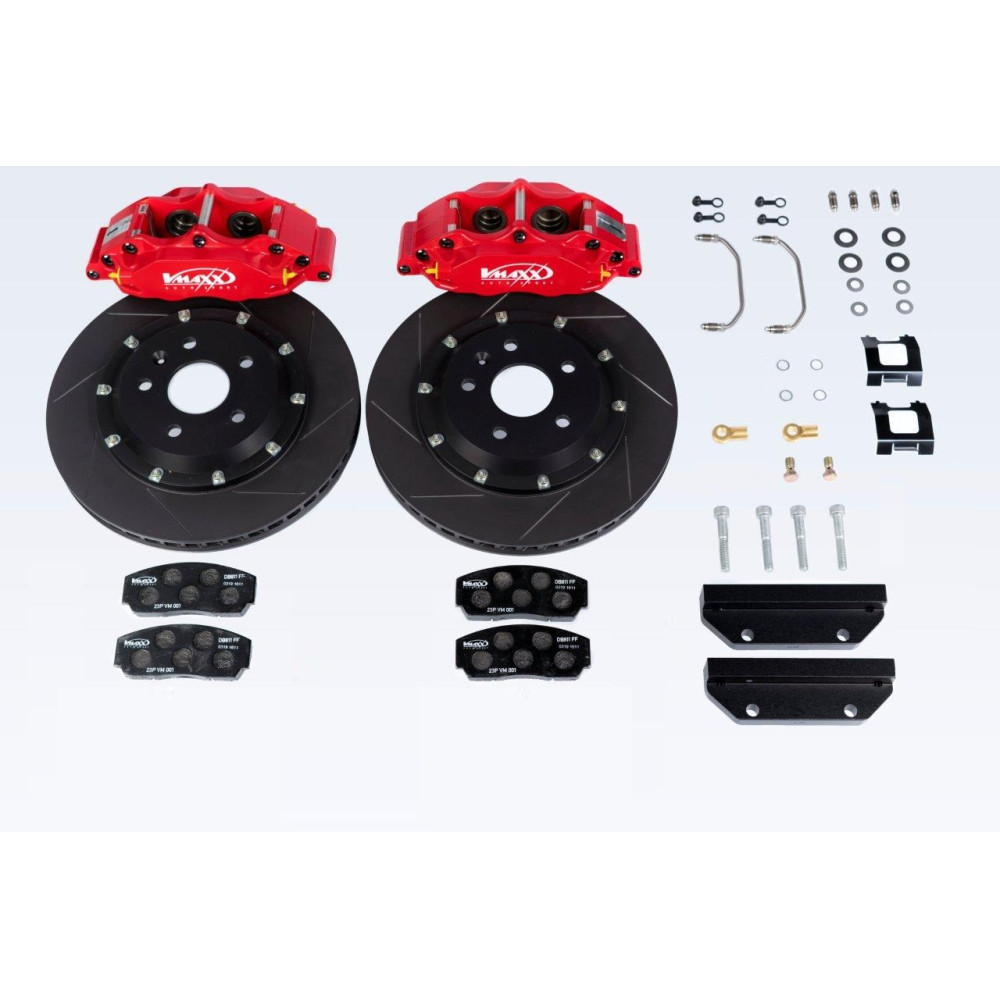

The big brake kit Transit Connect from V-Maxx is a complete brake kit for the front axle of the Ford Transit Connect and Tourneo Connect (PJ2/PU2) from model years 02-2013 to 05-2018. The kit consists of 330 mm two-piece, grooved brake discs, 4-piston calipers made of forged aluminium, V-Maxx sport brake pads with TÜV approval and the vehicle-specific adapters.

A loaded commercial vehicle or family van demands a lot from the brakes, especially under repeated hard braking or on long descents. This kit gives more braking power and keeps the braking behaviour consistent for much longer. It fits all versions from 55 to 110 kW, both before and after the facelift. V-Maxx Autosport is a Dutch manufacturer and the kit has a TÜV certificate according to §19.3, so it is approved for use on public roads.

Key benefits

• More braking reserve when loaded: 330 mm discs on the front axle
• Forged aluminium 4-piston calipers, red (RAL 3020) as standard
• Consistent braking behaviour under repeated hard braking and on long descents
• Two-piece, grooved discs made of high-carbon steel with directional cooling channels
• Ultra-light floating aluminium bells that dissipate heat quickly
• For the Transit Connect and Tourneo Connect, both before and after the facelift
• Ready to fit with sport brake pads with TÜV approval and adapters for the original rubber brake hoses
• TÜV §19.3 and a 2-year warranty

Suitable for

Ford Transit Connect and Tourneo Connect (PJ2/PU2), 02-2013 to 05-2018

• Ford Transit Connect (PJ2/PU2), 02-2013 to 05-2018: all versions from 55 to 110 kW, both pre-facelift and facelift versions
• Ford Tourneo Connect (PJ2/PU2), 02-2013 to 05-2018: all versions from 55 to 110 kW, both pre-facelift and facelift versions

Minimum wheel size: 17 inch. Check with the fitment template (WFC) whether the wheel clears the caliper; a wheel spacer is sometimes required.

Technical specifications

• Manufacturer: V-Maxx Autosport (Netherlands)
• Part number: 20 FO330 06
• Brake discs: 330 mm, two-piece, grooved, high-carbon steel with floating aluminium bell
• Calipers: 4-piston, forged aluminium, red (RAL 3020) as standard
• Brake pads: V-Maxx sport brake pads with TÜV approval
• Minimum wheel size: 17 inch
• Approval: TÜV §19.3
• Axle: front axle
• Included: calipers, brake discs with bells, brake pads and vehicle-specific adapters

Fitting and delivery

Fit the kit according to the V-Maxx fitting instructions supplied and observe the tightening torques given in those instructions. The kit only fits cars with original steering knuckles. Clean the brake kit with a mild soap; wheel cleaner attacks the aluminium and is therefore not suitable. If the van is also used on the track, V-Maxx recommends removing the dust seals from the calipers for heavy use.

Options: V-Maxx Steelflex steel braided brake hoses 500 mm (set of 2) with PTFE inner hose and TÜV approval, Ferodo brake fluid (500 ml), a V-Maxx wear indicator set, a different caliper colour (red RAL 3020 as standard; black, blue or yellow at extra cost) and an extra set of Ferodo FDSR216 DS Performance brake pads without TÜV approval. Delivery time: 4 to 7 days.

Loaded or empty, on the motorway or in the mountains: with 330 mm discs and forged 4-piston calipers, the Connect always has braking reserve.

Why choose this big brake kit Transit Connect?

For a commercial vehicle, what counts most is that the brakes keep performing the same way in all conditions. In this kit, the caliper, bracket and bell are made of aluminium, which conducts heat about five times better than steel, and the discs have directional cooling channels. As a result, the kit cools down quickly and the braking behaviour stays the same even after a series of heavy stops. With TÜV approval and a 2-year warranty from a Dutch manufacturer, it is a sound upgrade.

Frequently asked questions

Does the kit fit both the Transit Connect and the Tourneo Connect?

Yes. The big brake kit Transit Connect fits the Transit Connect and the Tourneo Connect (PJ2/PU2) from 02-2013 to 05-2018 with 55 to 110 kW, both before and after the facelift.

Can I use this kit on public roads?

Yes. The kit has a TÜV certificate according to §19.3 and is approved for use on public roads. This also applies with an officially approved power upgrade; the kW limits refer to the original output.

Which wheels do I need?

At least 17 inch. Check the clearance with the fitment template (WFC); a wheel spacer is sometimes required.

Does V-Maxx also offer a kit for the rear axle?

No. V-Maxx only supplies kits for the front axle; that is where about 90% of the braking power comes from.

What is the delivery time?

The delivery time is 4 to 7 days.
