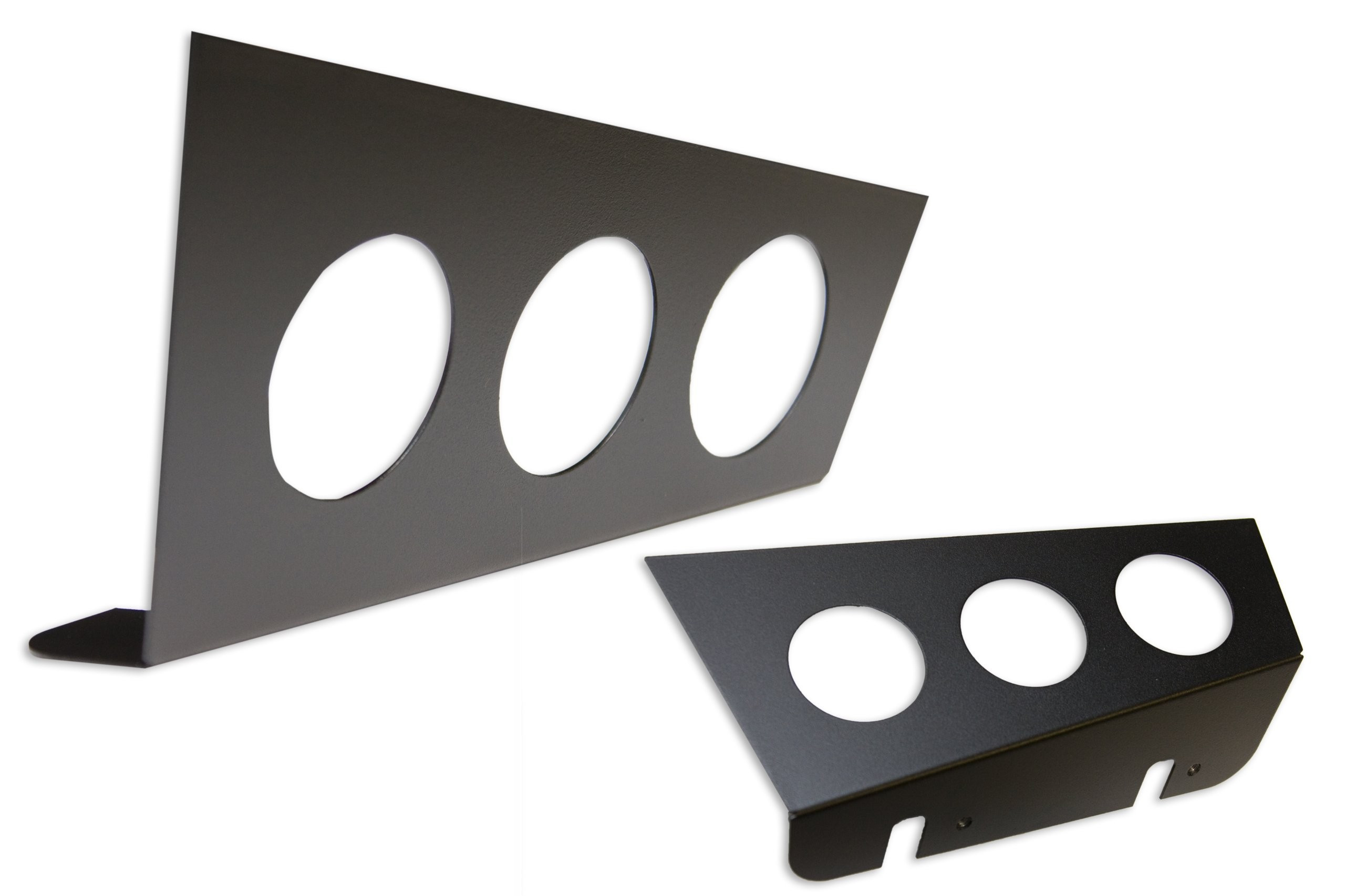

BMW E30 Extra Gauge Panel Adapter for VDO Gauges

With this extra gauge panel you give three additional gauges a fixed place in the interior of your BMW E30. The black plate has three holes for gauges with the standard diameter of 52 mm, such as the well-known VDO gauges. It sits below the heater and ventilation controls, right in your field of vision.

Especially with a turbo conversion, it is hard to find a tidy place for boost pressure, oil pressure or temperature gauges. This panel offers a clean, fixed solution instead of loose gauge pods.

Key benefits of this extra gauge panel

• Three holes for gauges with a diameter of 52 mm
• Suitable for VDO gauges and other gauges in the standard size
• Position below the heater controls, clearly in view
• Ideal for a turbo conversion or a drift car
• Laser-cut and bent on press brakes
• Finished in black
• Light: 0.3 kg

Suitable for

BMW 3 Series E30

• BMW E30
• Gauges with a diameter of 52 mm, for example VDO

Technical specifications

• Item number: 0076
• Application: mounting plate for extra gauges in the BMW E30
• Number of holes: 3
• Hole diameter: 52 mm
• Colour: black
• Production: laser-cut, bent on press brakes
• Weight: 0.3 kg
• Gauges: not included

Installation and delivery

The panel goes in the centre console of the E30, below the sliders and knobs of the heater. Fit the gauges in the three openings and route the wiring to the sensors and the lighting. Work with the battery disconnected and use a fuse in the power supply wire of the gauges.

Plan in advance which three values you want to see. On a turbo car, that is often boost pressure, oil pressure and oil or water temperature. On a naturally aspirated drift car, you are more likely to choose oil pressure, oil temperature and water temperature. Keep sensor lines away from hot parts and moving components.

Preferably choose gauges from the same series, so that the lighting and the dials match. Connect the lighting to the dashboard lighting circuit, so the gauges dim along with the rest of the interior. Test everything before you fix the panel in place for good, so you do not have to remove it again.

If you use the extra gauge panel in a track car, put the most important gauge in the middle. That way you notice abnormal oil pressure or temperature out of the corner of your eye, even when you are busy steering and changing gear.

You will find matching gauges and sensors in our gauges and sensors category.

Three gauges in a fixed place, exactly where you see them while driving.

Why choose this extra gauge panel?

Loose gauge pods on the steering column or the A-pillar vibrate, get in the way and rarely look tidy. This panel is made for the E30 and gives three 52 mm gauges a fixed place in the centre console. Light, clean and hassle-free, ideal for a turbo conversion or a built-up drift car.

Frequently asked questions

How many gauges does it hold?

Three gauges with a diameter of 52 mm.

Are the gauges included?

No, you only buy the extra gauge panel. You order gauges and sensors separately.

Where does the panel go in the car?

Below the heater and ventilation controls, in the centre console of the E30.

Do other brands of gauges fit as well?

Yes, as long as the gauges have the standard diameter of 52 mm.

Is the extra gauge panel suitable for a turbo E30?

Yes, that is exactly what it was designed for. With a turbo conversion you want to be able to see boost pressure and oil values, and this panel gives those gauges a tidy place.

How heavy is the panel?

Approximately 0.3 kg.
