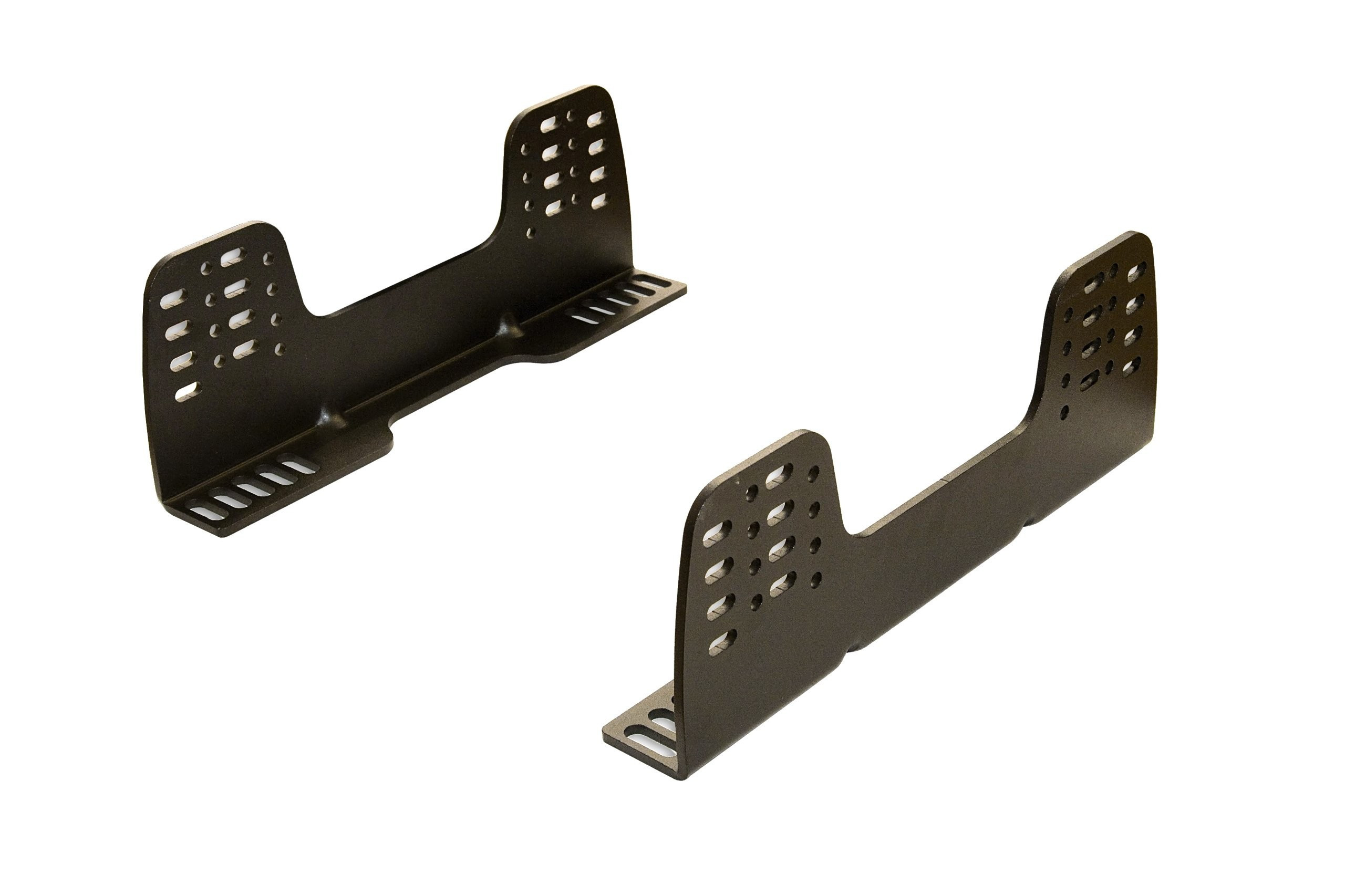

Reinforced Aluminium Bucket Seat Mount According to FIA Appendix J

This reinforced aluminium bucket seat mount is a set of side mounts for a bucket seat, made of 6 mm aluminium. The two brackets are black powder-coated, have extra pressed ribs and are made according to FIA Appendix J. They therefore meet the FIA requirements for seat mounts.

The set is intended for motorsport cars in drift, rally, time attack, quarter mile and track-focused builds. Aluminium keeps the weight low, while the extra ribs make the brackets stiffer for heavier use.

Key benefits of this reinforced aluminium bucket seat mount

• 6 mm aluminium: light yet sturdy
• Extra pressed ribs for more strength under heavy use
• Made according to FIA Appendix J
• Set of 2 brackets, enough for one seat
• Lots of mounting holes to set the seat height and angle properly
• Universal for seats with mounting points at the side
• Black powder-coated, bent on CNC press brakes

Suitable for

Bucket seats with side mounting

• Any bucket seat with mounting points at the side
• Motorsport cars for drift, rally, time attack and quarter mile
• Track day and club sport cars

For the connection between the brackets and the floor of the car you will also need, depending on the model, a suitable seat frame or seat runners.

Technical specifications

• Item number: 0043
• Type: side mount for a bucket seat
• Material: aluminium, 6 mm thick
• Reinforcement: extra pressed ribs
• Colour: black, powder-coated
• Production: bent on CNC press brakes
• Standard: made according to FIA Appendix J
• Contents: 2 brackets (for 1 seat)
• Weight: 1.9 kg

Installation and delivery

The reinforced aluminium bucket seat mount is fixed to the sides of the bucket seat via the seat’s mounting points. Thanks to the many holes you choose the seat height and angle yourself. First put the seat loosely in the car, sit in it with your helmet on and check the distance to the steering wheel, pedals and roof before you choose the final holes.

Use bolts of a good strength grade with washers and lock nuts, and tighten them to the correct torque. Check the mounting regularly, especially after a race day. Also check in the regulations of your class which requirements apply to the seat, the brackets and the mounting to the body.

You will find more seat mounts in our bucket seat frames category. If you prefer steel, there is our reinforced steel bucket seat mount.

Light aluminium, extra ribs and made according to FIA Appendix J: a seat mount you should not underestimate.

Why choose this reinforced aluminium bucket seat mount?

You get a complete set for one seat, made of 6 mm thick aluminium with extra ribs for heavy motorsport use. The many holes make a good seating position easy, and the brackets are made according to FIA Appendix J. Light, sturdy and neatly finished in black.

Frequently asked questions

How many brackets are in the set?

The reinforced aluminium bucket seat mount consists of two brackets, enough for one seat.

Does the reinforced aluminium bucket seat mount fit my seat?

Yes, if your seat has mounting points at the side. The brackets are universal.

Is the mount FIA-approved?

The brackets are made according to FIA Appendix J and meet the FIA requirements. Always check the regulations of your own class as well.

How thick is the aluminium?

The reinforced aluminium bucket seat mount is made of 6 mm aluminium, with extra pressed ribs.

Can I adjust the seat height later?

Yes. Thanks to the many mounting holes in this reinforced aluminium bucket seat mount, you can later set the seat higher, lower or at a slightly different angle, for example when another driver is going to use the car.

What is the difference with the steel version?

This version is made of 6 mm aluminium and weighs 1.9 kg. The steel version is made of 3 mm steel and is heavier.

Delivery outside the European Union: different shipping costs may apply. Don’t worry: we will email you as soon as possible after your order and agree the shipping with you. You are not committed to anything without your consent.
