Description

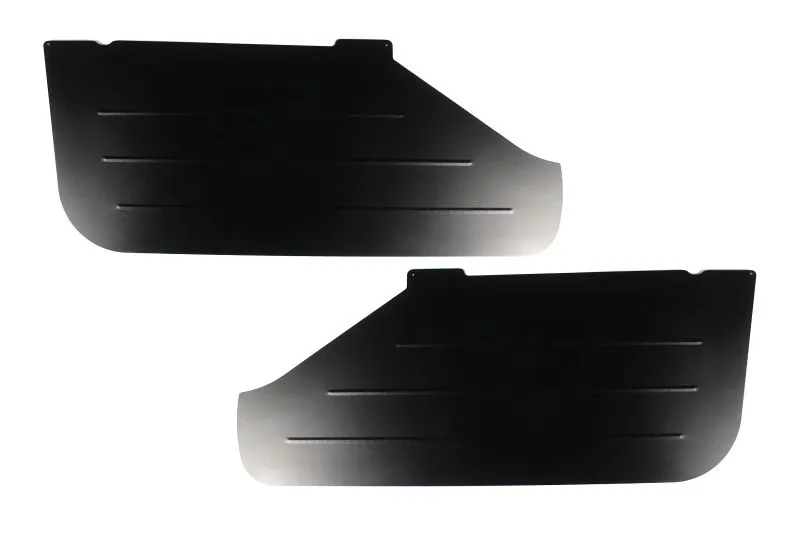

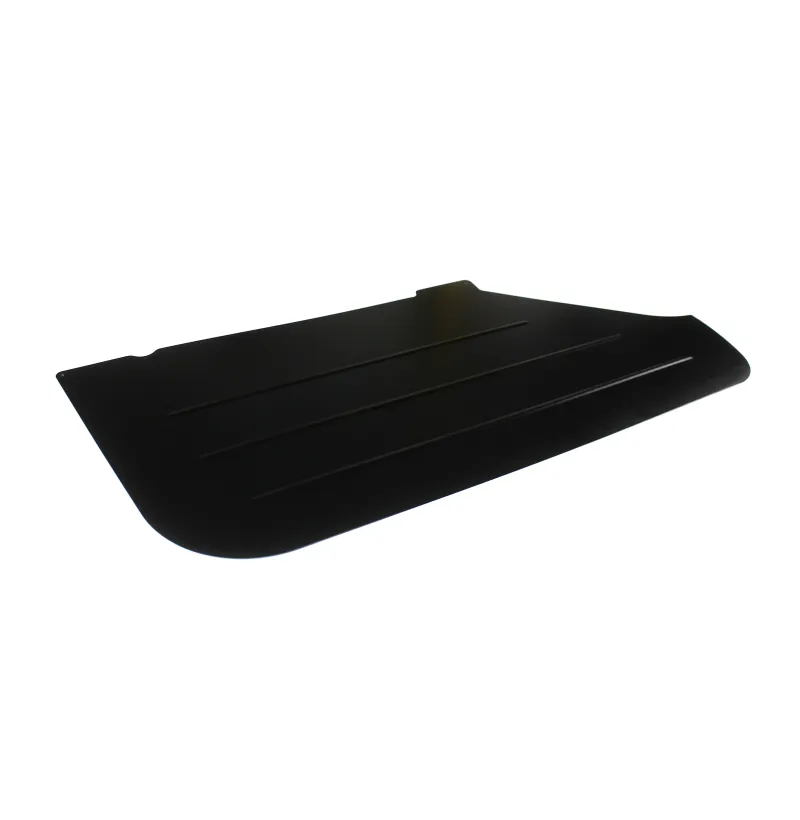

BMW E46 Coupé 3/4 Door Panels

These E46 coupe half door panels are light aluminium panels that replace the lower part of the door trim of a BMW E46 coupé. They are so-called 3/4 panels: they cover the door below the original upper trim. Each one weighs 0.9 kg.

They are made for anyone who wants to make their E46 coupé lighter and sportier for drift or track use, without leaving the door bare. On laminate (composite) doors, the panels also add extra stiffness.

Key benefits of these E46 coupe half door panels

• Light: 0.9 kg per panel
• Made of 1 mm aluminium
• Half-height (3/4) design below the original upper trim
• Powder-coated black on one side
• Stiffens laminate doors
• CNC-cut for a neat fit
• Supplied as a pair for both doors

Suitable for

BMW 3 Series E46 coupé

• BMW E46 coupé, left and right door

The example photos were taken on an E46 coupé. Separate panels for the front and rear doors are available for the E46 saloon.

Technical specifications

• Item number: 0196
• Type: half (3/4) door panels, door trim
• Material: aluminium
• Thickness: 1 mm
• Weight: 0.9 kg per panel
• Finish: powder coating on one side, black
• Production: cut on CNC machines
• Supplied: per pair
• Mounting: your choice, rivets or self-tapping screws recommended

Installation and delivery

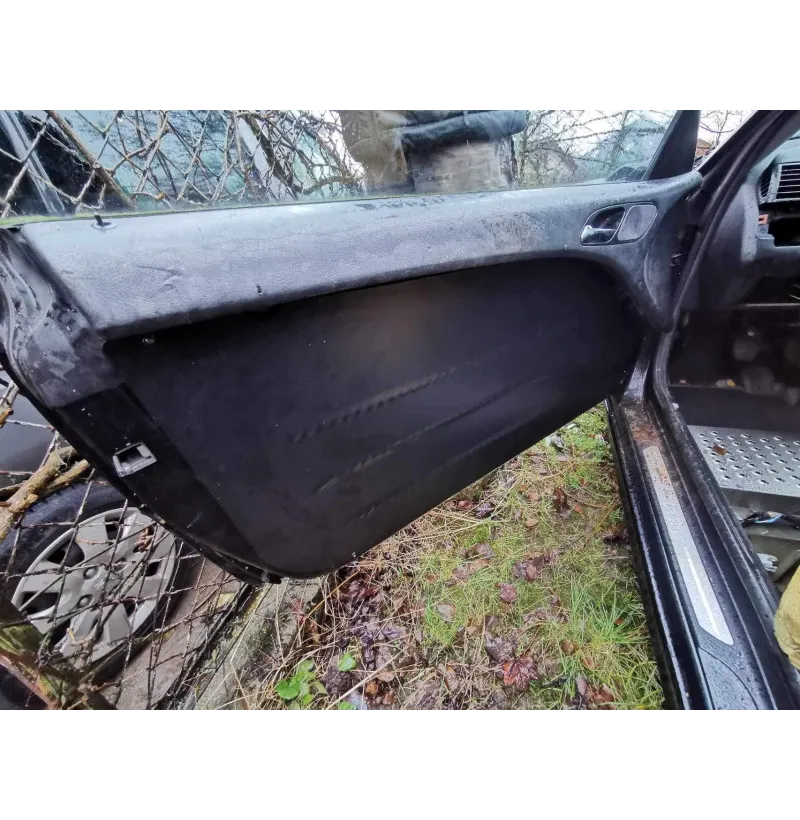

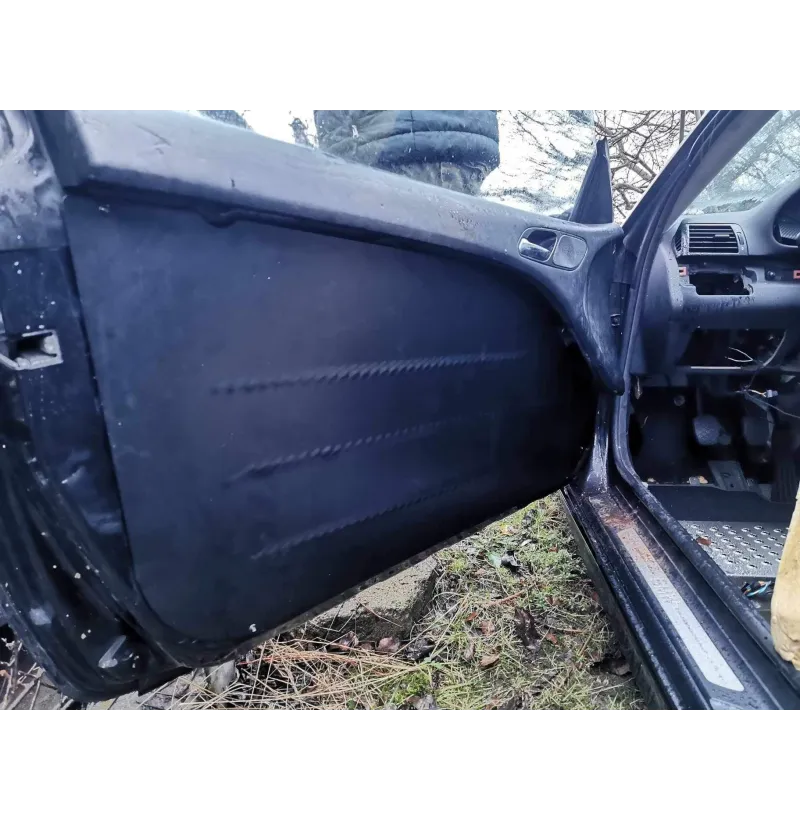

When fitting the E46 coupe half door panels, the upper part of the original door trim with the handle stays in place, as in the photos; the aluminium panel replaces the lower part. Hold the panel against the door, check how it lines up with the upper trim and mark the mounting points. The manufacturer leaves the fixing method up to you: rivets or self-tapping screws are recommended.

Pre-drill, deburr the holes and put a little sealant or foam tape between the door and the panel if you want to prevent rattles. Also check that the window mechanism and the door handle can still move freely.

You will find all other panels in our lightweight door panels category, including sets for the E46 saloon and other BMW models.

Lighter than the original, neater than a bare door: this gives the E46 coupé a real race interior.

Why choose these E46 coupe half door panels?

Full aluminium door cards make an interior look very bare. With these E46 coupe half door panels you keep the original upper part with the handle, while saving weight lower down. That gives a clean, finished look that suits a drift car that still goes on the road. Because the panel also makes the door stiffer, it is a logical choice for laminate doors.

The E46 coupé is one of the most widely used BMWs in drifting. Many drivers strip the interior step by step: first the rear seat, then the carpet and finally the door trim. With the E46 coupe half door panels you take that last step without the interior looking unfinished. You can easily combine them later with other aluminium parts from our range.

Frequently asked questions

What does 3/4 door panel mean?

It is a half-height panel. It replaces the lower part of the door trim; the original upper part stays in place.

How many panels do I get?

A pair: one for the left and one for the right door.

How heavy are the panels?

Each panel weighs 0.9 kg.

Do the E46 coupe half door panels also fit a saloon?

No. The saloon has different doors. For that we have separate panels for the front and rear doors.

Can I refit the original door trim later?

Only if you did not cut down the original trim during fitting and you have kept the parts.

How do I fit them?

With rivets or self-tapping screws. Which method you choose is up to you.
