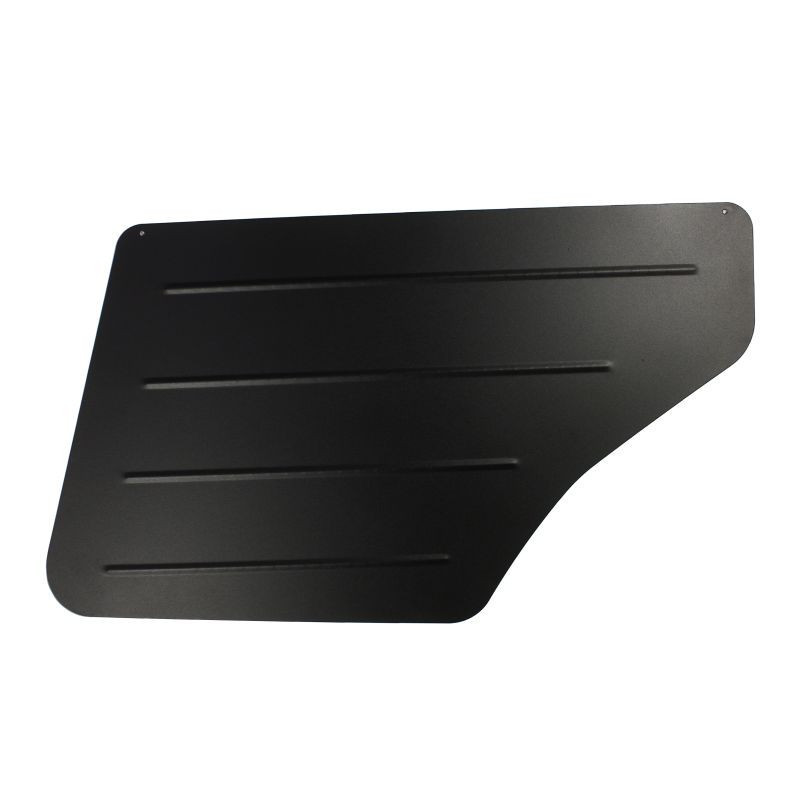

BMW E92 Coupé Rear Side Panels

These aluminium E92 rear side panels replace the rear side trim of the BMW E92 coupé, the section next to the rear seat, directly behind the door. The panels are made of 1 mm thick aluminium and weigh only 0.74 kg each. Ideal for drift, rally and track cars in which the heavy original trim has to make way for something lighter.

Besides a clean, sporty look, the panels also have a practical function: they help prevent smoke and dust from the wheel arches from entering the interior. In a drift car with lots of tyre smoke, that is no unnecessary luxury.

Key benefits of these E92 rear side panels behind the coupé door

• 1 mm aluminium, light and sturdy
• Only 0.74 kg per panel
• Powder-coated on one side for a neat finish
• Keeps smoke and dust from the wheel arches out of the interior
• CNC-cut for an accurate fit
• Fastening of your choice, pop rivets recommended
• Supplied as a set for left and right

Suitable for

BMW 3 Series E92 coupé, rear

• BMW 3 Series E92 coupé, left and right rear side panel
• Drift, rally and track cars with a bare or lightweight interior

Technical specifications

• Item number: 0172
• Application: rear side trim (next to the rear seat)
• Material: aluminium, 1 mm thick
• Finish: powder-coated on one side
• Production: CNC-cut
• Weight: 0.74 kg per panel
• Contents: rear set (left and right)

Installation and delivery

How you fasten the E92 rear side panels is up to you. We recommend pop rivets: they are quick to fit and hold firmly. First remove the original rear side trim, put the panel in place and mark the fixing points. Pre-drill, deburr the holes and protect the bare metal against rust before you fix the panel.

Work carefully around the seat belt mountings and the cables running behind the trim, and check that the coupé door still closes properly once the panels are in. If you want to do the front at the same time, there are the matching aluminium front door panels for the E92 coupé.

You will find all lightweight panels for doors and sides in the door panels category.

Less than 0.8 kg per side, and the smoke from the wheel arches stays out.

Why choose aluminium E92 rear side panels behind the coupé door?

These aluminium panels are light, neatly finished and close off the opening to the wheel arches, so smoke and dust stay out. You get a clean and functional race interior that suits the character of a drift or track car.

Combine the E92 rear side panels with the front panels for an interior finished in the same style from front to back. Because they are cut on CNC machines, left and right are exactly symmetrical.

If you want the panels in a different colour, you can have them painted or powder-coated yourself. That way you can match them to the colour of the roll cage or the seats.

Frequently asked questions

Where exactly do these panels go?

The E92 rear side panels go behind the coupé door, in place of the original side trim next to the rear seat.

How heavy is a panel?

A panel weighs 0.74 kg. It is made of 1 mm aluminium.

How do I fasten the panels?

As you prefer. Pop rivets are recommended, so that the E92 rear side panels are held firmly in place.

Are the front panels included?

No, this set is for the rear, not for the coupé door itself. The front panels are sold separately.

Why do they keep out smoke and dust?

The panels close off the openings to the wheel arches, so tyre smoke and dust are less likely to enter the interior.
