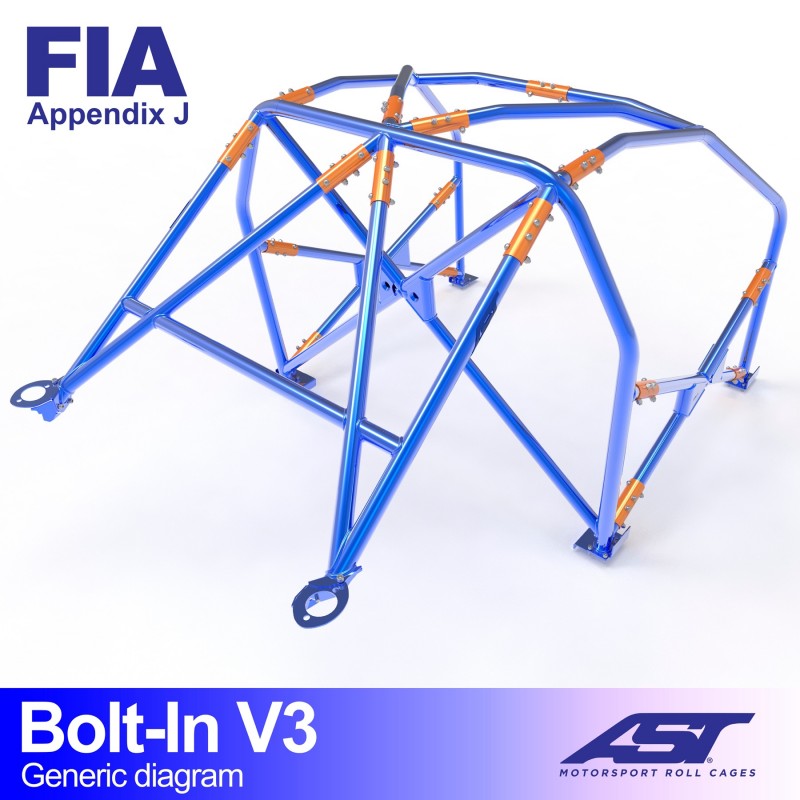

AST Bolt-in Roll Cage BMW E21 Coupé V3

The AST Bolt-in Roll Cage BMW E21 Coupé V3 is a full roll cage for the BMW 3 Series E21 with 2-door coupé bodywork. In addition to the front reinforcement bars, this Bolt-in E21 Coupé V3 adds door bars on both the driver’s and the passenger’s side, covering the side-impact part of the story.

The cage is designed and built by AST Roll Cages in Spain, for drivers who take part in competitions and are looking for a level of equipment that goes beyond rollover protection alone.

Key benefits

• Door bars on the left and right, the big difference from the lower versions.
• Side protection at the point where a compact two-door has the least crumple zone.
• Front reinforcement bars to the bulkhead, carried over from version V2.
• E355 steel: main hoop 45 mm, rest of the structure 40 mm.
• FIA homologation according to AST: A-5623, A-5620, A-5100, A-5093 and A-5014, valid for the BMW 316, 320, 320i, 320/6 and 323i.
• Six bolting points on six 3 mm steel foot plates welded to the bodyshell.
• Complete package with connecting sleeves, reinforcement plates, mounting hardware, instructions and a sticker set.

Suitable for

BMW 3 Series E21, 2-door Coupé

• BMW 3 Series E21 (1975 to 1983), 2-door Coupé
• Type: full bolt-in roll cage, version V3
• FIA homologation as stated by AST applies to the BMW 316, 320, 320i, 320/6 and 323i
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN06865
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, bolt-in, split into sections via connecting sleeves
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 6 bolting points on 6 foot plates welded to the bodyshell
• Added compared with V2: door bars on the driver’s and passenger’s side
• FIA homologation numbers: A-5623, A-5620, A-5100, A-5093 and A-5014 (as stated by AST Roll Cages, for the BMW 316, 320, 320i, 320/6 and 323i)
• Weight: 210 kg (manufacturer’s figure)
• Finish: welded and unpainted, in sections via connecting sleeves
• Included: welded structure, connecting sleeves, reinforcement plates, bolts, washers, nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. Bear in mind that door bars change the way you get in and out, and that you should check the door cards and window mechanism beforehand. The six foot plates are welded to the bodyshell and the structure is then bolted in place. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that it fits your car exactly.

With version V3, the protection extends to the sides, exactly where the compact E21 has the least material between you and the outside world.

Why choose this Bolt-in E21 Coupé V3 roll cage?

Under many regulations, a door bar is the point at which a car goes from fast road car to competition car. This version gives you those bars on the left and right, on top of the front reinforcement to the bulkhead, while keeping the removable construction with connecting sleeves. That makes it suitable for anyone who drives a lot but still wants to return the car to standard every now and then.

Frequently asked questions

Can I keep my door cards?

That depends on how you are building the car. A door bar runs through the space occupied by the original panel, so check the clearance at the panel, the window guide and the door handle of your E21 beforehand.

How does this Bolt-in E21 Coupé V3 differ from the V4?

The V3 has the door bars; the V4 adds an extra diagonal brace and a harness bar. If side protection is all you are after, the V3 is the logical choice.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
