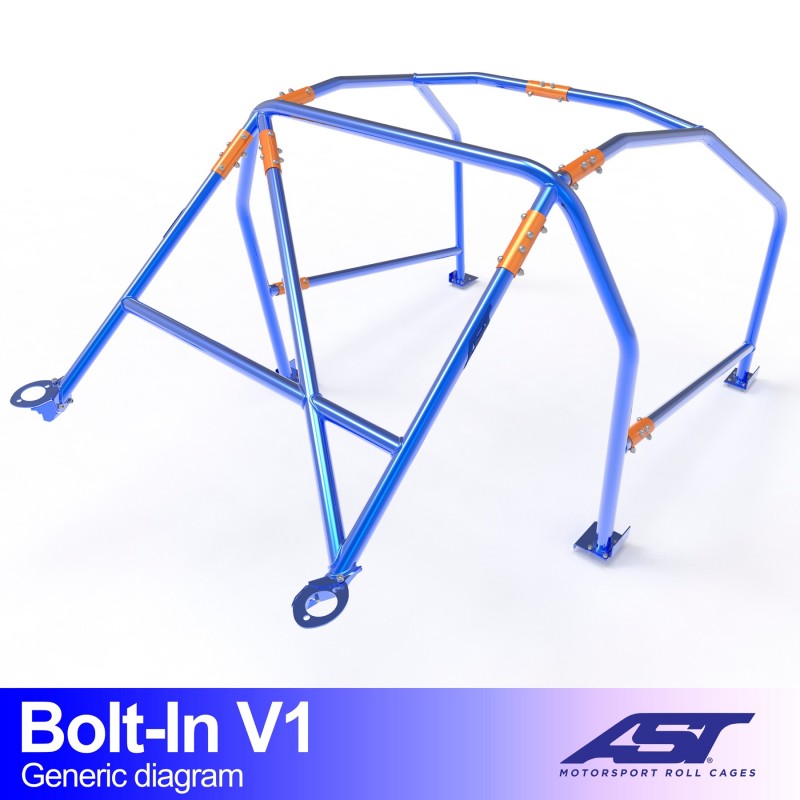

AST Bolt-in Roll Cage Nissan Silvia S15 Coupé V1

The Bolt-in S15 Coupé V1 is a full roll cage from AST Roll Cages for the Nissan Silvia S15 with two-door Coupé bodywork. The structure covers both the rear and the front compartment and is bolted in at six points, each on a foot plate welded to the bodyshell.

What sets this version apart is the rear anchorage. It is not at the wheel arch or in the boot, but in the rear suspension area: the point where the multi-link suspension of the S15 feeds its forces into the bodyshell. As a result, the cage contributes to how the rear axle behaves rather than just to safety.

The sections are joined with FIA connecting sleeves. The V1 is the basic version. The cage is supplied unpainted.

Key benefits

• Anchorage in the rear suspension area, where the multi-link suspension transmits its forces
• FIA connecting sleeves between the sections, so the cage remains removable
• Six bolting points on six foot plates welded to the bodyshell
• Full structure extending into the front compartment
• E355 steel, 45 mm main hoop and 40 mm for the other tubes
• Laser scan of each bodyshell for a fit with no corrective work
• Supplied unpainted, ready for your own finish

Suitable for

Nissan Silvia S15, two-door Coupé

• S15 Spec-R and Spec-S, rear-wheel drive
• Roofs without a sunroof
• Roofs without headlining
• Track days, drifting and track use

Technical specifications

• Manufacturer: AST Roll Cages
• Part number: CMBN05679
• Material: E355 steel
• Main hoop tube diameter: 45 mm
• Secondary structure tube diameter: 40 mm
• Foot and reinforcement plates: 3 mm steel, custom-made for each car
• Mounting: 6 bolting points on 6 foot plates welded to the bodyshell
• Construction: divided into sections via FIA connecting sleeves
• Weight: 210 kg
• Finish: unpainted
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Included: welded structure, connecting sleeves, reinforcement plates, bolts, washers, nuts, documentation, fitting instructions and sticker set

Fitting and delivery

Do not assume that a bolt-in cage is fitted without welding. The six foot plates are welded to the bodyshell, and only then is the cage bolted onto them. Precisely because the anchorage is in the rear suspension area, that welding has to be right: that is where the load from the rear axle comes straight in.

The interior has to come out before fitting. Every cage is custom-built after you order, with a delivery time of 15 to 35 working days.

Anchored where the rear axle transmits its forces, and removable again with a spanner.

Why choose this Bolt-in S15 Coupé V1?

The multi-link rear suspension of an S15 does exactly what you ask of it as long as the subframe and the surrounding bodyshell keep their shape. A cage anchored there holds that shape in place. The fact that you can also dismantle the structure again thanks to the FIA connecting sleeves makes the step far less final than a weld-in cage. For an S15 that may still change roles, that is often exactly the right trade-off.

Frequently asked questions

Is this a half or a full roll cage?

A full roll cage, bolted in at six points and extending into the front compartment.

Is welding required during fitting?

Yes. The six foot plates are welded to the bodyshell; only the Bolt-in S15 Coupé V1 itself is bolted onto them. Have that welding done by a professional.

Where is this cage anchored at the rear?

In the rear suspension area. This is a fixed feature of this item, not an option you choose when ordering.

Does this cage fit an S15 with a sunroof or headlining?

No. This version is built for a roof without a sunroof and without headlining.

Is this roll cage homologated?

AST does not state an FIA homologation number for this item, even though FIA connecting sleeves are used. The cage is intended for track and competition use; check the regulations of your own organiser.
