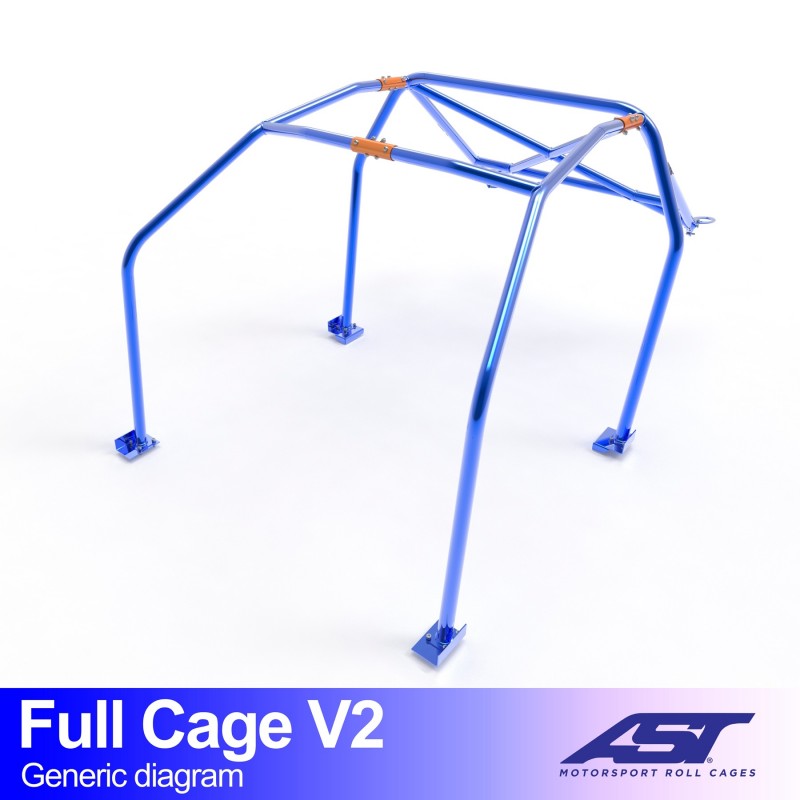

AST Full Roll Cage BMW E46 Coupé V2

The AST Full Roll Cage BMW E46 Coupé V2 is a full roll cage for the BMW 3 Series E46 with 2-door coupé bodywork. This full roll cage E46 Coupé V2 consists of the basic structure of the V1, supplemented by front reinforcement bars to the bulkhead.

The cage is designed and built by AST Roll Cages in Spain, for drivers who push their E46 Coupé hard and want the front of the car to work together with the cage instead of moving independently.

Key benefits

• Front reinforcement bars to the bulkhead, on top of the V1 base.
• Six bolting points on six welded 3 mm steel foot plates.
• Stiffer front end, which sharpens the steering response.
• E355 steel, 45 mm main hoop and 40 mm for the other tubes.
• Designed for each body style: this version is exclusively for the 2-door Coupé.
• Supplied in sections joined by connecting sleeves for easier assembly.
• Unpainted, with reinforcement plates, mounting hardware and fitting instructions.

Suitable for

BMW 3 Series E46, 2-door Coupé

• BMW E46 Coupé, years of manufacture 1998 to 2006
• Type: full roll cage, version V2
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN00624
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: at the wheel arch
• Rear structure layout: X design
• Type: full roll cage, fixed to welded foot plates
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 6 bolting points on welded foot plates
• Weight: 210 kg (manufacturer’s figure)
• Finish: welded and unpainted, split into sections via connecting sleeves
• Included: welded structure, connecting sleeves, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. Bear in mind that the front bars take up space in the footwell area, so plan any dashboard work in advance. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that it fits your car exactly.

The front bars make the difference: the cage and the front end become a single unit.

Why choose this Full roll cage E46 Coupé V2?

The E46 Coupé is fairly rigid in standard form, but under competition loads the front of the bodyshell flexes. Extending the bars to the bulkhead limits that movement and makes the car feel tighter on turn-in. You notice this above all on tight circuits with lots of changes of direction.

Frequently asked questions

What does the V2 add compared with the V1?

The full roll cage E46 Coupé V2 has front reinforcement bars that run to the bulkhead. The V1 does not have these and is limited to the main hoop with braces.

Can the dashboard stay in?

That depends on your car’s specification and the options chosen. Because the bars extend forwards, it is always wise to trial-fit and measure in the footwell before you refit the interior.

Is this roll cage homologated?

No homologation number is listed for this item in the manufacturer’s documentation. The cage is intended for track and competition use; check the regulations of your own motorsport governing body.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
