AST Multipoint Weld-in Roll Cage BMW E34 Touring V4

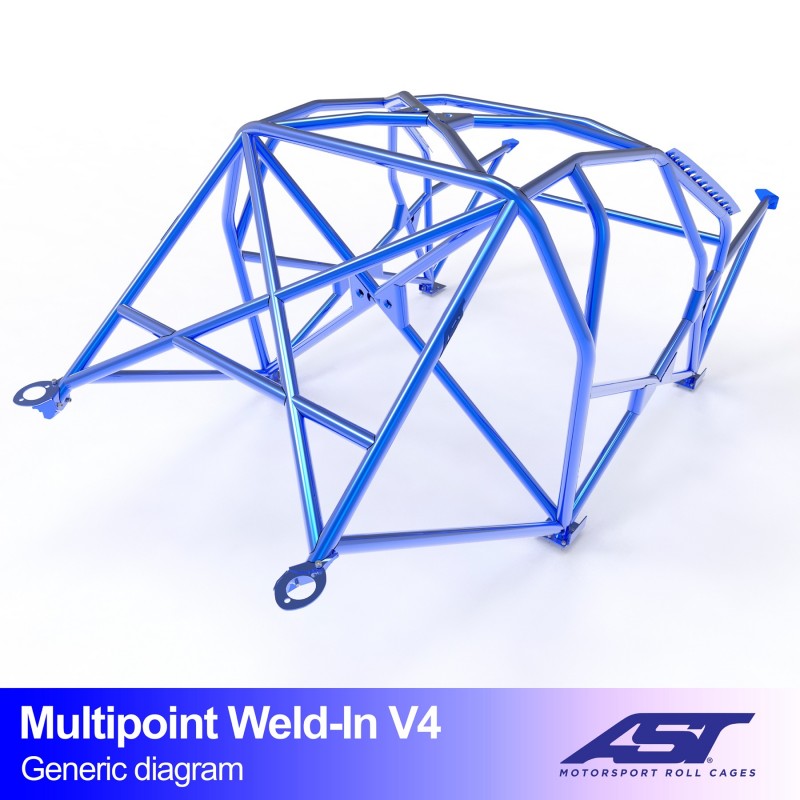

The AST Multipoint weld-in roll cage V4 for the BMW E34 Touring is a full roll cage for the BMW 5 Series E34 with 5-door Touring bodywork. The Multipoint E34 Touring V4 builds on the V3 with an extra diagonal brace and a harness bar, so that the main hoop is better protected against deformation and the harness has a fixed anchorage point.

The cage is designed and built by AST Roll Cages in Spain, for drivers who are fitting their E34 Touring with a bucket seat and a multi-point harness and no longer want to rely on the original body mounting points to anchor the harness.

Key benefits

• Harness bar gives the shoulder straps a correct, solid anchorage point behind the seat.
• Extra diagonal brace keeps the main hoop in shape in an impact or a rollover.
• Door bars and the front bars to the bulkhead are all included.
• Ten welded mounting points, more than the eight of a regular weld-in cage, for a more rigid bodyshell.
• Touring only: the cage follows the five-door E34 bodyshell and will not fit a saloon.
• E355 steel, 45 mm for the main hoop and 40 mm for the rest.
• Complete weld-in kit with gussets, reinforcement plates, mounting hardware, documentation, fitting instructions and a sticker set.

Suitable for

BMW 5 Series E34, 5-door Touring

• BMW 5 Series E34 Touring (1988 to 1996)
• Type: multipoint weld-in roll cage, version V4
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN04034
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: X design
• Type: full roll cage, multipoint weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 10 welded mounting points on the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers, nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. Decide where your seats will go before welding, as the height of the harness bar depends on the driver’s shoulder height. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that it fits your car exactly.

The V4 is the first version in which you can build up harness, seat and cage as a single unit.

Why choose this Multipoint E34 Touring V4 roll cage?

A multi-point harness is only as good as the point it is anchored to. With the harness bar in this version there is nothing to improvise: the harness is attached to a bar that is part of the cage structure. The extra diagonal brace also ensures that the main hoop keeps its shape, which is exactly what makes the difference in a rollover.

Frequently asked questions

What is the harness bar for?

The harness bar in the Multipoint E34 Touring V4 runs behind the seats and is intended as a mounting point for the shoulder straps of a multi-point harness. This way the harness is attached to the cage and not to the original sheet metal.

Can I upgrade to the V5 later?

No, this is a welded-in structure that is built as a whole. If you want the complete set of bars, go straight for the V5. If you are unsure about the room to get in, take a look at the same version with NASCAR door bars.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.

Delivery outside the European Union: different shipping costs may apply. Don’t worry: we will email you as soon as possible after your order and agree the shipping with you. You are not committed to anything without your consent.
