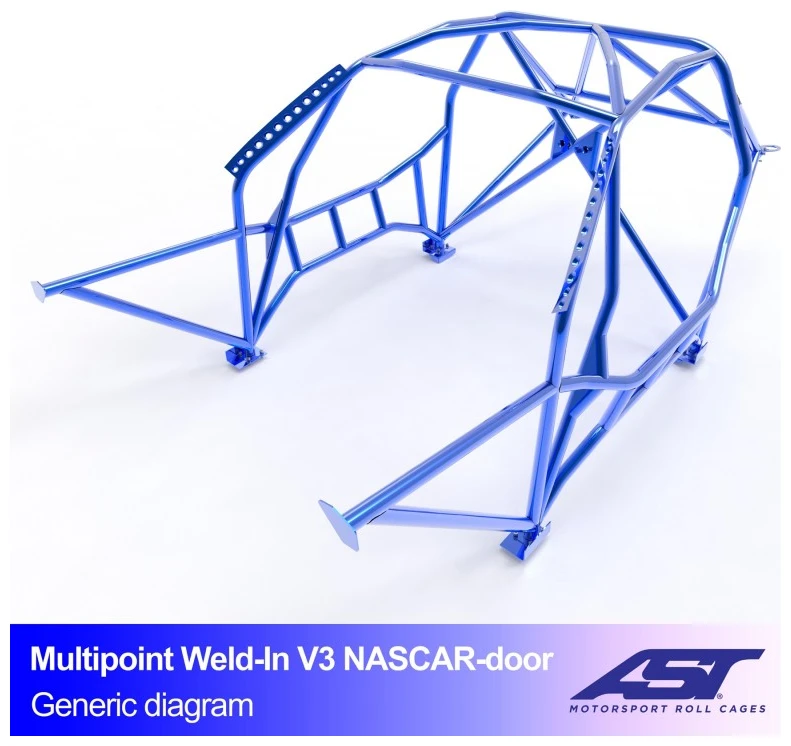

AST Multipoint Weld-in Roll Cage BMW E87 V3 NASCAR door

The AST Multipoint Weld-in Roll Cage BMW E87 V3 NASCAR Door Bars is a full roll cage for the BMW 1 Series E87 with five-door hatchback bodywork. This Multipoint E87 V3 NASCAR is the first version in the range with door bars, which here take the form of several curved tubes in the door.

The cage is designed and built by AST Roll Cages in Spain, for drivers who are stepping up from a bare basic cage to a build with genuine side protection.

Key benefits

• Ten welded mounting points anchor the structure to the bodyshell at more locations than a standard weld-in cage.
• Front reinforcement bars extend to the bulkhead and tie the front suspension more firmly to the cage.

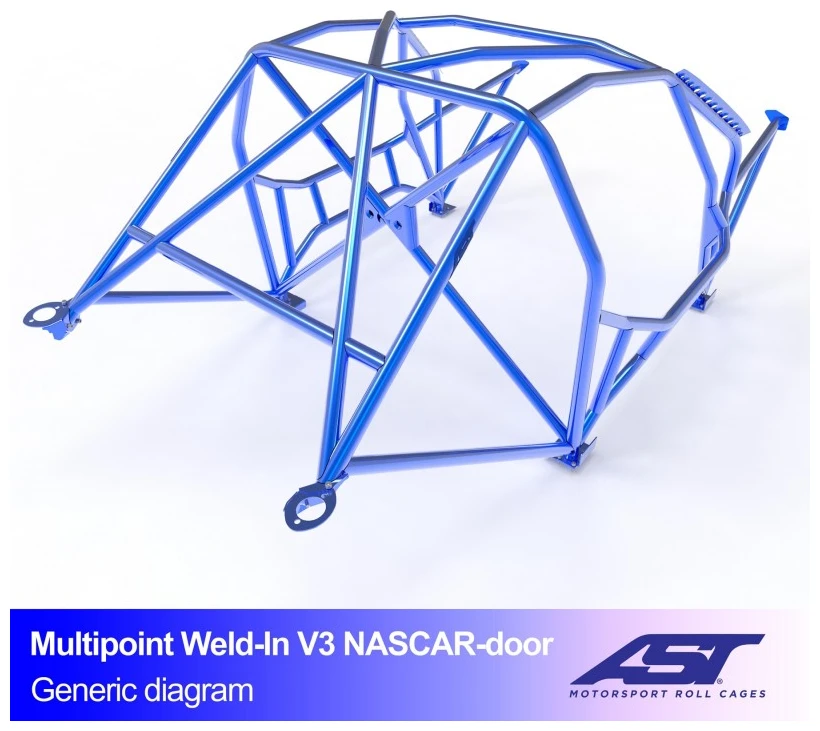

• NASCAR door bars instead of a single straight door bar, with several curved tubes per door.
• Entry space is preserved because the tubes follow the shape of the door.
• First level with door bars for anyone who uses their E87 specifically for drifting and takes side impacts seriously.
• E355 steel with a 45 mm main hoop and 40 mm for the remaining tubes.
• Custom-designed for each car from a laser scan of the bodyshell.

Suitable for

BMW 1 Series E87, five-door hatchback

• BMW 1 Series E87 five-door hatchback, model years 2004 to 2011
• Type: multipoint weld-in roll cage, version V3 with NASCAR door bars
• Not suitable for the three-door E81 or the E82 coupé: AST designs a separate cage for each body style, and these are not interchangeable
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN03615
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, multipoint weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 10 welded mounting points on the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that it fits your car exactly. Bear in mind that the inner door cards will need to be modified or removed to give the NASCAR tubes clearance.

The V3 adds the door bars, and in the NASCAR version they are curved so that you can still climb in behind the wheel without any trouble.

Why choose this Multipoint E87 V3 NASCAR roll cage?

The V3 is the point at which a roll cage starts to offer real protection from the side. The ten welded mounting points anchor the structure firmly in the bodyshell, and the NASCAR tubes fill the door with steel without turning getting in into a struggle. For a drift car that mostly takes hits from the side, that is a smarter choice than a single straight bar.

Frequently asked questions

What exactly are NASCAR door bars?

Instead of the standard straight door bar, AST fits several curved tubes in the door. These provide more side protection while leaving more room for getting in and out.

Does this cage also fit a BMW E81 or E82?

No. The Multipoint E87 V3 NASCAR is designed for the five-door E87. The three-door E81 and the E82 coupé have a different bodyshell and have their own version; the cages are not interchangeable.

Is this item FIA-homologated?

AST does not state a homologation number for this item. The cage is intended for track and competition use; check the regulations of your own federation or organiser before you line up at the start with it.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
