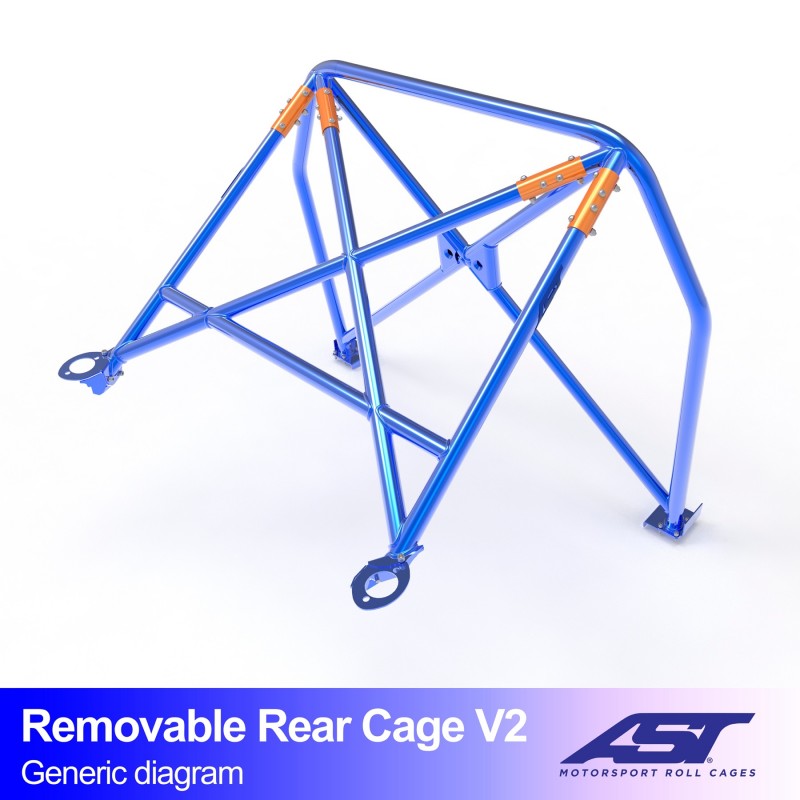

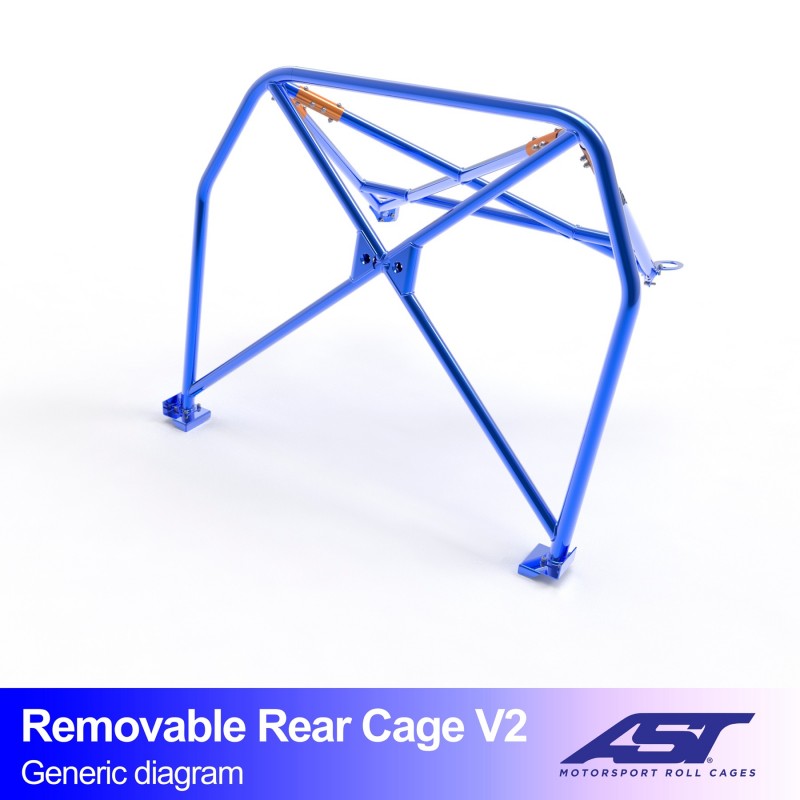

AST Removable Half Roll Cage BMW E46 Coupé V2

The AST Removable Half Roll Cage BMW E46 Coupé V2 is a half roll cage for the BMW 3 Series E46 with 2-door coupé bodywork. This removable E46 Coupé V2 half cage has more bars than the V1 and can still be taken out of the car in sections via the connecting sleeves.

The cage is designed and built by AST Roll Cages in Spain for drivers who want to get the most out of a half cage while keeping the option of taking it out of the car again.

Key benefits

• More extensive set of bars than the V1, so more rigidity at the rear.
• Removable via connecting sleeves, without any need for grinding.
• Four bolting points on four welded foot plates made of 3 mm steel.
• E355 steel, 45 mm main hoop and 40 mm for the other tubes.
• Tailored to the 2-door Coupé of the E46, thanks to a 3D design based on laser scans.
• Everything up front stays usable, as the cage sits in the rear compartment.
• Supplied complete with sleeves, reinforcement plates and mounting hardware.
• Available for cars with and without a sunroof and with and without headlining – you choose this when ordering

Suitable for

BMW 3 Series E46, 2-door Coupé

• BMW E46 Coupé, years of manufacture 1998 to 2006
• Type: half roll cage, version V2, removable via connecting sleeves
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN00619
• Rear anchorage: in the rear suspension area
• Rear structure layout: X design
• Type: half roll cage, removable via connecting sleeves
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 4 bolting points on welded foot plates
• Weight: 71 kg (manufacturer’s figure)
• Finish: welded and unpainted, split into sections via connecting sleeves
• Included: welded structure, connecting sleeves, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. As the V2 has more parts than the V1, it pays to keep the fitting instructions close at hand for the first assembly. AST digitises the bodyshell with laser scanners and designs the cage in 3D so that it fits your car exactly.

AST’s most substantial half cage package for the E46 Coupé, and it can still be taken out of the car.

Why choose this Removable Half Cage E46 Coupé V2?

If you are on track often, you usually want more than a single main hoop with braces. The V2 adds that extra structure without taking the choice out of your hands: the connecting sleeves remain, so the cage can still be taken out of the car. That makes this the most versatile half cage version in the range.

Frequently asked questions

How does the V2 differ from the V1?

The removable E46 Coupé V2 half cage has a more extensive set of bars than the V1. Mounting at four bolting points and removal via connecting sleeves are the same on both.

Can I fit the cage and take it out of the car myself?

After the initial assembly, the cage can be dismantled via the connecting sleeves. However, have the four foot plates welded in by an experienced fabricator.

Is this roll cage homologated?

The manufacturer’s documentation does not list a homologation number for this item. The cage is intended for track and competition use; always check the regulations of your own motorsport organisation.

What if my car has a sunroof or headlining?

When ordering, please state whether your car has a sunroof and whether the headlining will stay in place, and AST will tailor the roll cage accordingly.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
