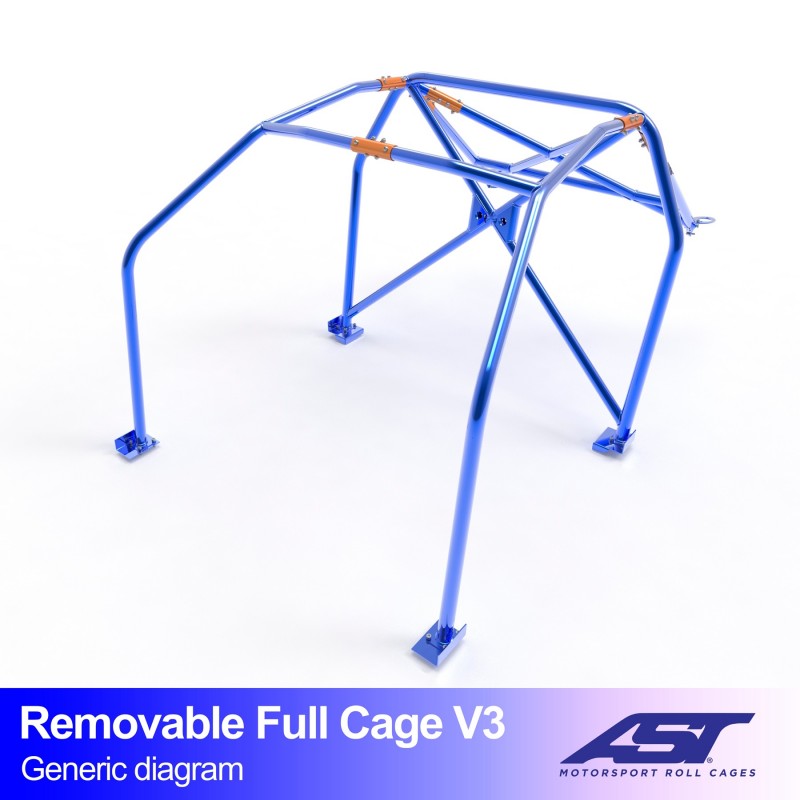

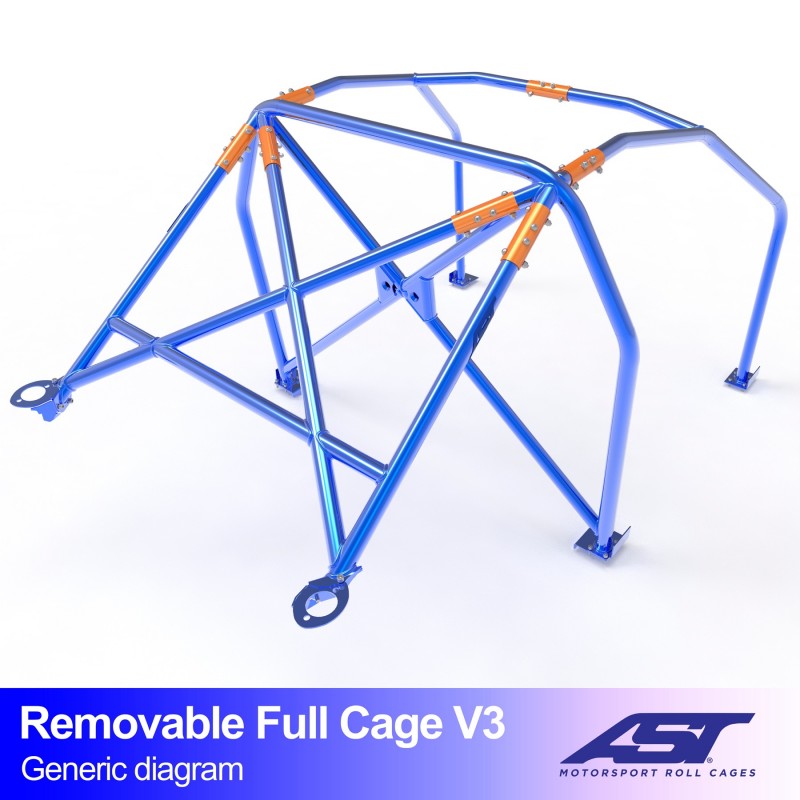

AST Removable Roll Cage BMW F20 V3

The AST Removable Roll Cage BMW F20 V3 is a full roll cage for the BMW 1 Series F20 with five-door hatchback bodywork. This Removable Roll Cage F20 V3 builds on the V2 and adds door bars, so that there is steel between you and the outside world at the sides as well.

The cage is designed and built by AST Roll Cages in Spain, for drivers who want side protection without permanently welding the cage into the car.

Key benefits

• Door bars: side tubing in the door opening, in addition to the tubing of the V2.
• Bars to the bulkhead: the cage is also tied into the front of the bodyshell.
• Six bolting points: on six 3 mm steel foot plates welded to the bodyshell.
• Removable: the connecting sleeves divide the structure into sections for fitting and removal.
• E355 steel: 45 mm main hoop, 40 mm for the rest of the structure.
• Custom-designed: the bodyshell was digitised with laser scanners before the cage was designed.
• Complete package: mounting hardware, reinforcement plates, documentation, fitting instructions and a sticker set.

Suitable for

BMW 1 Series F20, five-door hatchback

• BMW 1 Series F20 five-door hatchback, 2011 to 2019
• The last 1 Series with rear-wheel drive
• Type: removable full roll cage, version V3
• Not interchangeable with the three-door F21; AST designs a dedicated cage for each body style
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN06422
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the boot area
• Rear structure layout: X design
• Type: full roll cage, removable via connecting sleeves
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 6 bolting points on 6 welded foot plates
• Weight: 210 kg (manufacturer’s figure)
• Finish: welded and unpainted, in sections via connecting sleeves
• Included: welded structure, connecting sleeves, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. The foot plates are welded to the bodyshell and the cage is then bolted in place. The door bars make getting in noticeably different, so bear this in mind when choosing your seats and harnesses.

The side protection of a full cage, but one that can come out again.

Why choose this removable roll cage F20 V3?

In drifting and track work, a large share of the risks comes from the side. That is why the V3 adds door bars across the opening, in addition to the V2’s bars to the bulkhead. AST digitises the F20 bodyshell with laser scanners and designs the cage in 3D, so that the door bars fit neatly along the pillars. The cage is intended for track and competition use; always check the regulations of your own organiser.

Frequently asked questions

What is the difference from the V2?

The Removable Roll Cage F20 V3 has the same layout as the V2, plus door bars for side protection.

Can I still get in and out normally?

Door bars make the opening smaller. That is normal for track and drift use, but expect to get in differently than in a standard F20.

Does this cage fit the three-door F21?

No. AST makes a separate cage for each body style. This one is for the five-door F20; the three-door F21 has its own version, and the two are not interchangeable.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
