AST Weld-in Roll Cage BMW E30 Coupé V4 NASCAR door

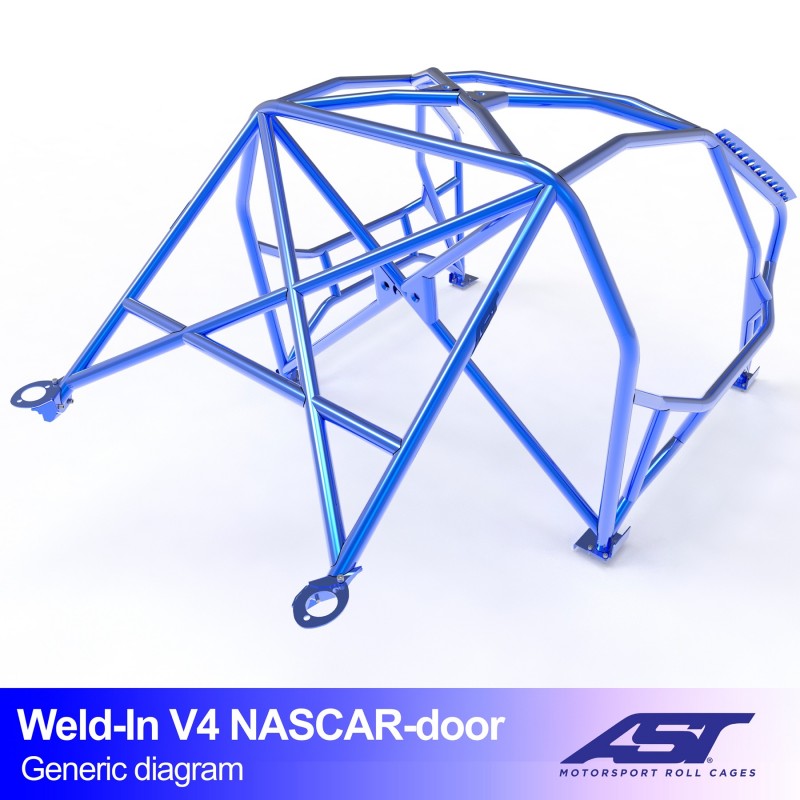

The AST Weld-in Roll Cage BMW E30 Coupé V4 NASCAR Door Bars is a full roll cage for the rear-wheel-drive BMW E30 3 Series with 2-door coupé bodywork. This Weld-in E30 Coupé V4 NASCAR has the V4 specification with an extra diagonal bar and harness bar, but with NASCAR door bars: instead of the standard door bar, there are several curved tubes in the door.

The cage is designed and built by AST Roll Cages in Spain, for drift drivers who expect a lot of side contact but still want to get in and out of the car easily.

Key benefits

• NASCAR door bars: several curved tubes in the door instead of a single straight door bar.
• More side protection: the curved tubes form a larger protective surface alongside the driver.
• Easier to get in and out: because the tubes curve outwards, the opening stays wider than with a straight door bar.
• V4 specification: including the extra diagonal bar and harness bar on top of the front bars and the main hoop.
• Eight welded mounting points: the structure is permanently welded to the bodyshell and works as a single unit with the body.
• E355 steel: main hoop with a diameter of 45 mm, other tubes with a diameter of 40 mm, 3 mm foot plates.
• Complete weld-in kit: gussets, reinforcement plates, mounting hardware, documentation, fitting instructions and a sticker set are included.

Suitable for

BMW E30 3 Series, 2-door coupé, rear-wheel drive (RWD)

• BMW E30 3 Series 2-door Coupé
• Only the rear-wheel-drive E30; a separate cage is available for the all-wheel-drive 325iX
• Type: weld-in roll cage, version V4 with NASCAR door bars
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN03549
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: X design
• Type: full roll cage, weld-in (permanent), NASCAR door bars
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 8 welded mounting points on the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. The NASCAR door bars extend into the door area, so the door card has to be modified or left out. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that it fits your car exactly. The welding is permanent and should be carried out by a specialist.

The NASCAR door bar version gives you more steel next to your hip and, at the same time, more room to get in than a standard door bar.

Why choose this Weld-in E30 Coupé V4 NASCAR roll cage?

In drifting, contact almost always happens on the side, and that is exactly where a single straight door bar is the least comfortable and the least effective. The curved NASCAR bars solve both issues at once: they cover a larger part of the door and still let you get in and out of the car fairly easily. Combined with the V4 specification, including the diagonal brace and harness bar, the result is a cage that works both on track and in the pits.

Frequently asked questions

What exactly are NASCAR door bars?

On the Weld-in E30 Coupé V4 NASCAR, several curved tubes are fitted in the door area instead of the standard straight door bar. This gives more side protection and more room to get in and out.

What exactly will I receive?

You receive an unpainted weld-in kit with all the cage tubes, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and a sticker set.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.

Delivery outside the European Union: different shipping costs may apply. Don’t worry: we will email you as soon as possible after your order and agree the shipping with you. You are not committed to anything without your consent.
