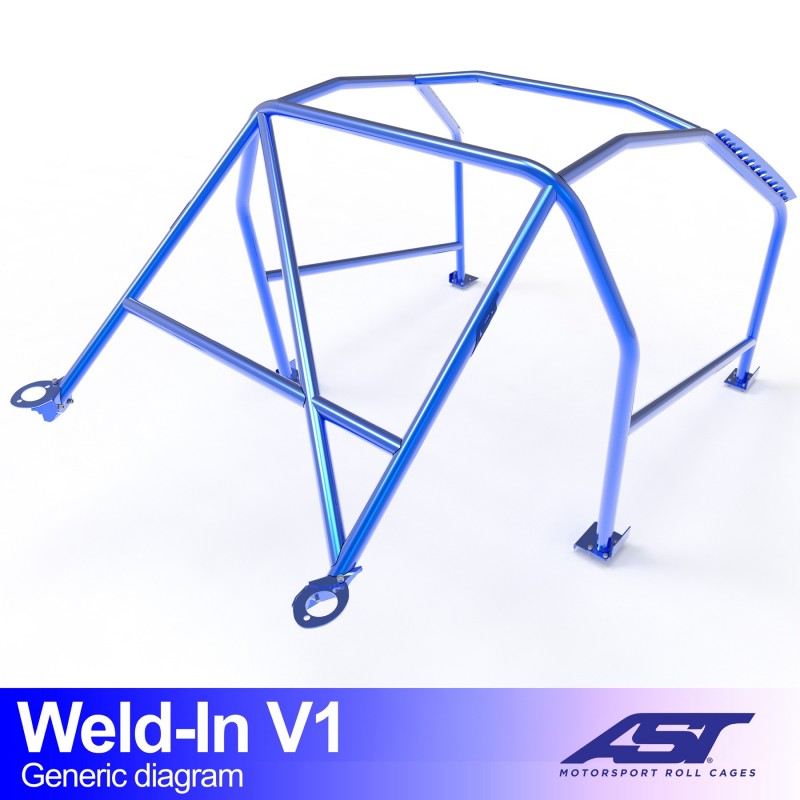

AST Weld-in Roll Cage BMW E34 Touring V1

The AST Weld-in Roll Cage BMW E34 Touring V1 is a full roll cage for the BMW E34 5 Series with 5-door Touring bodywork. This E34 Touring V1 weld-in cage forms the basis of the weld-in range: a main hoop with backstays that is permanently joined to the bodyshell at 8 welded mounting points.

The cage is designed and built by AST Roll Cages in Spain, for drivers who want to give their E34 Touring a fixed safety structure without going straight for the most extensive bar package.

Key benefits

• Eight welded mounting points spread the loads across the floor and pillars rather than a handful of bolts.
• E355 steel with a 45 mm main hoop and a 40 mm secondary structure.
• 3 mm reinforcement plates custom-designed for each car, so every weld lands on prepared panelwork.
• Manufacturer’s weight of 71 kg as quoted by AST for this version.
• Complete weld-in kit including gussets, bolts, washers and nuts.
• Supplied unpainted, so you decide on the surface preparation and colour yourself.
• Designed specifically for the Touring; a cage for the saloon will not fit this five-door body.

Suitable for

BMW E34 5 Series, 5-door Touring

• BMW E34 5 Series 5-door Touring
• Type: weld-in roll cage, version V1
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN04503
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Type: full roll cage, weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 8 welded mounting points on the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. Welding it in is a job for a specialist: the eight welded mounting points must be bare, rust-free metal and fully welded through before the car is put under load. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so it fits your car exactly.

The V1 gives the BMW E34 Touring a permanently welded-in safety structure in one go, without unnecessary bars.

Why choose this Weld-in E34 Touring V1 roll cage?

A welded-in cage is more rigid than a bolted cage, because the structure and the bodyshell become a single unit. The V1 keeps that principle as simple as possible: you get the main hoop with backstays and the associated reinforcements, and no further bars that you do not yet need at this level. That makes it a logical starting point for an E34 Touring that is just beginning its first season on track.

Frequently asked questions

Can I fit this cage myself?

Only if you are a certified welder yourself. The E34 Touring V1 weld-in cage is permanently welded to the bodyshell and cannot be removed afterwards, so the quality of the welding directly determines how safe the cage is.

What exactly is included in the package?

You receive the unpainted weld-in kit with gussets and reinforcement plates, the required bolts, washers and nuts, the documentation, fitting instructions and a sticker set.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
