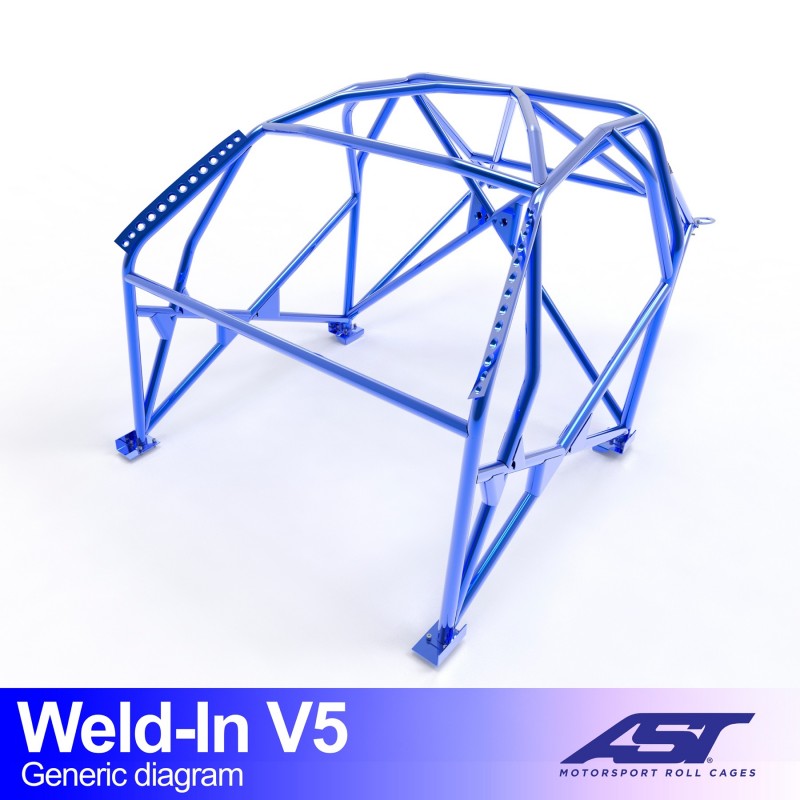

AST Weld-in Roll Cage BMW E36 Touring V5

The AST Weld-in Roll Cage BMW E36 Touring V5 is a full roll cage for the BMW E36 with 5-door Touring bodywork. This Weld-in Touring V5 is the most extensive version in the range, with the complete set of reinforcement bars, and is permanently welded in at 8 welded mounting points.

The cage is designed and built by AST Roll Cages in Spain, for drivers who refuse to make any compromise on rigidity or protection.

Key benefits

• Complete set of reinforcement bars, the most comprehensive layout in the range for this Touring.
• Everything from the V4 is included, expanded into the complete structure.
• Maximum rigidity because the front, centre and rear are linked together.
• Door bars and harness bars remain part of the overall structure.
• Eight welded mounting points for a permanent connection to the bodyshell.
• Reinforcement plates at every welded mounting point, included as standard in the weld-in kit.
• Supplied unpainted with mounting hardware, documentation and fitting instructions.

Suitable for

BMW E36, 5-door Touring

• BMW E36 5-door Touring
• Type: weld-in roll cage, version V5
• Drifting, track use and rallying

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN06826
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot and reinforcement plates: 3 mm steel, custom-designed for each car
• Mounting: 8 welded mounting points on the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. Allow for more workshop time than with the lighter versions, as more bars need to be fitted and welded. If you are looking for more welded mounting points, the multipoint version with 10 welded mounting points is the alternative.

The V5 is the top of the range: the complete set of reinforcement bars, welded in in one go.

Why choose this Weld-in Touring V5 roll cage?

Having a cage welded in twice is a waste of your time and your sheet metal. This Weld-in Touring V5 roll cage gives you the complete set of reinforcement bars straight away, so you never have to weld anything on later. To achieve this, AST captures the bodyshell with laser scanners and designs the cage in 3D, so that even this complete set fits the Touring without any improvisation. For a car that has to compete for years, that is the most economical choice in the long run.

Frequently asked questions

What makes the V5 the heaviest-duty version?

The Weld-in Touring V5 is supplied with the complete set of reinforcement bars, whereas the lower versions each contain only part of it.

Can I extend the V5 later on?

There is no need. The V5 is the most extensive version in the range and already includes the complete set of reinforcement bars.

How is the fit determined?

The bodyshell is digitised with laser scanners, after which the cage is custom-designed in 3D. As a result, the E355 steel tubes and the 3 mm steel reinforcement plates are precisely matched to the 5-door E36 Touring.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
