AST Weld-in Roll Cage BMW F82 Coupé V5 NASCAR door

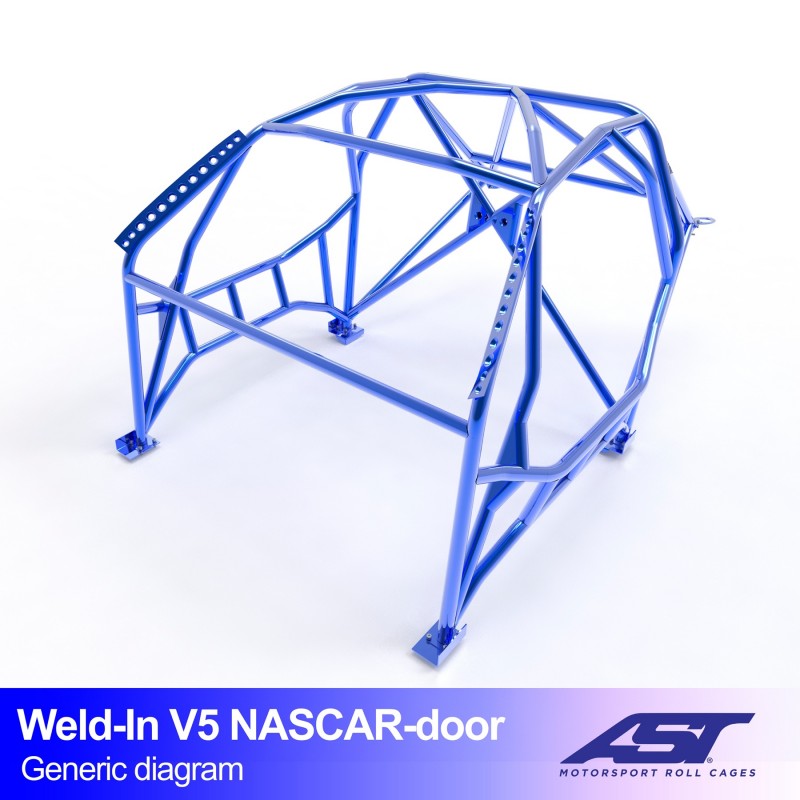

The AST Weld-in Roll Cage BMW F82 Coupé V5 NASCAR Door Bars is a full roll cage for the BMW F82 with 2-door coupé bodywork. This Weld-in F82 Coupé V5 NASCAR combines the complete set of bars with curved NASCAR tubes in the door and is welded to the bodyshell at eight points.

The cage is designed and built by AST Roll Cages in Spain as the top-of-the-range version for F82 drivers who want both the maximum bar package and the best side protection.

Key benefits

• Complete set of bars combined with NASCAR door bars, the most comprehensive specification for this model.

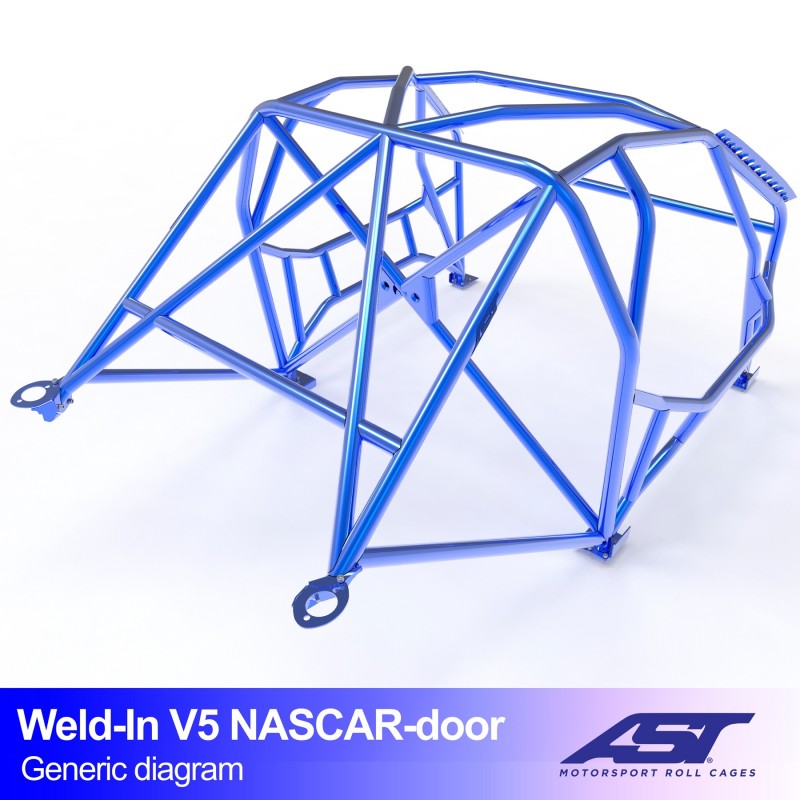

• Curved tubes in the door instead of the standard door bar, for more protection from the side.
• Easier entry, because the door tubes are curved outwards.
• Eight welded mounting points that turn the cage and bodyshell into a single rigid structure.
• E355 steel, 45 mm main hoop and 40 mm for the rest of the structure.
• Gussets and reinforcement plates in 3 mm steel, tailored to the F82.
• Unpainted weld-in kit, so you can finish the cage yourself after welding.

Suitable for

BMW F82, 2-door coupé

• BMW F82 2-door coupé, the M4 coupé built from 2014 to 2020
• Type: full roll cage, version V5 with NASCAR door bars, weld-in (permanent)
• Drifting, track use and rallying

AST does not offer a convertible version for the F82. The G82 is the successor to this model and has its own cage, which is not interchangeable.

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN05911
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, weld-in (permanent), with NASCAR door bars
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot and reinforcement plates: 3 mm steel, custom-designed for each car
• Mounting: 8 welded mounting points
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. This is the most labour-intensive package in the F82 range: there are more tubes to weld than on the lower versions, and the door tubes require extra preparation inside the door. Allow plenty of working hours for this.

More bars and more steel in the door; AST does not go any further for the F82 than the V5 with NASCAR door bars.

Why choose this Weld-in F82 Coupé V5 NASCAR roll cage?

AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that the extensive set of bars and the curved door tubes all fit within the tight dimensions of a coupé. For an F82 that spends the whole season on the drift track, this is the safest and most rigid build in the range.

Frequently asked questions

Why NASCAR door bars instead of regular door bars?

The Weld-in F82 Coupé V5 NASCAR has several curved tubes per door. They absorb more energy in a side impact and at the same time leave more room to get in and out than a single straight door bar.

Does this cage fit a convertible or a G82?

No. This cage is made only for the 2-door coupé version of the F82. AST does not offer a convertible version for this model, and its successor, the G82, has its own cage, which is not interchangeable.

Is this cage permitted in competition?

The cage is intended for track and competition use. Always check the regulations of your own organiser or federation before taking part in a competition.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
