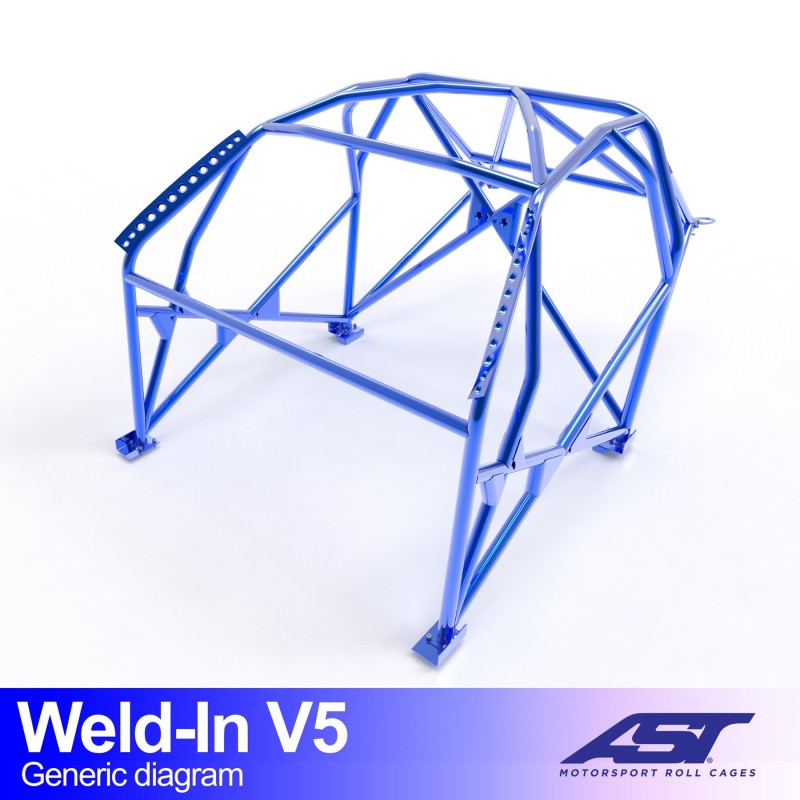

AST Weld-in Roll Cage BMW G82 Coupé V5

The AST Weld-in Roll Cage BMW G82 Coupé V5 is a full roll cage for the BMW 4 Series G82 with 2-door coupé bodywork. This Weld-in G82 Coupé V5 is the most comprehensive specification in the weld-in range and comes with the complete set of bars, permanently welded to the bodyshell at eight points.

The cage is designed and built by AST Roll Cages in Spain, for drivers who are building their G82 into a full competition car and do not want to make any compromises on the interior build.

Key benefits

• Complete set of bars: the most extensive package in the weld-in range for the G82.
• Eight welded mounting points: the cage is permanently welded to the bodyshell and so contributes directly to torsional rigidity.
• More than the V4: where the V4 stops at an extra diagonal brace and harness bar, the V5 goes further with the full set.
• Heavy-duty tubing: E355 steel, 45 mm main hoop and 40 mm for the rest of the structure.
• Gussets: the welds are spread over a larger area of the sheet metal.
• Moderate weight: 71 kg (manufacturer’s figure), despite the extensive set of bars.
• Custom-scanned: AST digitises the G82 bodyshell with laser scanners and designs the cage in 3D.

Suitable for

BMW 4 Series G82, 2-door coupé

• BMW 4 Series G82 Coupé, the current M4 coupé from 2021
• Type: full roll cage, version V5, weld-in and permanent
• Drifting, track use and rallying
• Please note: AST does not offer a convertible version of this cage for the G82
• Please note: the F82 is the predecessor and has its own cage, which is not interchangeable with this G82 version

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN05920
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, weld-in (permanent)
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Foot plates: 3 mm steel, custom-designed for each car
• Mounting: 8 welded mounting points on the bodyshell
• Weight: 71 kg (manufacturer’s figure)
• Finish: unpainted weld-in kit
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and sticker set

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. Because the V5 has the most tubes, a stripped-out interior and an experienced welder are especially important here. The G82 is a modern car with a lot of electronics and airbags, so plan the fitting carefully and work out in advance which trim, wiring and cover panels have to be removed. In addition, always check the regulations of your own sporting organisation.

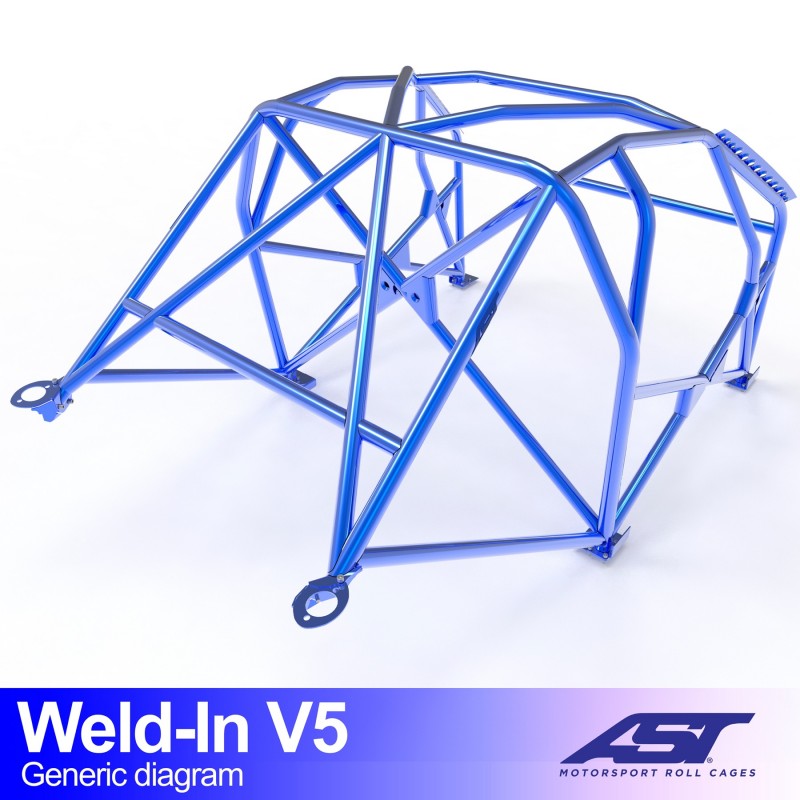

The complete set of bars for the G82, permanently welded in at eight points.

Why choose this weld-in G82 Coupé V5 roll cage?

If your car is used exclusively for competitions and track days, it pays to go straight for the highest level. The V5 gives you the full set of bars in one go, so you do not have to have anything welded in later. AST digitises the bodyshell with laser scanners and designs the cage in 3D, so that all the tubes connect in exactly the right place.

Frequently asked questions

What does the V5 offer compared with the V4?

The Weld-in G82 Coupé V5 comes with the complete set of bars, making it the most comprehensive specification; the V4 stops at door bars plus an extra diagonal brace and harness bar. Which of the two you need depends on the regulations you compete under.

Does this cage also fit an F82 or an open-top version?

No. This cage is exclusively for the 2-door coupé of the G82. The F82 is the predecessor and has its own cage from AST, which is not interchangeable; AST does not offer a convertible version for the G82.

Do I receive a complete package?

Yes. The weld-in kit comes with gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions and the sticker set. The tubes are unpainted.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days.
