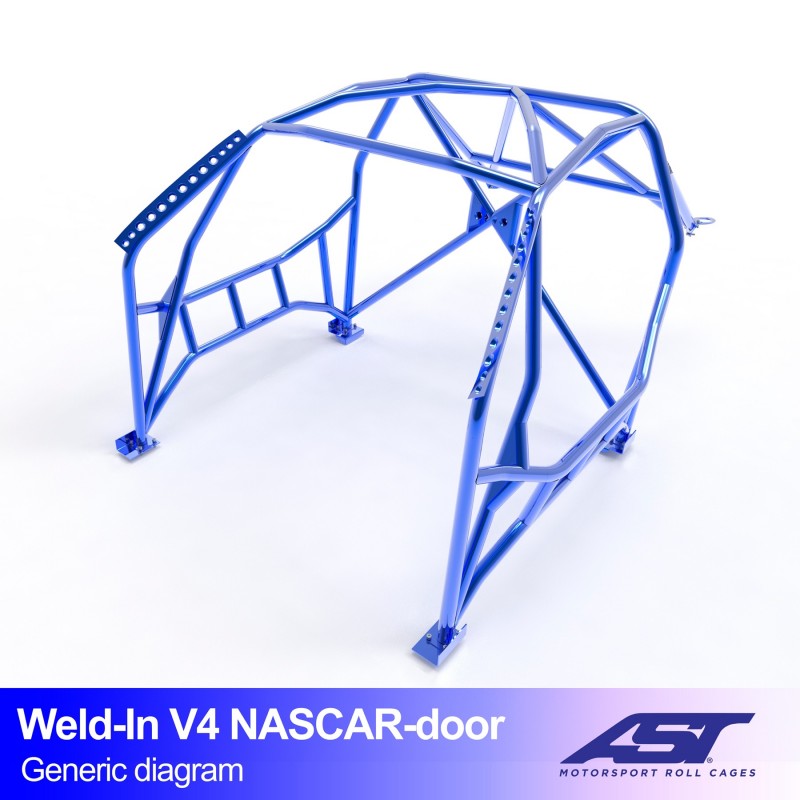

AST Weld-in Roll Cage Nissan Silvia PS13 Coupé V4 NASCAR door

The AST weld-in roll cage for the Nissan Silvia PS13 Coupé V4 with NASCAR door bars is a full roll cage that is welded into the two-door Nissan Silvia PS13 at eight points. This Weld-in PS13 V4 NASCAR differs from the regular V4 in the door: instead of a single straight door bar, it has several curved tubes, in what is known as the NASCAR design.

The curved tubes follow the shape of the door and fill the area next to the driver far better than a single bar. In side contact, the structure therefore has more material to absorb the impact, exactly at the height where it counts.

Key benefits

• NASCAR door bars: several curved tubes in the door instead of a single straight bar.
• Eight welded mounting points: the cage is permanently welded to the bodyshell.
• Full roll cage: extends into the front compartment.
• Extra diagonal brace and harness bar: the V4 bar layout gives you a fixed point for the shoulder straps.
• Designated by AST as a drift version: designed specifically for drift use.
• E355 steel: main hoop with a diameter of 45 mm, the rest of the structure 40 mm.
• Custom reinforcement plates: 3 mm thick steel, designed for each specific car rather than as a universal part.
• Exact fit: the bodyshell is digitised with laser scanners before the cage is designed in 3D.

Suitable for

Nissan Silvia PS13, 2-door coupé

• Nissan Silvia PS13 Coupé, also known as the 240SX coupé
• Type: full roll cage, weld-in, version V4 with NASCAR door bars
• Drifting, track use and competitions

Please note: AST designs separate cages for the two-door PS13 coupé and the three-door S13 hatchback. This one fits the coupé. This version is anchored in the rear suspension area and is made for a roof without a sunroof and without headlining.

Technical specifications

• Manufacturer: AST Roll Cages
• Manufacturer part number: CMBN03630
• Sunroof: for roofs without a sunroof
• Headlining: for roofs without headlining
• Rear anchorage: in the rear suspension area
• Rear structure layout: V design
• Type: full roll cage, permanently welded in, with NASCAR door bars
• Main hoop: E355 steel, 45 mm diameter
• Secondary structure: E355 steel, 40 mm diameter
• Reinforcement plates: 3 mm steel, custom-designed for each car
• Mounting: 8 welded mounting points on the bodyshell
• Weight: 210 kg (manufacturer’s figure)
• Finish: supplied as a weld-in kit, unpainted
• Included: weld-in kit, gussets, reinforcement plates, bolts, washers and nuts, documentation, fitting instructions, sticker set and a T-joint weld sample

Fitting and delivery

The cage is built to order; the standard delivery time is 15 to 35 working days. The kit is assembled in the car and welded to the bodyshell at eight points. The door cards come out and, with NASCAR tubes, cannot go back in unmodified. Check beforehand that you can still get in and out comfortably with your seat in the desired position. With a PS13 of this age, it is wise to inspect the bodywork first, as there is no point welding onto corroded floor panels. This cage is intended for track and competition use; check the regulations of your own motorsport governing body beforehand, as not every class allows NASCAR door bars.

Several curved tubes in the door: the best side protection you can get in a PS13 coupé.

Why choose this Weld-in PS13 V4 NASCAR?

In drifting, you run close to the wall and close to other cars. A single straight door bar then covers only a narrow strip. The NASCAR version fills the entire door area with curved tubes, which gives you noticeably more margin in side contact. Combined with the V4 bar layout, including the harness bar, you get a cage that is taken seriously in competition.

Frequently asked questions

What is the difference from the regular V4?

The door bars. The Weld-in PS13 V4 NASCAR has several curved tubes in the door instead of a single straight bar. The rest of the layout is identical; the weight goes from 52 to 58 kg.

Does this cage also fit the three-door S13 hatchback?

No. AST designs a separate range for the hatchback. This cage is made for the two-door coupé.

Can I still get in and out normally?

It is tighter. Expect to step over the tubes and for the original door card to be modified or left out.

Can this cage be removed later?

No, it is permanently welded to the bodyshell. For a removable solution, look at the half cage or the bolt-in range.

What is the delivery time?

The standard delivery time for this roll cage is 15 to 35 working days, as AST builds every cage to order.
