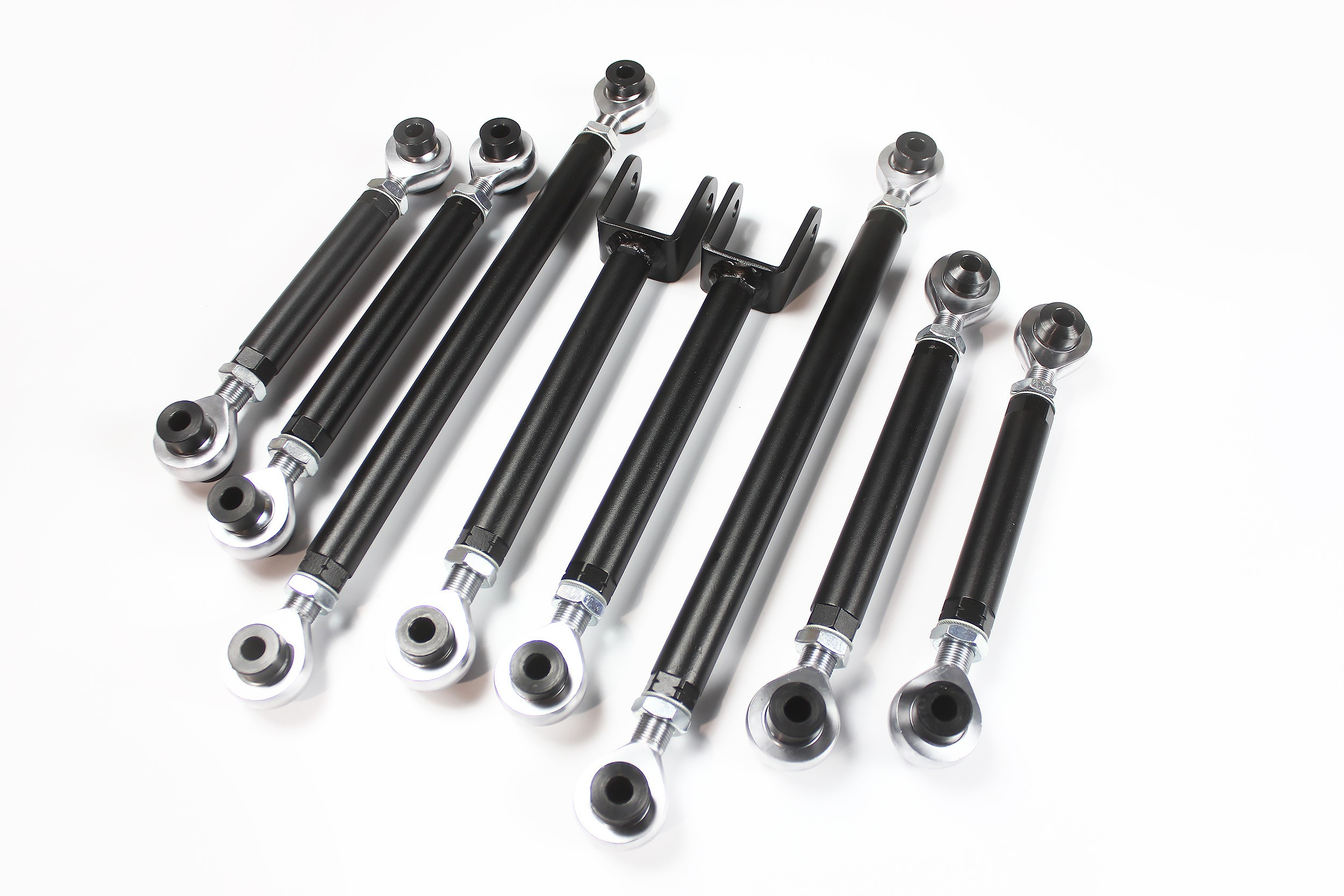

BMW F30 F31 F32 F22 Adjustable Camber Arms, Set of 8

These BMW F30 camber arms form a complete set of eight adjustable control arms for the rear axle of the 3 Series F30 to F34 and the 2 Series F22 and F23. You use them to set up the rear geometry the way you want, instead of being stuck with the factory dimensions. Especially on a lowered car, that is the difference between a tilted tyre and a tight setup.

The set is made for motorsport, where the suspension is an important part of the setup. Drifters and racers use it to get as much grip as possible on the driven axle, and in stance projects it helps large wheels fit without modifying the wheel arches.

Key benefits of these BMW F30 camber arms

• Complete set of 8 adjustable arms for the rear axle
• Adjustable rear camber, so you adapt the geometry to your own use
• More traction on the driven axle when drifting and racing
• Room for large-diameter wheels without modifying the wheel arches
• Heavy-duty chromoly uniballs, chosen after testing
• Arms made of thick-walled S355 tube, CNC-milled and CNC-turned
• Mounting points TIG-welded
• Black finish

Suitable for

BMW 2 Series and 3 Series of the F generation

• BMW 3 Series F30 saloon
• BMW 3 Series F31 Touring
• BMW F32, F33 and F34
• BMW 2 Series F22 and F23

Technical specifications

• Item number: 0152
• Application: adjustable rear axle control arms (camber and geometry)
• Contents: 8 arms
• Arm material: thick-walled S355 steel tube
• Joints: heavy-duty chromoly uniballs
• Machining: CNC-milled and CNC-turned, mounting points TIG-welded
• Finish: black
• Weight: 11.08 kg (set)

Installation and delivery

The BMW F30 camber arms replace the original rear axle control arms. This is a job for a well-equipped workshop: the car has to be safely on a lift, and ideally you swap the arms one by one so that you do not mix anything up. Before fitting, set all arms to the length of the original as a starting point.

After fitting the BMW F30 camber arms, a wheel alignment is mandatory. That is where you set the camber, toe and the rest of the geometry definitively. Only fully tighten the bolts when the car is standing on its wheels with its full weight, and check after the first few kilometres that the lock nuts are still tight.

Besides these BMW F30 camber arms, also take a look at the other adjustable camber arms in our range, including for older BMW models.

If you want to set up your rear axle yourself, fixed factory dimensions are no use to you.

Why choose these BMW F30 camber arms?

You get all eight arms in one go, so no hunting for individual parts. The combination of thick-walled S355 tube, CNC machining and TIG-welded mounts gives a solid base, and the chromoly uniballs were chosen after testing. For an F30 or F22 used on the circuit, at the drift track or as a stance car, this is a complete solution.

Frequently asked questions

How many arms are in the set?

Eight adjustable arms for the rear axle. With these BMW F30 camber arms you have everything in one box and do not need to hunt for individual arms.

Do they also fit an F31 Touring or an F22?

Yes. The BMW F30 camber arms are suitable for the F30, F31, F32, F33 and F34, and for the 2 Series F22 and F23.

Does the car need a wheel alignment after fitting?

Yes, always. Only during the alignment do you set the camber and toe properly.

Are these arms intended for road use?

These BMW F30 camber arms are mainly intended for motorsport, such as drifting and racing, and for stance projects with a heavily lowered car.

What material are the arms made of?

Thick-walled S355 steel tube, CNC-machined, with TIG-welded mounting points and chromoly uniballs.
