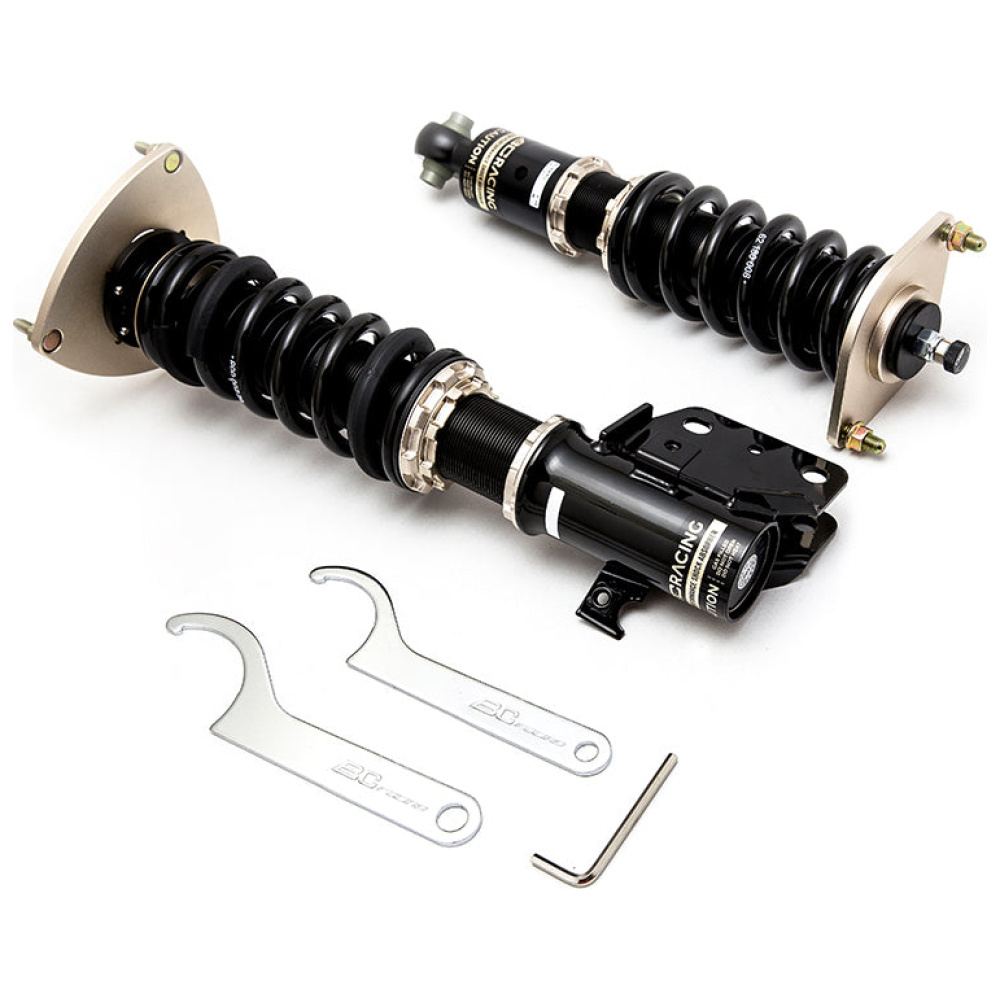

Nissan R33 Skyline GTS RWD (93-98) BC Racing DS coilover kit 8/5 kg/mm

The BC Racing DS coilover kit Skyline R33 (part number D-16-DS-DS) is a coilover kit adjustable in height and damping, also simply called a coilover, for the Nissan Skyline R33 GTS and GTS-t with rear-wheel drive (ECR33), Coupe and Sedan, model years 1993 to 1998. The spring rate is 8 kg/mm front and 5 kg/mm rear.

BC Racing supplies the DS for the rear-wheel drive R33 GTS in two versions; this one has rubber top mounts at the front and rubber or the original mounting at the rear. The DS series is aimed at the track: a monotube damper with a digressive piston, 30 clicks and a satin chrome damper body. A good choice for an R33 GTS-t that is driven both on the road and on track.

Key benefits

• Rubber top mounts at the front: rubber or the original mounting at the rear.
• Digressive piston: firm at low piston speeds (0 to 50 mm/s).
• 30-click damping adjustment: one adjustment for compression and rebound.
• Ride height independent of spring preload: you set the height via the damper body.
• Concave lower lock ring: the height stays in place.
• Spring rate 8/5 kg/mm: for the R33 GTS and GTS-t with rear-wheel drive.
• Satin chrome damper body: characteristic of the DS series.
• Rebuildable: the dampers can be rebuilt.

Suitable for

Nissan Skyline R33 GTS and GTS-t with rear-wheel drive (RWD, ECR33), Coupe and Sedan, model years 1993 to 1998. Not suitable for the GT-R R33 and the R33 GTS-4 with four-wheel drive (AWD).

• Track days with an R33 GTS-t
• Sporty road use
• A track-focused setup with rubber top mounts

Technical specifications

• Manufacturer: BC Racing
• Part number: D-16-DS-DS
• Series: DS, track-focused
• Version: for the rear-wheel drive (RWD) Skyline R33 GTS and GTS-t (ECR33), not for the GT-R R33 and the GTS-4 (AWD)
• Spring rate front/rear: 8/5 kg/mm
• Damper design: monotube with digressive piston (firmer damping at low piston speeds from 0 to 50 mm/s), satin chrome damper body
• Damping: 30 clicks, compression and rebound simultaneously
• Ride height: adjustable via the damper body, independent of the spring preload
• Top mounts: rubber top mounts at the front, rubber or the original mounting at the rear
• Contents: dampers and springs front and rear, lower mounts, top mounts where applicable, adjustment spanners and warranty card with serial number
• Warranty: 1 year on manufacturing defects; noise from the dampers during track use is not covered by the warranty

Fitting and delivery

This DS kit replaces the original dampers and springs of the rear-wheel drive R33 GTS and is made for this model. We recommend having it fitted by an experienced mechanic. After setting the ride height, a wheel alignment is part of the job, because camber and toe change. We deliver within 1 to 2 weeks as long as the manufacturer has stock. If the kit is temporarily sold out, you can still order and we will let you know when it is coming.

The BC Racing DS coilover kit D-16-DS-DS for the Skyline R33 GTS RWD has rubber top mounts at the front, a digressive piston and 30-click damping adjustment.

Why choose this DS coilover kit Skyline R33?

Anyone who regularly takes a rear-wheel drive R33 GTS-t on track benefits from the digressive piston of the DS: it damps more firmly even at slow body movements. If you would rather have a pillowball or camber plate at the front, there is the D-16-DS-DA. Because the dampers can be rebuilt, you have the kit rebuilt after intensive use.

BC Racing coilover kits for the Nissan Skyline R33 GTS (RWD)

Overview of the BC Racing series for the Nissan Skyline R33 GTS (RWD) supplied by Race4DriftParts, with the BC Racing part number. Spring rates in kg/mm, front/rear.

For the Nissan Skyline GT-R R33 and R34, BC Racing has separate kits. Their part numbers start with D-08.

Frequently asked questions

Can the BC Racing DS coilover kit for the Skyline R33 GTS be fitted to a four-wheel drive R33?

No. This kit is only for the R33 GTS and GTS-t with rear-wheel drive (ECR33), Coupe and Sedan. The GT-R R33 and the GTS-4 with four-wheel drive are excluded; for the GT-R R33, BC Racing has kits with part numbers starting with D-08.

Which BC Racing DS kit does the Skyline R33 GTS need: rubber or pillowball?

Both are made for the rear-wheel drive R33 GTS and GTS-t; it is a matter of choice. This DS coilover kit Skyline R33 (D-16-DS-DS) has rubber top mounts at the front, the D-16-DS-DA a pillowball or camber plate at the front. The damper and springs (8/5 kg/mm) are the same. With the pillowball version, a small modification to the upper mounting may be needed on some cars.

What is the difference between the BC Racing DS and ER for the Skyline R33 GTS?

The DS is 1-way adjustable, the ER 2-way with an external reservoir. On the DS you adjust compression and rebound together in 30 clicks; on the ER you set them independently of each other, each in 30 clicks. For the R33 GTS, the ER has springs of 9/7 kg/mm, the DS 8/5 kg/mm.

What is the delivery time of the BC Racing DS coilover kit for the Nissan Skyline R33 GTS?

The delivery time is 1 to 2 weeks as long as the manufacturer has stock. If BC Racing temporarily has the kit out of stock, you can still order it.
