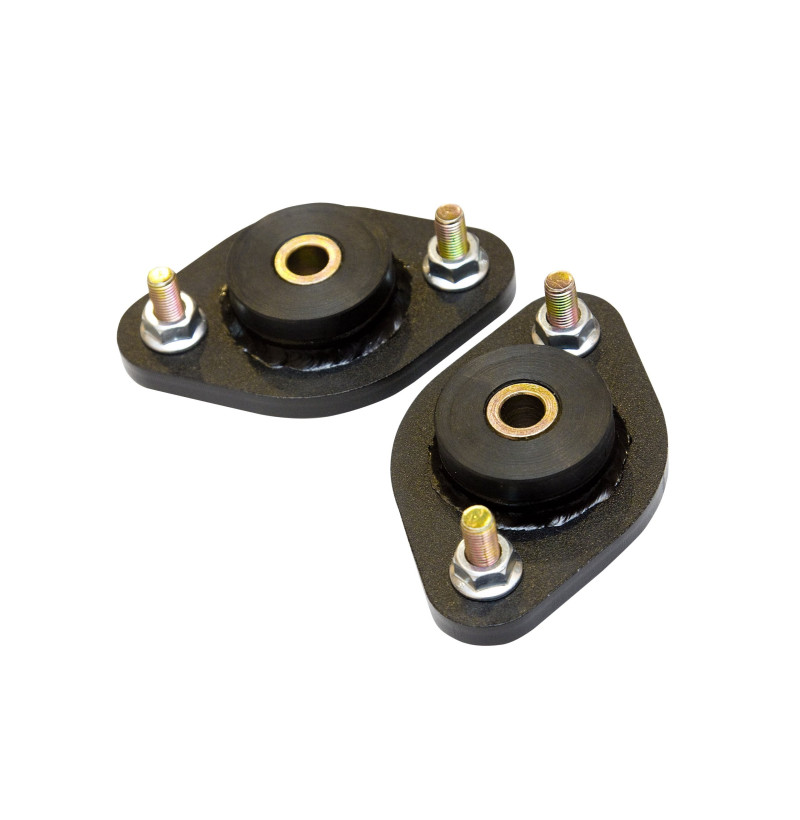

Reinforced Rear Top Mounts BMW E30 E36 E46 Z3 Z4

These rear camber plates are reinforced top mounts for the rear shock absorbers of the BMW E30, E36, E36 Compact, E46, Z3 and Z4 (E85/E86). They replace the original upper shock absorber rubbers, which sag and crack after years of use. You get a set of two, so left and right are done in one go.

The top mounts are intended for drift cars, stance projects and powerful road cars. Where an original rubber quickly wears out, these mounts with an 8 mm steel housing and a hard rubber bush last much longer.

Key benefits of these rear camber plates

• Set of 2: the price applies to the complete set
• Housing and mounting plate made of S355 steel, 8 mm thick
• Bush made of military-grade rubber with a hardness of 80 Shore A
• The rubber tolerates higher temperatures and wears less than polyurethane
• Longer service life than the original top mounts
• Sleeve and nuts are zinc-plated, the plate has a black finish
• Fits the E30, E36, E36 Compact, E46, Z3 and Z4

Suitable for

BMW 3 Series and Z models with the same rear shock absorber mount

• BMW 3 Series E30
• BMW 3 Series E36 and E36 Compact
• BMW 3 Series E46
• BMW Z3 (E36)
• BMW Z4 E85 and E86

Technical specifications

• Item number: 0048
• Application: upper mounting of the rear shock absorbers
• Housing and mounting plate: S355 steel, 8 mm
• Bush: rubber, 80 Shore A
• Sleeve and nuts: zinc-plated
• Colour: black with zinc-plated parts
• Contents: 2 top mounts
• Weight: 0.44 kg

Installation and delivery

The rear camber plates go in place of the original top mounts, on top of the rear shock absorber. On the E36 and E46 you work from the boot or behind the rear seat trim, depending on the body style. Keep the car on its wheels or support the rear axle, so that the shock absorber does not extend when you loosen the nuts.

A tip from our workshop: always fit the original washer under the top mount. This applies to every type of top mount and is often forgotten during fitting. Tighten all nuts to the values specified by BMW and check them after the first few kilometres.

Also take a look at the rest of our top mounts for BMW and other drift cars. If the rear shock towers on your E36 or E46 are already weak, combine the mounts with a reinforcement for the rear shock absorber mount.

A top mount that does not sag keeps the rear of your BMW predictable, even after a long day of drifting.

Why choose these rear camber plates?

Original rubbers are made for comfort and are quickly put under heavy load with stiffer suspension. These rear camber plates combine a thick steel plate with a hard rubber that copes better with heat and wear. This keeps the shock absorber firmly in place and you do not have to keep replacing the mounts.

Frequently asked questions

How many top mounts are in the set?

Two rear camber plates, one for the left and one for the right. The price applies to the complete set.

Are the rear camber plates made of polyurethane?

No. The bush is made of rubber with a hardness of 80 Shore A. This rubber tolerates higher temperatures and wears less than polyurethane.

Which BMW models do the rear camber plates fit?

The E30, E36, E36 Compact, E46, the Z3 and the Z4 E85 and E86.

Are they also suitable for a road car?

Yes. They are made for drift and stance, but also for powerful road cars where the original mounts wear too quickly.

Do I need to reuse the original washer?

Yes, always fit the original washer under the top mount. This is often forgotten during fitting.
