BMW E30 V8 Drift Engine Mounts for M60 M62 S62 SWAP

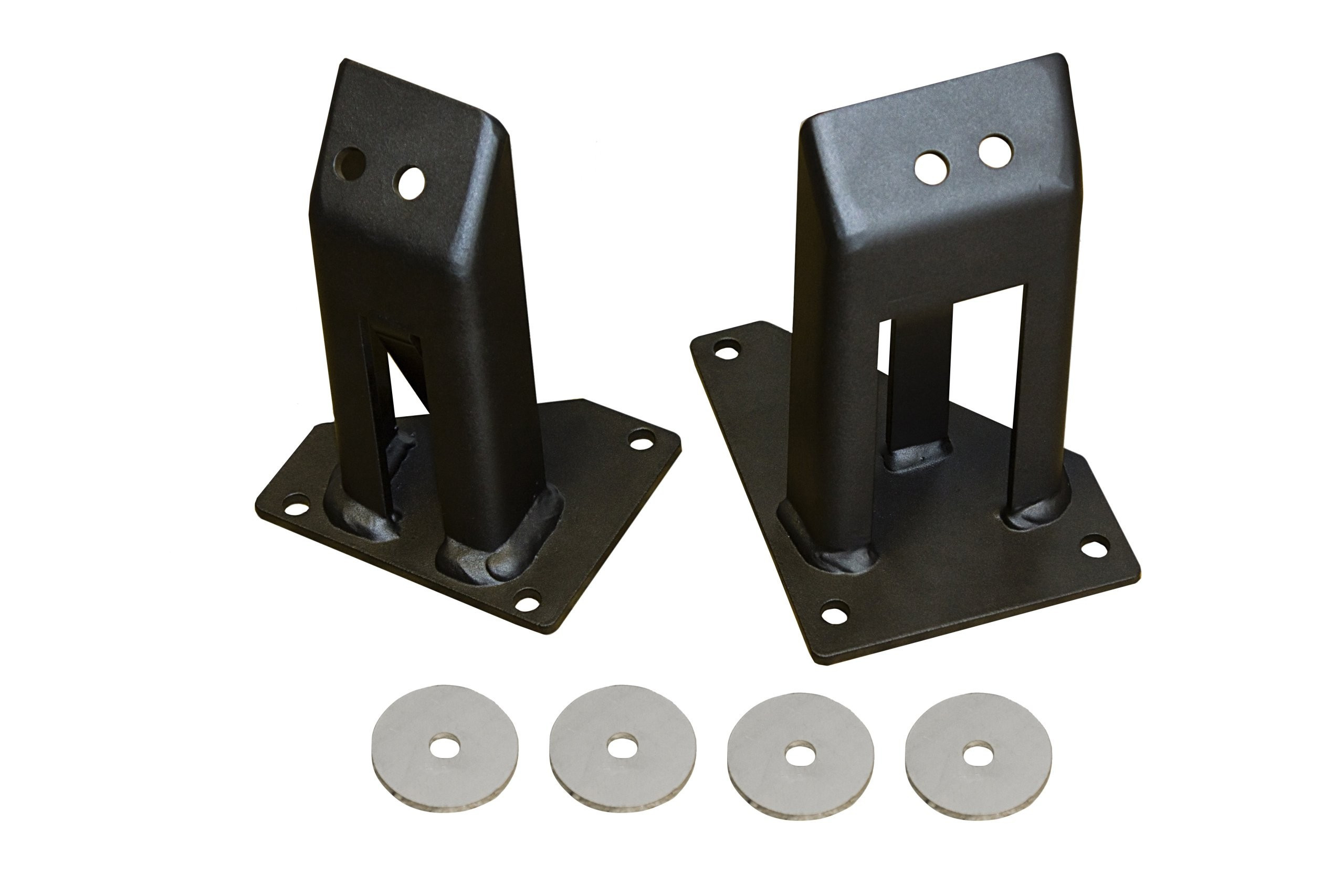

With these V8 drift engine mounts you can fit a BMW V8 of the M60, M62 or S62 type into a BMW E30. They are custom-made engine brackets that hold the V8 in place in the engine bay of the E30. The set consists of two mounts and spacers with which you adjust the height of the engine in the engine bay.

A V8 swap into an E30 is a popular project for drifters who want more torque in a light and agile chassis. The trickiest part is often getting the engine neatly and firmly at the right height. These mounts take most of that work off your hands.

Key benefits of these V8 drift engine mounts

• Made specifically for a V8 swap in the BMW E30
• Suitable for the BMW V8 engines M60, M62 and S62
• Set with 2 engine mounts and spacers to adjust the engine height
• Mounts made of 5 mm thick S355 steel
• CNC-cut and CNC-bent for an accurate shape
• Mounts are powder-coated
• Spacers made of stainless steel

Suitable for

BMW 3 Series E30 with a BMW V8 swap

• BMW E30 with M60 V8
• BMW E30 with M62 V8
• BMW E30 with S62 V8

Technical specifications

• Item number: 0051
• Application: engine mounts for a V8 swap (M60, M62, S62) in the BMW E30
• Contents: 2 engine mounts and spacers for height adjustment
• Mount material: S355 steel, 5 mm
• Production: CNC-cut and bent
• Mount finish: powder coating
• Spacer material: stainless steel
• Weight: 2.7 kg

Installation and delivery

The V8 drift engine mounts connect the V8 block to the engine mounting points of the E30. With the supplied spacers you determine how high the engine sits in the engine bay. This lets you create clearance for the bonnet, the steering, the oil sump and the exhaust manifolds.

An engine swap is a job for someone with experience. Test-fit the engine dry first, check the clearance all round and also look at the angle of the driveline towards the gearbox and propshaft. Only tighten everything for good once the position is right, and check the bolts after the first test drives.

You will find more parts for your conversion in our engine mounts for swaps category, and in the general engine mounts category.

A V8 in an E30 stands or falls with the engine mounts: that is where every good swap begins.

Why choose these V8 drift engine mounts?

Making mounts yourself takes a lot of time, measuring and fitting. This set is made specifically for the combination of an E30 with an M60, M62 or S62, from thick steel and neatly finished. With the spacers you can set the engine at the height you want without having to improvise. That leaves you more time for the rest of your swap.

Frequently asked questions

Which engines fit these mounts?

The BMW V8 engines M60, M62 and S62, in combination with a BMW E30.

What is in the set?

Two engine mounts and spacers with which you adjust the height of the engine.

What material are the V8 drift engine mounts made of?

The mounts are made of 5 mm thick S355 steel, CNC-cut, bent and powder-coated. The spacers are made of stainless steel.

Are the engine rubbers included?

The set consists of the two mounts and the spacers. Engine rubbers and bolts are not mentioned, so do not count on them, and feel free to ask us if you are unsure.

Do they fit a BMW other than the E30?

They are made for the E30. They are not listed for other models.
